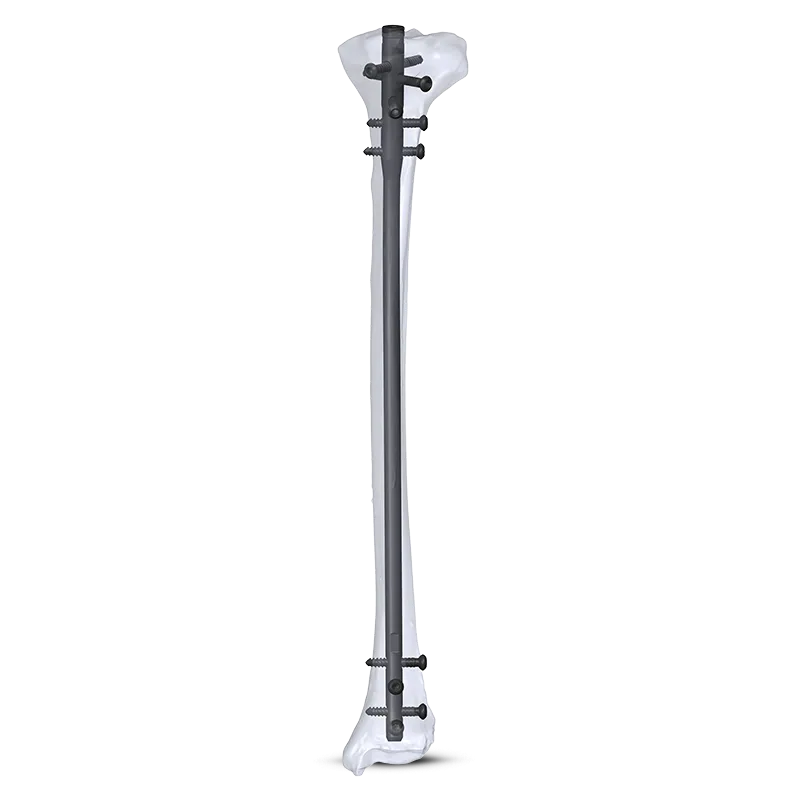

Aduera™ Expert Tibia Nailing System
The Expert Tibia Nail is an advanced intramedullary implant designed to stabilize fractures of the tibial shaft with precision and reliability. Inserted through a minimally invasive technique, the nail helps maintain proper bone alignment while supporting early mobility during recovery. Its multiple locking options allow surgeons to achieve stable fixation in different fracture patterns, including complex cases. Manufactured from high-quality medical-grade titanium, the trauma implant offers excellent strength, durability, and biocompatibility. Manufactured under Siora Surgical’s ISO 13485 certified quality management system, this orthopaedic implant system is known to contribute to better healing outcomes and patient comfort during the rehabilitation period.

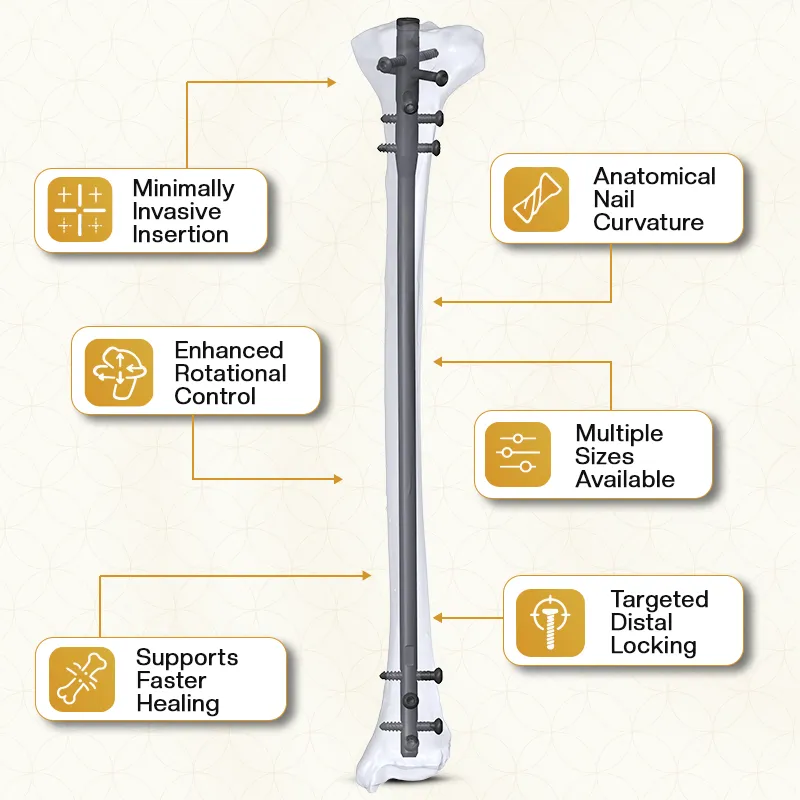

Made from High-strength, medical-grade titanium, the implant provides excellent biocompatibility and fatigue resistance, making it suitable for long-term internal fixation.
The expert tibia nail’s intramedullary position provides load sharing and excellent axial and rotational stability, helping in better alignment and early weight-bearing.
Multiple proximal and distal locking options enhance rotational control and fixation strength, allowing controlled dynamization when required.
Cannulated structure lets the surgeon insert the nail over a guide wire, facilitating both reamed and unreamed techniques, ensuring accurate placement.
Anatomical nail design helps in easier insertion and better fit within the tibial canal, assisting in correct bone alignment.
The system supports IM interlocking nailing techniques with minimal soft-tissue disruption and less operating time, enabling potentially faster clinical recovery.

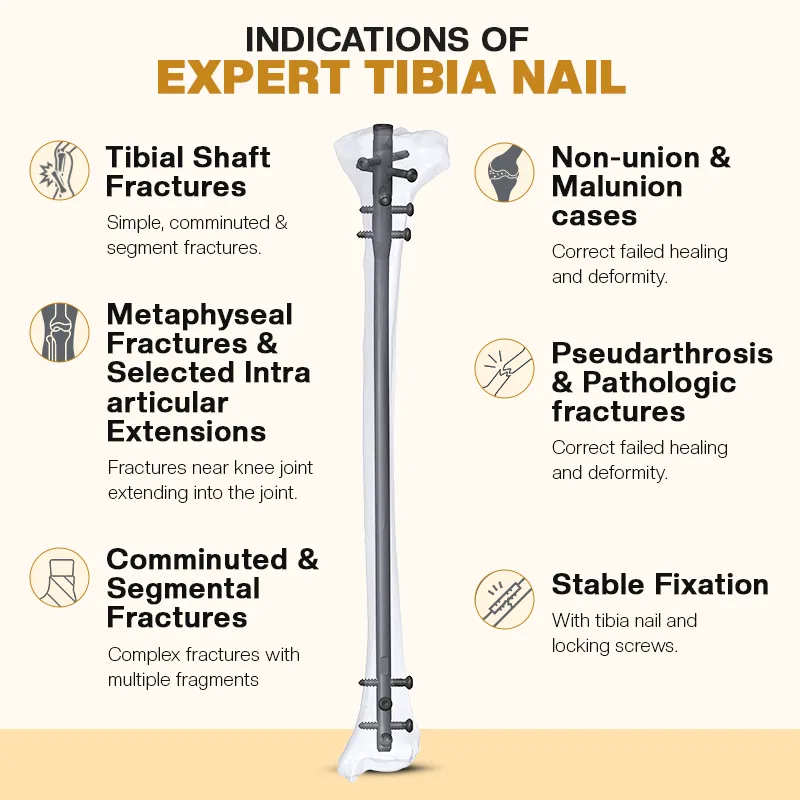

The Aduera Expert Tibia Nail finds application for the internal fixation of tibial fractures and related conditions. Here are the key indications for this IM nail:
Standard treatment for open and closed diaphyseal fractures.
Nail systems may be used in some proximal and distal shaft/metaphyseal patterns with adequate distal/proximal locking screws.
Effective fixation for multifragment and segmental fracture patterns requiring stability.
Provides internal fixation with stability in delayed union or malunion scenarios.
Offers relative stability and fixation in select pathological or compromised bone healing conditions.
Our ADEURA Expert Tibia Nail Systems are available in both left and right bone configurations, along with different lengths and diameters. Moreover, locking bolts are also designed precisely to ensure a snug construct, maintaining fracture alignment. This complete set of expert tibia nails and instruments comes in a specifically designed graphic box.
Our Expert Tibia Nail is available in different lengths and diameter sizes:
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
| Ti.096.08.255 – Ti.096.08.375 | 8.0 | 255 – 375 |
| Ti.096.09.255 – Ti.096.09.375 | 9.0 | 255 – 375 |
| Ti.096.10.255 – Ti.096.10.375 | 10.0 | 255 – 375 |
| Ti.096.11.255 – Ti.096.11.375 | 11.0 | 255 – 375 |
Our Range of Dual Core Locking Bolt Dia. 4.7mm – Self Tapping is available in various lengths:
| Cat. No. | Length (mm) |
| Ti.050.026 – Ti.050.080 | 26 – 80 |

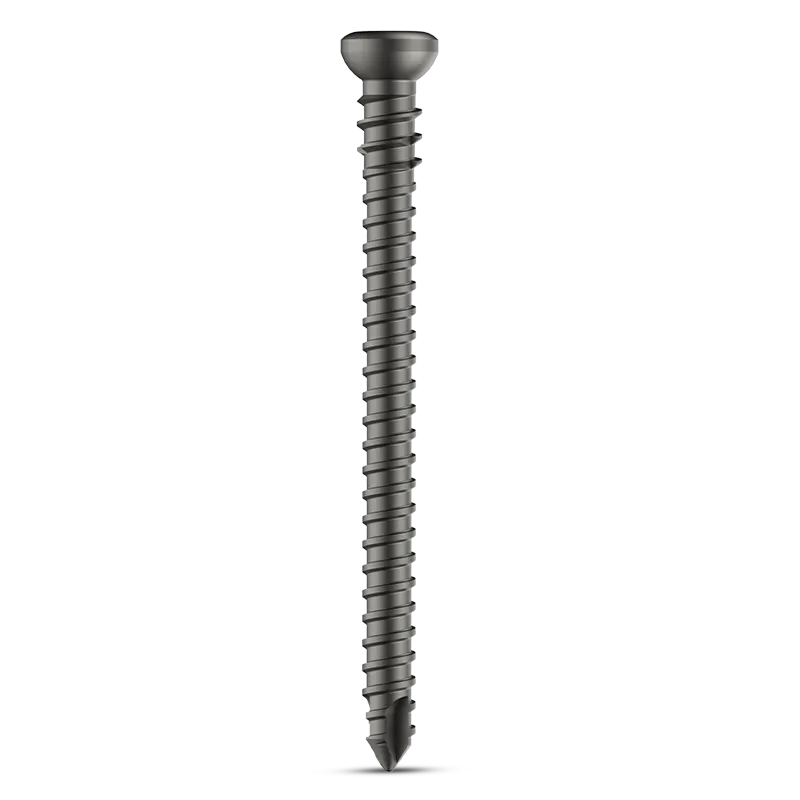

Locking Bolt Dia. 4.35mm – Self Tapping are available in multiple lengths to ensure a precise and secure fit:
| Cat. No. | Length (mm) |
| Ti.055.026 – Ti.055.080 | 26 – 80 |

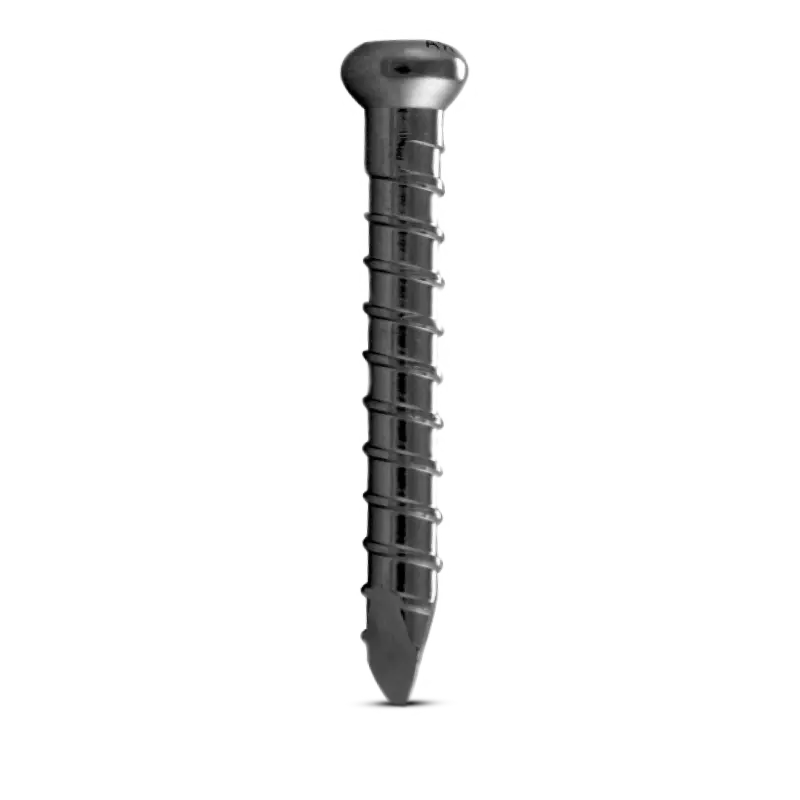

Locking Bolt Dia. 4.9mm – Self Tapping are available in multiple lengths to ensure a precise and secure fit:
| Cat. No. | Length (mm) |
| Ti.040.024 – Ti.040.085 | 24 – 85 |

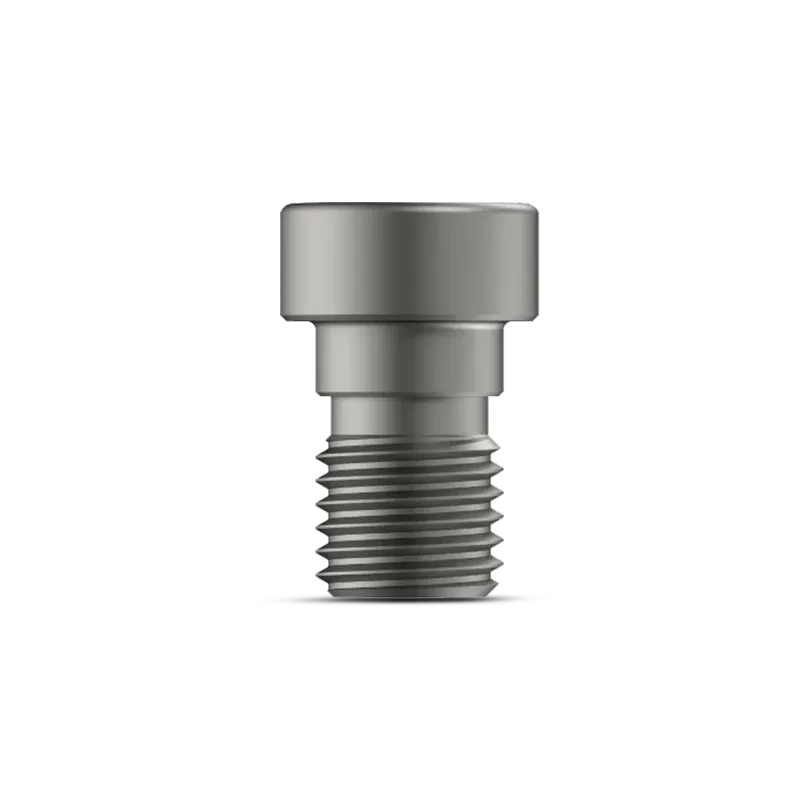

Here is our Titanium made End Cap for Expert Tibia Nail -Titanium:
| Cat. No. | Product Name |
| Ti.096.100 | End Cap for Expert Tibia Nail -Titanium |

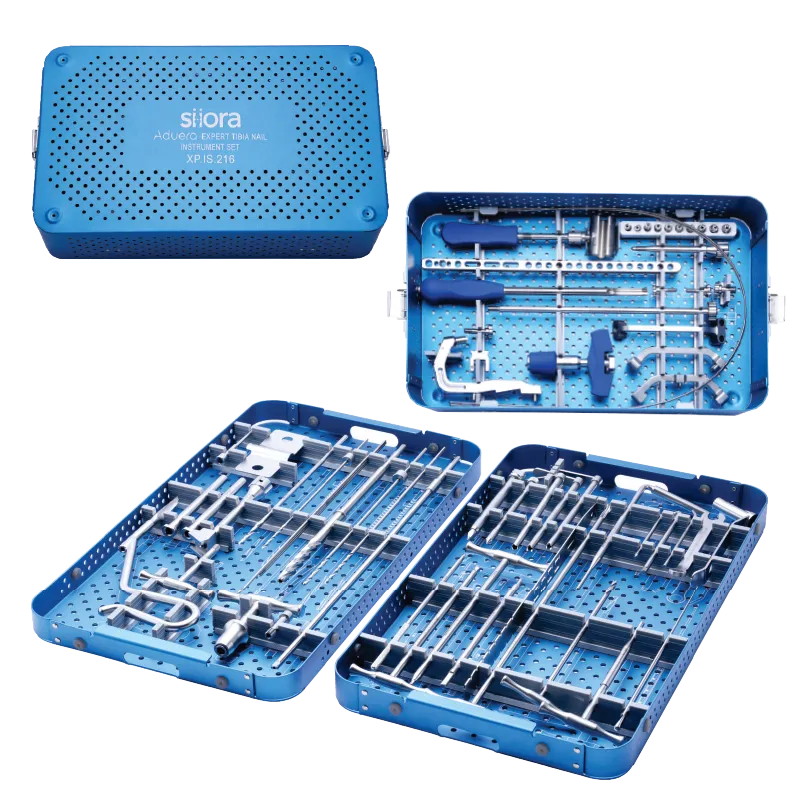

Our instrument set for Aduera Expert Tibia Nail Instrument Set:
| XP.IS.216 | Aduera™ Expert Tibia Nail Instrument Set | Units |
| XP.918.101 | Jig Handle for Expert Tibia Nail | 1 |
| XP.918.102 | Proximal Lateral Aiming Device, for Expert Tibia Nail | 1 |
| XP.918.103 | Proximal Anterior Aiming Device, for Expert Tibia Nail | 1 |
| XP.918.104 | Distal Aiming Device, for Expert Tibia Nail | 1 |
| XP.918.105 | Distal Lateral Aiming Device, for Expert Tibia Nail | 1 |
| XP.918.106 | Conical Bolt for Expert Tibia Nail | 1 |
| XP.918.107 | Hexagonal T- handle 6.5mm Tip | 1 |
| XP.918.108 | Connecting Bolt for Distal Aiming Device | 1 |
| XP.918.109 | Connecting Bolt for Proximal Aiming Device | 1 |
| XP.918.110 | Connecting Bolt for Distal Lateral Aiming Device | 1 |
| XP.918.111 | Protection Sleeve Dia. 10.0/8.0mm X Length 120mm | 1 |
| XP.918.112 | Trocar Pointer, Dia.8.0mm X Length 135mm | 1 |
| XP.918.113 | Protection Sleeve Dia. 11.0/8.5mm X Length 120mm | 1 |
| XP.918.114 | Drill Sleeve Dia. 8.5/3.2mm X Length 135mm | 1 |
| XP.918.115 | Trocar Pointer, Dia.3.2mm X Length 150mm | 1 |
| XP.918.116 | Threaded Guide Wire, Dia 3.0mm X Length 300mm | 1 |
| XP.918.117 | Cannulated Cutter 12mm/3.2mm | 1 |
| XP.918.118 | Cannulated Awl Curved 12.0mm /4.0mm | 1 |
| XP.918.119 | Protection Sleeve for 12.0mm Proximal Entry Reamer | 1 |
| XP.918.120 | Proximal Cannulated Entry Reamer 12.0mm | 1 |
| XP.918.121 | Drill Bit Plain Shank Dia. 3.2mm X 250mm Length | 1 |
| XP.918.123 | Drill Sleeve with Handle Dia. 8.0/4.0mm X Length 150mm | 1 |
| XP.918.124 | Drill Bit Plain Shank Dia. 4.0mm X Length 300mm | 1 |
| XP.918.126 | Drill Sleeve with Handle Dia. 8.0/5.2mm X Length 140mm | 1 |
| XP.918.127 | Drill Bit Plain Shank Dia. 5.2mm X Length 250mm | 1 |
| XP.918.128 | Drill Bit with T- handle Dia. 5.2mm X Length 210mm | 1 |
| XP.918.129 | Measuring Depth Gauge | 1 |
| XP.918.130 | T- Handle Pusher for Expert Tibia Nail | 1 |
| XP.918.131 | Pusher Block for Expert Tibia Nail | 1 |
| XP.918.132 | Quick Coupling T- Handle | 1 |
| XP.918.133 | Hexagonal Screw Driver with T- Handle 3.5mm Tip | 1 |
| XP.918.134 | Hexagonal Screw Driver Q.C. Shaft 3.5mm Tip, Length 200mm | 1 |
| XP.918.135 | Self Holding Screw Driver Shaft – 3.5mm Tip | 1 |
| XP.918.136 | T- Handle Canal Finder | 1 |
| XP.918.137 | Skin Protector for Expert Tibia Nail | 1 |
| XP.918.138 | Flexible Remer Shaft for Detachable Head | 1 |
| XP.918.139 | Detachable Reamer Head Dia. 7.5mm | 1 |
| XP.918.140 | Detachable Reamer Head Dia. 8.0mm | 1 |
| XP.918.141 | Detachable Reamer Head Dia. 8.5mm | 1 |
| XP.918.142 | Detachable Reamer Head Dia. 9.0mm | 1 |
| XP.918.143 | Detachable Reamer Head Dia. 9.5mm | 1 |
| XP.918.144 | Detachable Reamer Head Dia. 10.0mm | 1 |
| XP.918.145 | Detachable Reamer Head Dia. 10.5mm | 1 |
| XP.918.146 | Detachable Reamer Head Dia. 11.0mm | 1 |
| XP.918.147 | Detachable Reamer Head Dia. 11.5mm | 1 |
| XP.918.148 | Detachable Reamer Head Dia. 12.0mm | 1 |
| XP.918.149 | Detachable Reamer Head Case Dia. 7.5mm – 12mm | 1 |
| XP.918.150 | Pressure Bolt | 1 |
| XP.918.151 | 6.5mm Ball Tip Hex Screw Driver with T-Handle | 1 |
| XP.918.152 | Impacting Device for Expert Tibia Nail | 1 |
| XP.918.153 | Combined Spanner -11mm | 1 |
| XP.918.154 | Tommy Bar Dai. 4.0mm, Length 120mm | 1 |
| XP.918.155 | Extraction Rod for Expert Tibia Nail | 1 |
| XP.918.156 | Sliding Hammer for Expert Tibia Nail | 1 |
| XP.918.157 | Extraction Device for Expert Tibia Nail | 1 |
| XP.918.158 | Graphic Ruler for Expert Tibia Nail | 1 |
| XP.918.159 | Allenkey – 3.0mm Tip | 1 |
| XP.918.160 | Allenkey – 5.0mm Tip | 1 |
| XP.918.161 | T Handle Guide Wire Gripper | 1 |
| XP.918.162 | Right Angle Positioning Trocar for Expert Tibia Nail | 1 |
| XP.918.163 | Guide Wire with Stopper, Dia. 2.5mm X Length 1000mm | 2 |
| XP.400.188 | Graphic Aluminium Instrument Box for Expert Tibia Nail | 1 |
Designed with fixed reamer heads, offering consistency, stability, and low detachment risk, especially during high-torque procedures.
| Cat No. IS.039 | Flexible Reamer Set – Fixed Head – S.S. | Units |
| XP.712.280 | Flexible Reamer Shaft Fixed Head 8.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.285 | Flexible Reamer Shaft Fixed Head 8.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.290 | Flexible Reamer Shaft Fixed Head 9.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.295 | Flexible Reamer Shaft Fixed Head 9.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.300 | Flexible Reamer Shaft Fixed Head 10.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.305 | Flexible Reamer Shaft Fixed Head 10.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.310 | Flexible Reamer Shaft Fixed Head 11.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.315 | Flexible Reamer Shaft Fixed Head 11.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.320 | Flexible Reamer Shaft Fixed Head 12.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.325 | Flexible Reamer Shaft Fixed Head 12.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.330 | Flexible Reamer Shaft Fixed Head 13.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.335 | Flexible Reamer Shaft Fixed Head 13.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| 400.083 | Graphic Aluminum Box For Fixed Head Flexible Reamer | 1 |
These reamer sets feature a detachable head, allowing surgeons the flexibility to quickly change reamer sizes as required during complex surgeries.
| Cat No. XP. IS.176 | Description | Units |
| XP.712.001 | Guide Wire With Stopper Size : 2.5mm Dia. X 100cm Length | 1 |
| XP.712.010 | Flexible Reamer Shaft for Detachable Head | 2 |
| XP.712.013 | Detachable Reamer Head 7.5mm | 1 |
| XP.712.014 | Detachable Reamer Head 8.0mm | 1 |
| XP.712.015 | Detachable Reamer Head 8.5mm | 1 |
| XP.712.016 | Detachable Reamer Head 9.0mm | 1 |
| XP.712.017 | Detachable Reamer Head 9.5mm | 1 |
| XP.712.018 | Detachable Reamer Head 10.0mm | 1 |
| XP.712.019 | Detachable Reamer Head 10.5mm | 1 |
| XP.712.020 | Detachable Reamer Head 11.0mm | 1 |
| XP.712.021 | Detachable Reamer Head 11.5mm | 1 |
| XP.712.022 | Detachable Reamer Head 12.0mm | 1 |
| XP.712.023 | Detachable Reamer Head 12.5mm | 1 |
| XP.712.024 | Detachable Reamer Head 13.0mm | 1 |
| XP.400.157 | Aluminium Sterilization Box for Flexible Reamers Shaft & Detachable Heads | 1 |
A tibia interlocking nail is an intramedullary implant used to stabilize tibial fractures. Inserted into the bone canal, it is secured with locking screws for strong and reliable fixation.
Our tibia intramedullary nails are manufactured from high-quality medical-grade titanium alloy, ensuring excellent strength, durability, corrosion resistance, and long-term biocompatibility.
ADEURA tibial intramedullary nails are available in multiple diameters (8mm – 10mm) and lengths (255mm – 375mm) to suit different patient anatomies and fracture types, helping surgeons choose the most appropriate implant.
Yes, we provide a complete Tibia Interlocking Nail Instrument Set, including targeting devices, drill sleeves, reamers, and screwdrivers for efficient surgical procedures.
Yes, we offer OEM and private labeling services for tibia nails, allowing distributors and medical brands to market the implants under their own brand identity.
Packaging and labelling operations at our production facility are performed in ISO Class 7 cleanroom environments in accordance with ISO 14644, ensuring implants remain protected during storage, handling, and long-distance transportation.
We export globally to distributors, hospitals, and orthopedic suppliers across Asia, Africa, Latin America, and other international markets.
