Titanium Elastic Nailing System

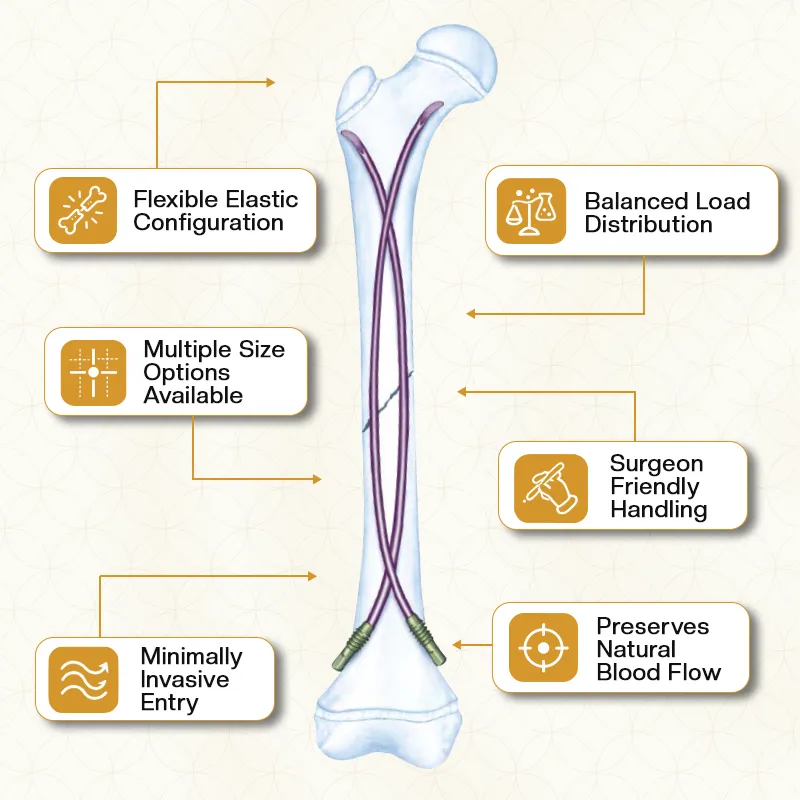

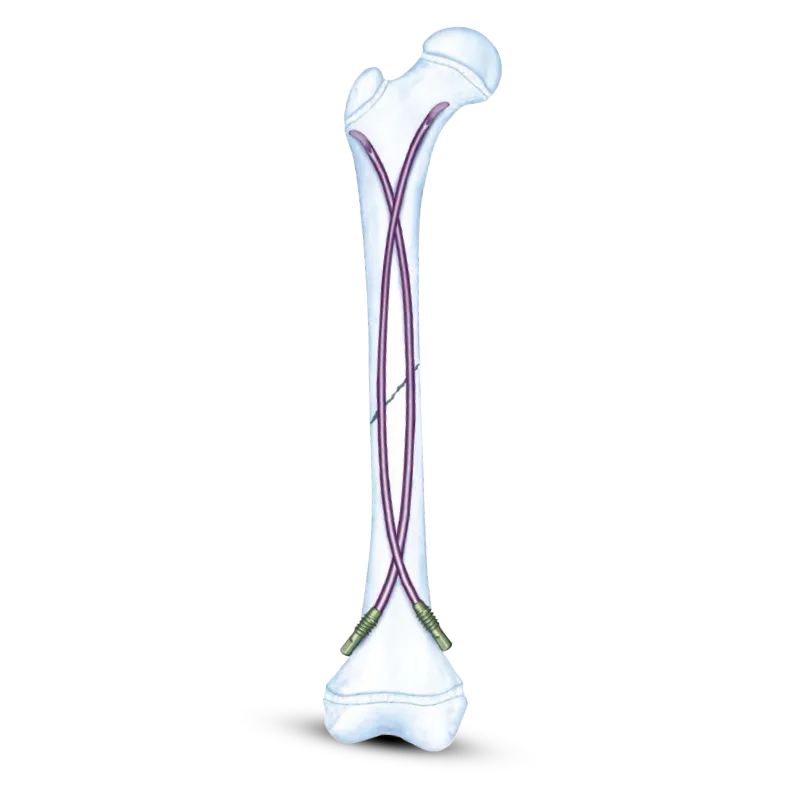

The Titanium Elastic Nailing System (TENS) is a minimally invasive orthopedic technique used for stabilizing long bone fractures, especially in pediatric patients. It involves inserting flexible titanium nails into the medullary canal to provide internal support while preserving the natural biology of the bone. Made from high-strength titanium alloy, these TENS nails offer an ideal balance of elasticity and stability, allowing controlled micromotion at the fracture site to promote faster healing and callus formation.
Typically used for fractures of the femur, tibia, humerus, and forearm, the elastic nailing system ensures proper alignment with minimal soft tissue damage. Its load-sharing design, ease of insertion, and quicker recovery make this TENS nailing system a preferred choice for treating simple diaphyseal fractures.
Manufactured using high-grade titanium alloy for superior strength, durability, biocompatibility, and corrosion resistance.
The flexible nature of nails allows controlled micromotion at the fracture site, helping stimulate natural bone healing and promote faster callus formation.
Requires small incisions, reducing soft tissue damage during surgery. This leads to less pain, minimal scarring, and quicker recovery for patients.
The technique avoids disturbing the periosteum and fracture hematoma. As a result, the natural healing environment of the bone is maintained.
Available in multiple diameters to suit different bone anatomies, making it ideal for treating a wide range of fractures.
Designed for smooth insertion and simple removal procedures. It reduces operative time and enhances overall surgical efficiency.

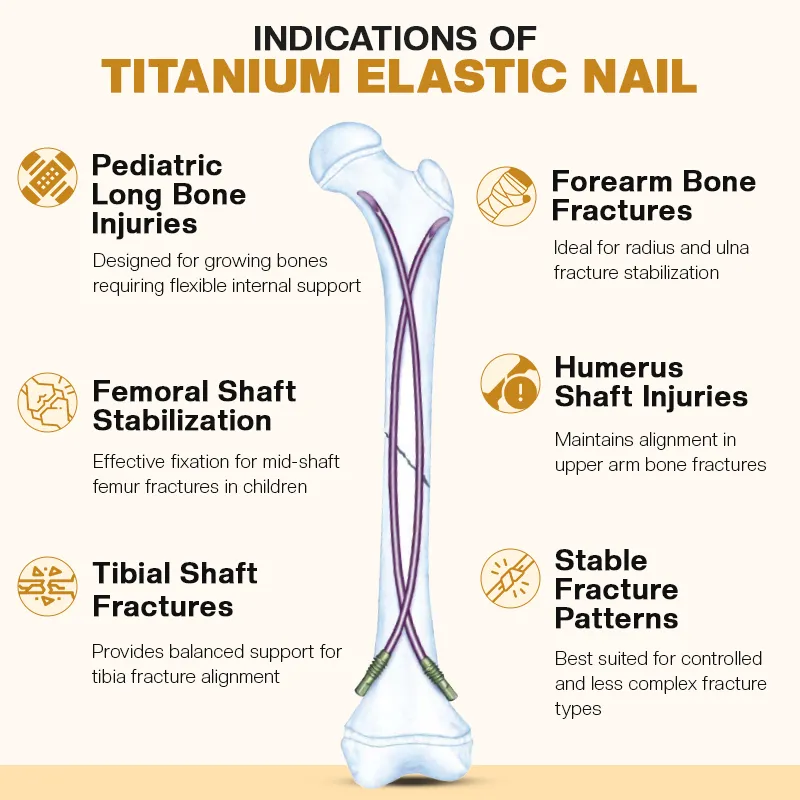

Widely used in children due to their growing bones and their capacity to heal. Provides stable fixation without affecting growth plates.
Suitable for mid-shaft femur fractures in pediatric patients. Ensures proper alignment and early mobilization.
Effective for stabilizing simple tibial fractures. Supports weight-bearing recovery while maintaining alignment.
Used in fractures of the radius and ulna bones. Helps restore rotational stability and functional movement.
Applicable in selected cases of humerus fractures. Provides internal support with minimal surgical trauma.
Ideal for transverse or short oblique fractures, the TENS nailing system ensures reliable fixation with optimal healing outcomes.

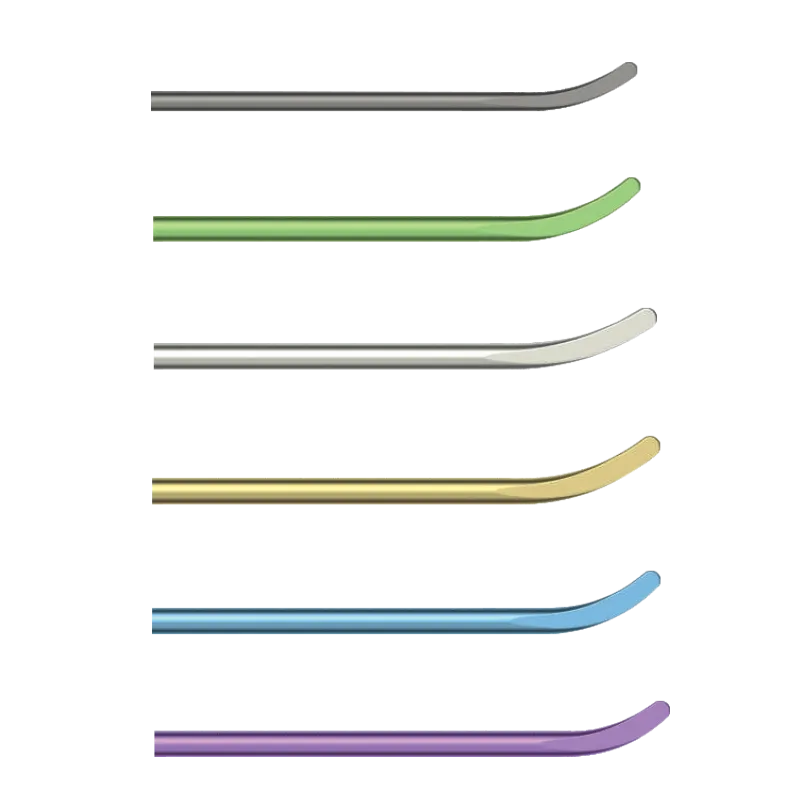

We manufacture titanium elastic nails in different diameters (1.5mm to 4.0mm) to suit varying patient anatomies. This TENS nailing system also features end caps and a surgeon-friendly instrument set for better surgical precision and improved patient outcomes.
Following Size of Titanium Elastic Nail is available in Titanium Material:
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
| Ti.008.144 – Ti.013.144 | 1.5 – 4.0 | 440 |

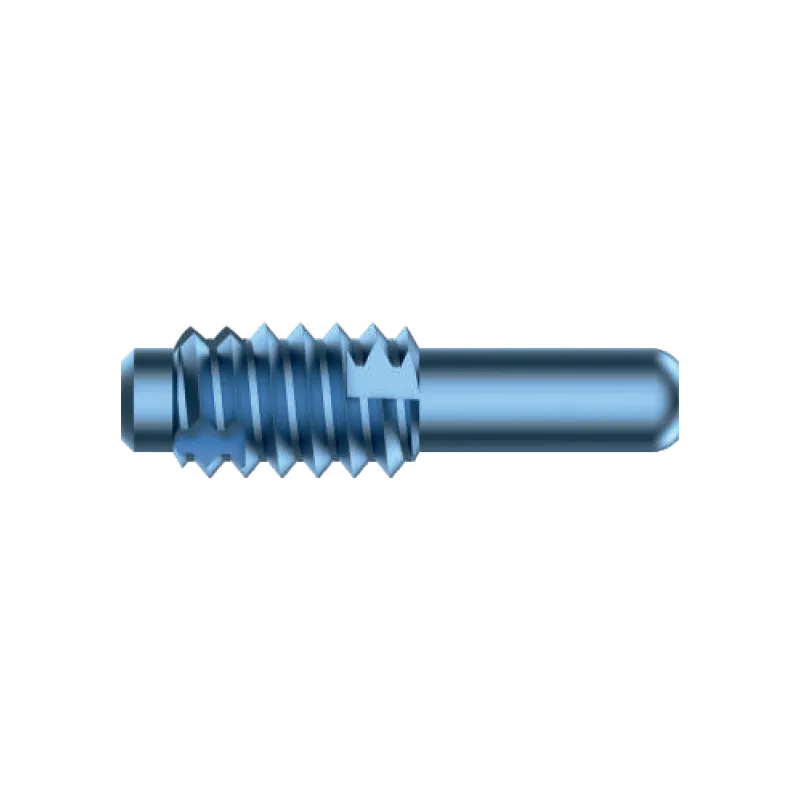

Following Size of End Cap for Titanium Elastic Nail is available in Titanium Material:
| Cat No. (Titanium) | Dia (mm) |
| Ti.009.020 – Ti.013.040 | 2.0 – 4.0 |

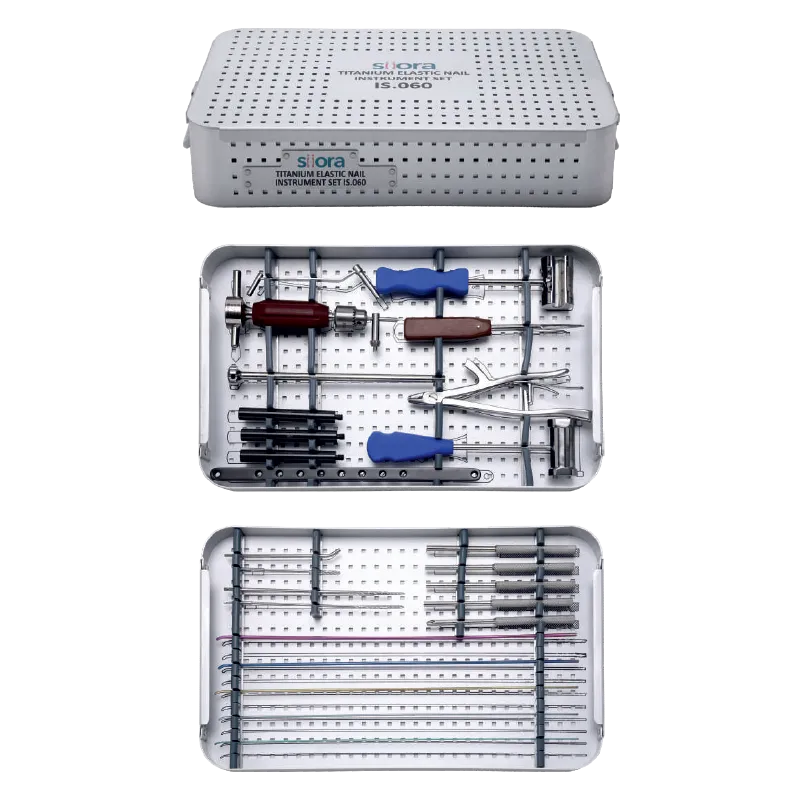

| Cat. No. IS.060 | Graphic Instrument Set for Titanium Elastic Nails | Units |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7 MM X 125 MM Long | 1 |
| 260.325 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2 MM X 200 MM Length | 1 |
| 260.475 | Drill Bit – S.S. – Quick Coupling End Dia. 4.5 MM X 200 MM Length | 1 |
| 307.070 | Drill & Tap Sleeve Combined – 3.2/4.5 MM | 1 |
| 368.004 | Bone Hammer 500gms. – Silicon Handle | 1 |
| 713.001 | Inserter for Elastic Nail with Stainless Steel Chuck & key (6.0mm) | 1 |
| 713.004 | Hammer Guide | 1 |
| 713.006 | Awl for Elastic Nail | 1 |
| 713.007 | Detachable Slide Hammer 400 gms. – Silicon Handle | 1 |
| 713.010 | F – Tool | 1 |
| 713.012 | Locking Plier for Elastic Nail | 1 |
| 713.014 | Pin Wrench | 1 |
| 713.016 | Beveled Tamp | 1 |
| 713.018 | Standard Tamp 2.5 MM | 1 |
| 713.020 | Standard Tamp 3.0 MM | 1 |
| 713.022 | Standard Tamp 3.5 MM | 1 |
| 713.024 | Standard Tamp 4.0 MM | 1 |
| 400.079 | Graphic Aluminum Instrument Box with Two Tray | 1 |
Designed with fixed reamer heads, offering consistency, stability, and low detachment risk, especially during high-torque procedures.
| Cat No. IS.039 | Flexible Reamer Set – Fixed Head – S.S. | Units |
| XP.712.280 | Flexible Reamer Shaft Fixed Head 8.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.285 | Flexible Reamer Shaft Fixed Head 8.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.290 | Flexible Reamer Shaft Fixed Head 9.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.295 | Flexible Reamer Shaft Fixed Head 9.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.300 | Flexible Reamer Shaft Fixed Head 10.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.305 | Flexible Reamer Shaft Fixed Head 10.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.310 | Flexible Reamer Shaft Fixed Head 11.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.315 | Flexible Reamer Shaft Fixed Head 11.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.320 | Flexible Reamer Shaft Fixed Head 12.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.325 | Flexible Reamer Shaft Fixed Head 12.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.330 | Flexible Reamer Shaft Fixed Head 13.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.335 | Flexible Reamer Shaft Fixed Head 13.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| 400.083 | Graphic Aluminum Box For Fixed Head Flexible Reamer | 1 |
These reamer sets feature a detachable head, allowing surgeons the flexibility to quickly change reamer sizes as required during complex surgeries.
| Cat No. XP. IS.176 | Description | Units |
| XP.712.001 | Guide Wire With Stopper Size : 2.5mm Dia. X 100cm Length | 1 |
| XP.712.010 | Flexible Reamer Shaft for Detachable Head | 2 |
| XP.712.013 | Detachable Reamer Head 7.5mm | 1 |
| XP.712.014 | Detachable Reamer Head 8.0mm | 1 |
| XP.712.015 | Detachable Reamer Head 8.5mm | 1 |
| XP.712.016 | Detachable Reamer Head 9.0mm | 1 |
| XP.712.017 | Detachable Reamer Head 9.5mm | 1 |
| XP.712.018 | Detachable Reamer Head 10.0mm | 1 |
| XP.712.019 | Detachable Reamer Head 10.5mm | 1 |
| XP.712.020 | Detachable Reamer Head 11.0mm | 1 |
| XP.712.021 | Detachable Reamer Head 11.5mm | 1 |
| XP.712.022 | Detachable Reamer Head 12.0mm | 1 |
| XP.712.023 | Detachable Reamer Head 12.5mm | 1 |
| XP.712.024 | Detachable Reamer Head 13.0mm | 1 |
| XP.400.157 | Aluminium Sterilization Box for Flexible Reamers Shaft & Detachable Heads | 1 |
The Titanium Elastic Nailing System (TENS) is a flexible intramedullary fixation technique used for stabilizing long bone fractures, especially in pediatric patients. It allows minimally invasive surgery with faster healing and better mobility.
TENS Nails are commonly used for the treatment of fractures in long bones such as the femur and tibia, particularly in children and adolescents. They are ideal for stable and certain unstable fracture patterns.
TENS Nails are made from medical-grade titanium alloy, offering excellent flexibility, strength, corrosion resistance, and superior biocompatibility.
Elastic nails are available in various diameters (typically 1.5 mm to 4.0 mm) and lengths (440mm) to accommodate different bone sizes and patient anatomies.
Elastic nailing offers several benefits, including a minimally invasive procedure, reduced blood loss, faster recovery, preservation of bone growth (in children), and easy implant removal.
Yes, we provide a complete TENS Nail Set, including titanium elastic nails of various sizes, ensuring flexibility for different surgical requirements.
Yes, we offer a complete Elastic Nail Instrument Set, including inserters, extractors, bending tools, awls, and other surgical instruments for accurate and efficient procedures.
Yes, our Titanium Elastic Nail Systems are CE certified and are manufactured in compliance with international quality standards such as ISO 13485. Besides this, risk management is implemented as per ISO 14971, biocompatibility is evaluated in accordance with ISO 10993, final ultrasonic cleaning is validated as per ISO 19227, medical device labelling is aligned with ISO 15223, and packaging and labelling operations are performed in ISO Class 7 cleanroom environments in accordance with ISO 14644.
Yes, we are a trusted TENS Nail manufacturer and OEM supplier, providing customized branding, packaging, and specifications for distributors and importers worldwide.
Yes, we export Titanium Elastic Nail Systems globally to orthopedic distributors, hospitals, and medical suppliers across Asia, Africa, Latin America, and other international markets.
