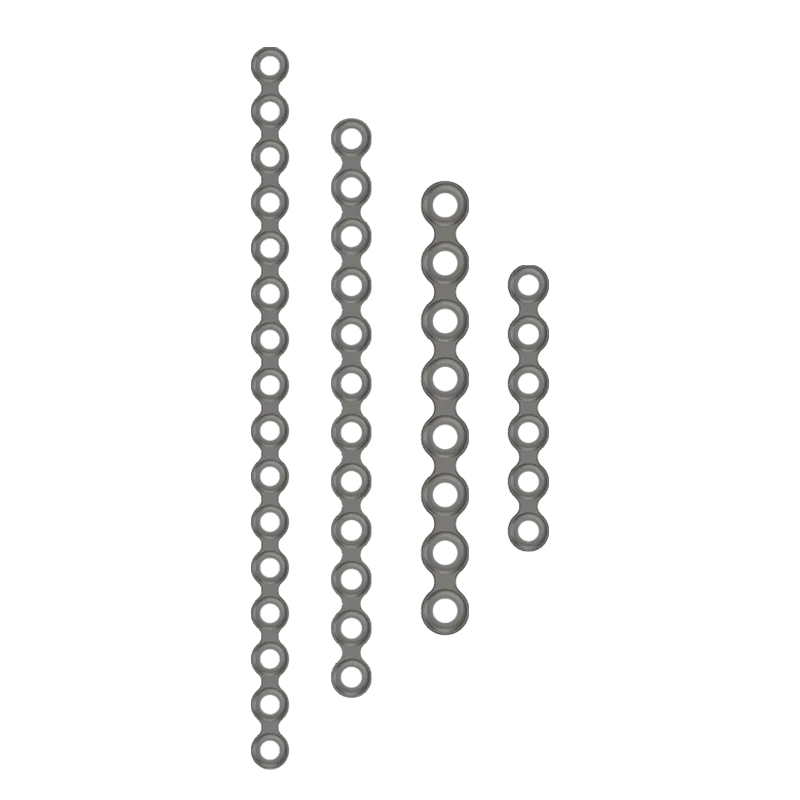

CMF - Locking Straight Plate

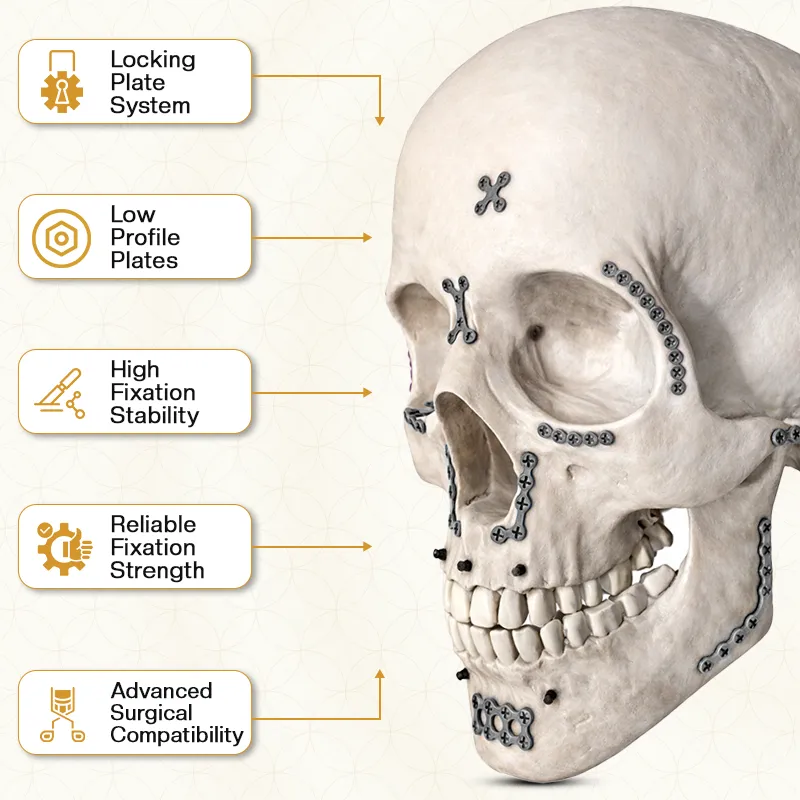

The Maxillofacial Implant Mid 1.0 mm System by Siora Surgicals Pvt. Ltd. is thoughtfully designed for delicate midface procedures where precision truly matters. Crafted from high-quality titanium, the system offers strength without adding unnecessary bulk, making it suitable for areas where minimal hardware visibility is required. Low-profile 1.0 mm maxillofacial plate system, including plates and compatible screws, allows surgeons to achieve stable fixation while maintaining patient comfort. Easy adaptability during surgery and consistent performance make this midface fracture fixation plate system a dependable choice in clinical settings. Whether used in trauma or reconstructive cases, this midface locking plate system supports accurate alignment and reliable healing outcomes.
The 1.0 mm maxillofacial plate system features thin, low-profile plates that minimize palpability and ensure better patient comfort, especially in delicate midface regions.
Manufactured using medical-grade titanium, the 1.0 mm cranio maxillofacial implants offer excellent strength, corrosion resistance, and biocompatibility.
Designed to match midfacial contours, the CMF plates allow accurate adaptation, helping surgeons achieve optimal alignment during procedures.
The 1.0 mm screws and plates provide reliable stability, supporting proper bone healing in trauma and reconstructive cases.
The mid 1.0 mm system is user-friendly, allowing easy contouring and placement, which helps reduce surgical time and effort.
Compatible instruments and components ensure a smooth workflow, making it convenient for surgeons to perform various midface fixation procedures.

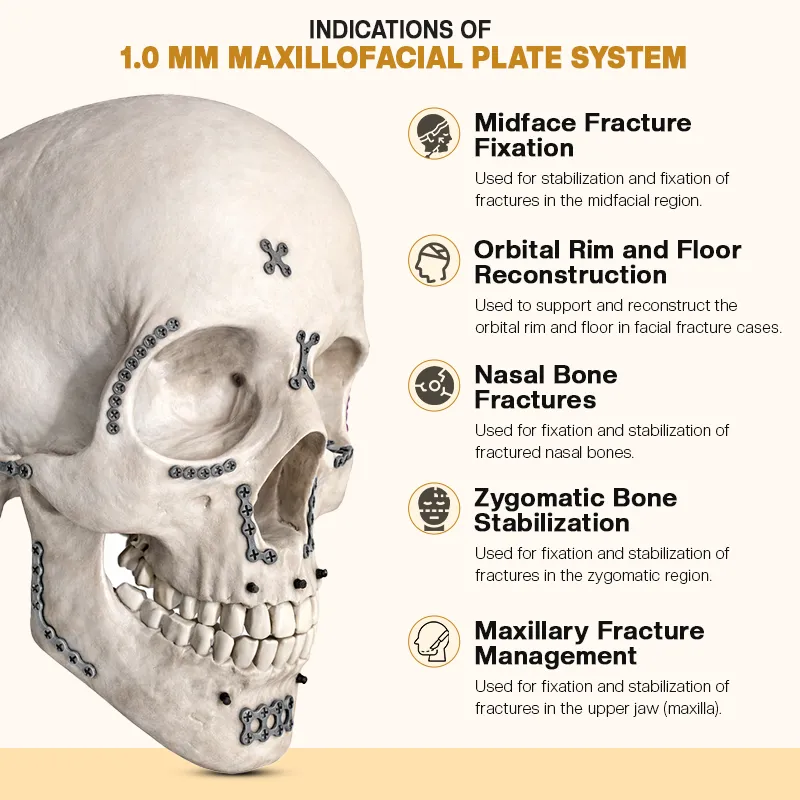

Used for stabilizing fractures of the midfacial bones, ensuring proper alignment and healing.
The midface locking plate system 1.0 mm is ideal for repairing fractures around the orbital region while maintaining structural support and contour.
This mid 1.0mm system provides precise fixation for delicate nasal bone injuries with minimal hardware prominence.
1.0 mm cranio maxillofacial implants help in the fixation of zygomatic fractures, restoring facial symmetry and function.
1.0 mm maxillofacial plate system is suitable for treating fractures of the upper jaw, supporting stable bone union.
Widely used in reconstructive surgeries to restore form and function in midface deformities.
Siora Surgicals Pvt. Ltd. manufactures maxillofacial Mid 1.0mm System in different types and sizes to address different conditions and patient anatomies.

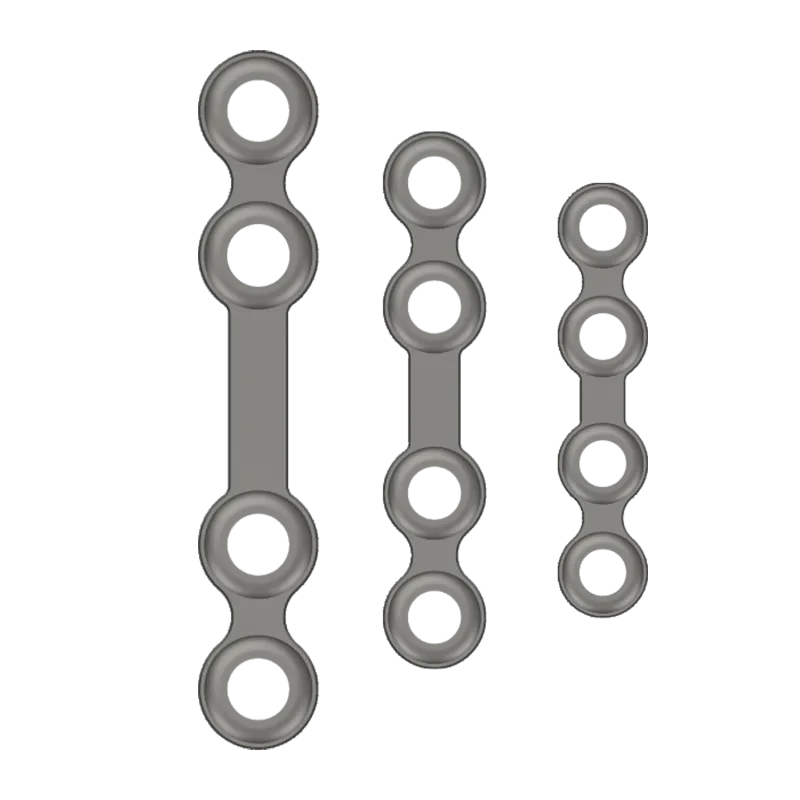

Designed for linear fracture fixation, this CMF locking straight plate offers stable locking support, ensuring precise alignment and reliable healing in maxillofacial procedures.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.210 – Ti.850.212 | 1.0 | 4 | 24 – 29 |
Ideal for bridging comminuted fractures, it maintains bone length and alignment without compressing fragments, supporting effective healing in complex cases.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.201 – Ti.850.204 | 1.0 | 6 -16 | 35 – 95 |

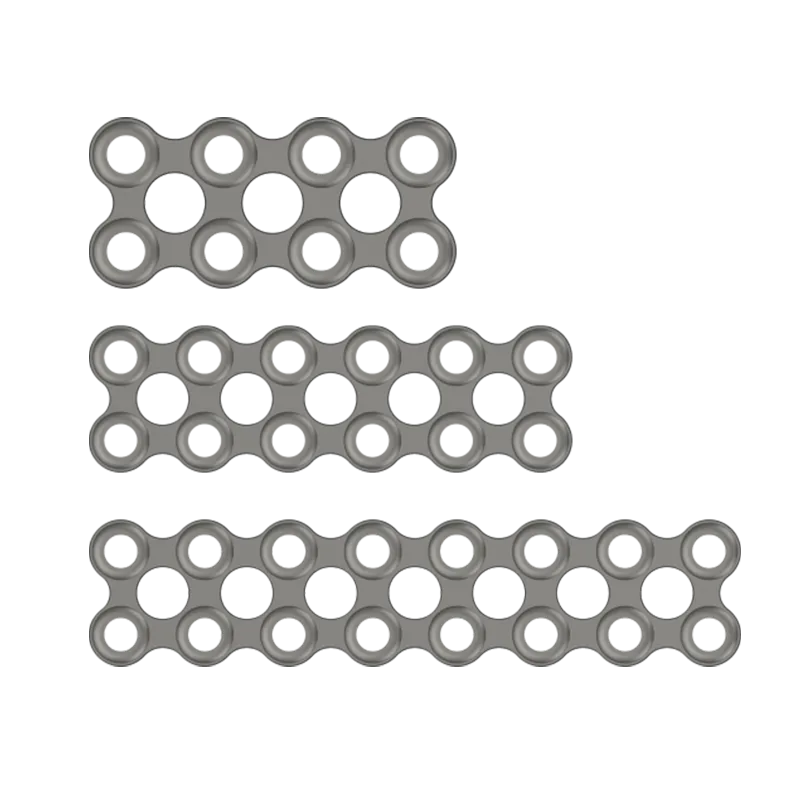

Provides multi-point fixation for enhanced stability, especially in areas requiring broader support across fracture lines in maxillofacial reconstructions.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.220 – Ti.850.222 | 1.0 | 8 -16 | 25 – 51 |

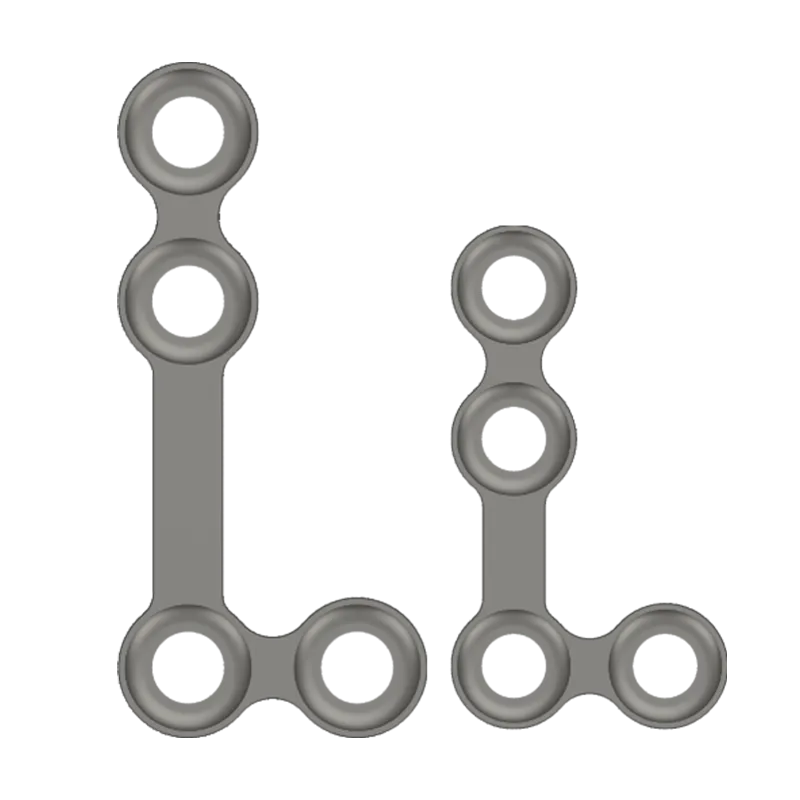

Right-angled design supports corner regions, offering strong fixation in mandibular and midface fractures requiring angular stability and precise contouring.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.230 – Ti.850.231 | 1.0 | 4 | 20 – 24 |

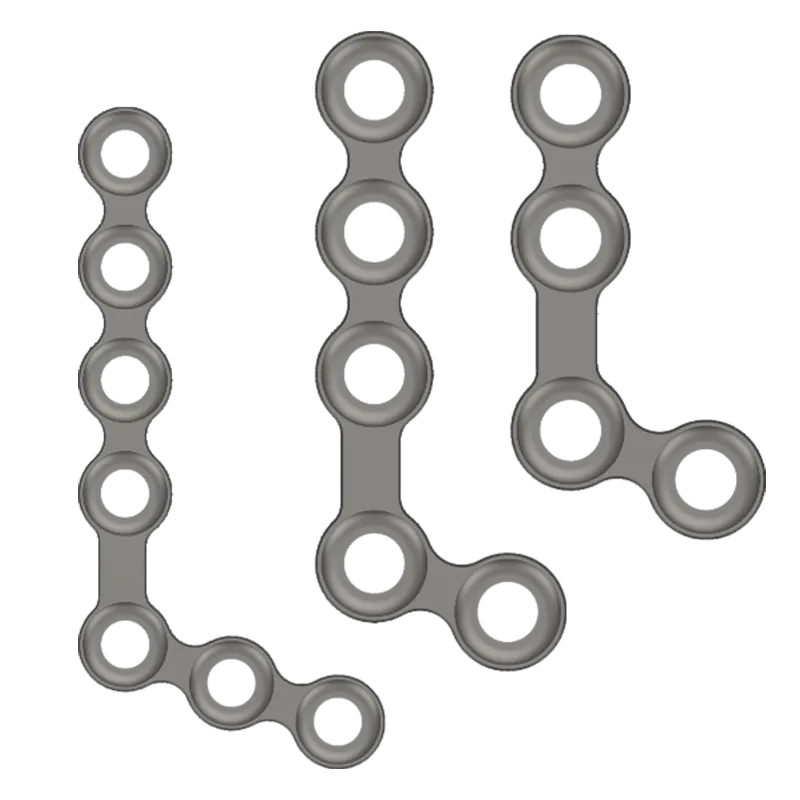

Angled at 110°, this CMF locking L plate adapts well to anatomical contours, ensuring stable fixation in complex facial fracture patterns.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.235 – Ti.850.237 | 1.0 | 4 – 7 | 19 – 31 |

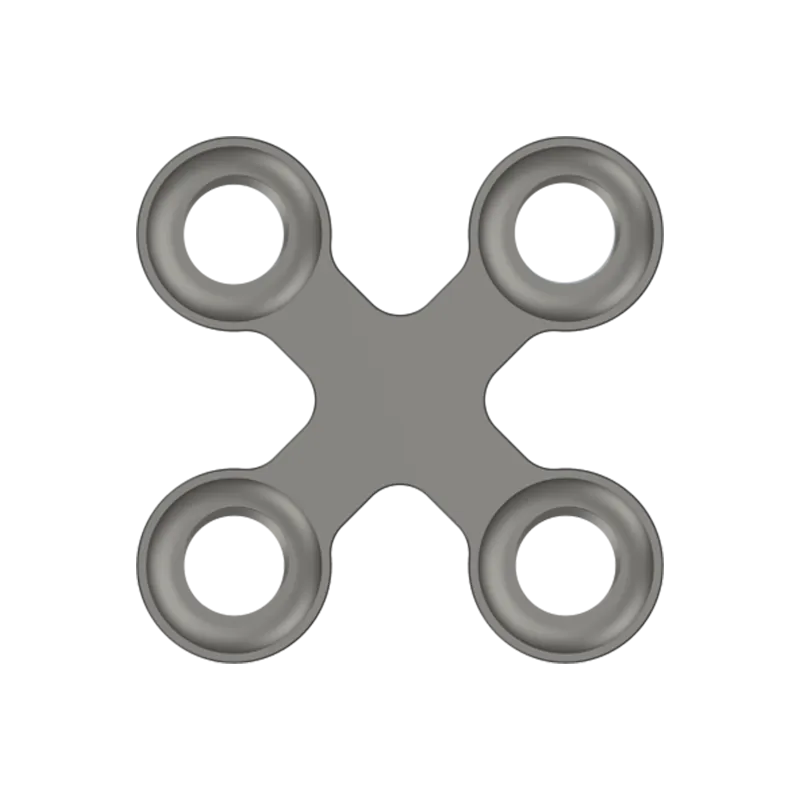

X-shaped design distributes forces evenly, providing multidirectional stability for fractures requiring enhanced fixation across intersecting bone segments.
| Cat No. | Thickness | Holes | Length |
| Ti.850.240 | 1.0mm | 4 | 17 mm |

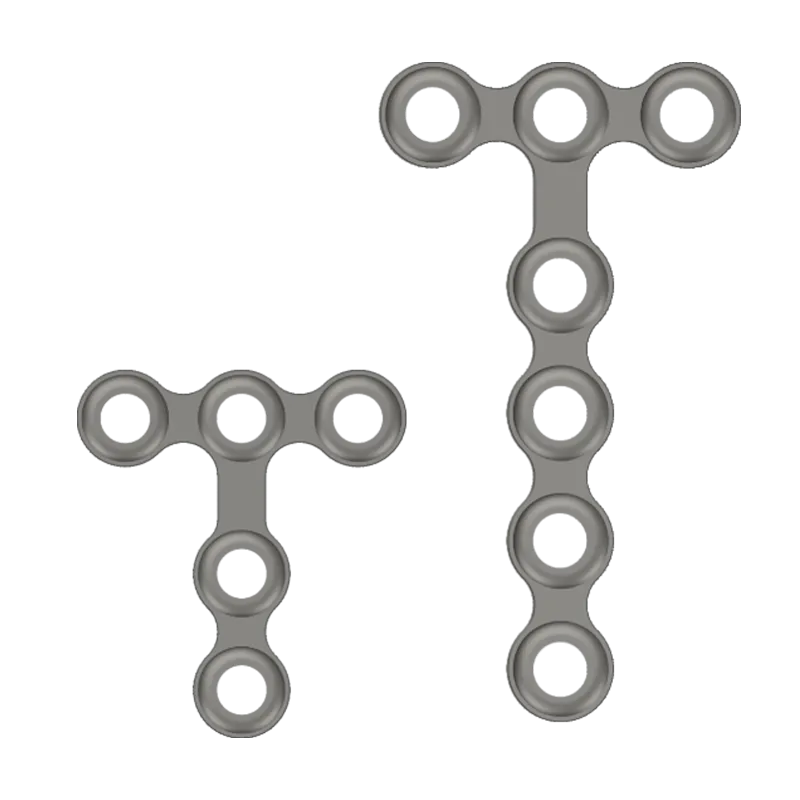

Offers vertical and horizontal support, making it suitable for fractures needing multidirectional stability and improved load distribution.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.245 – Ti.850.246 | 1.0 | 5 – 7 | 19 – 31 |

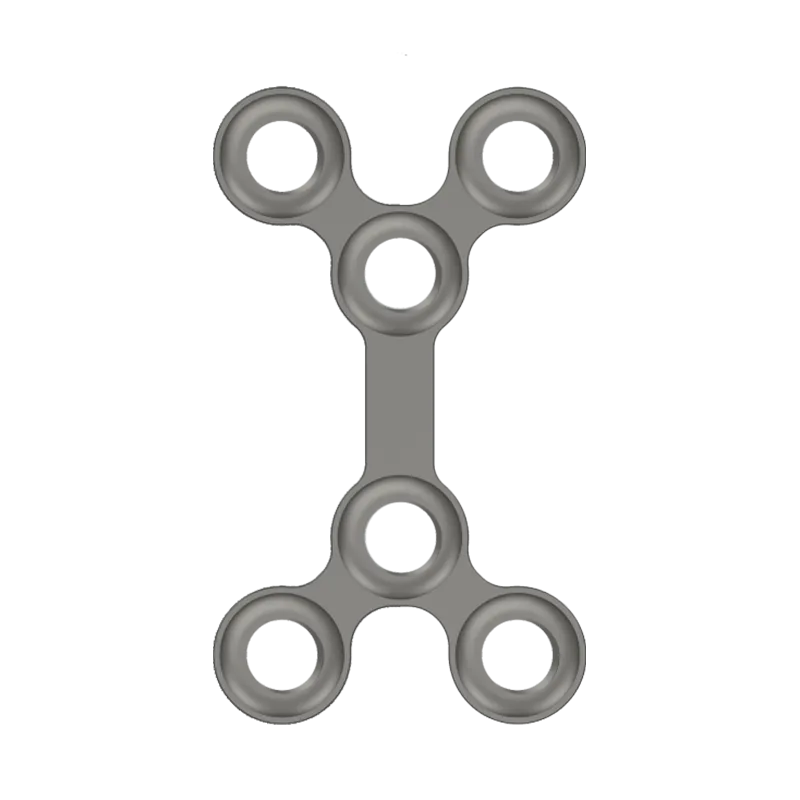

Double Y configuration ensures wider fixation coverage, enhancing stability in complex fracture zones with multiple stress points.
| Cat No. | Thickness | Holes | Length |
| Ti.850.250 | 1.0mm | 6 | 23 mm |

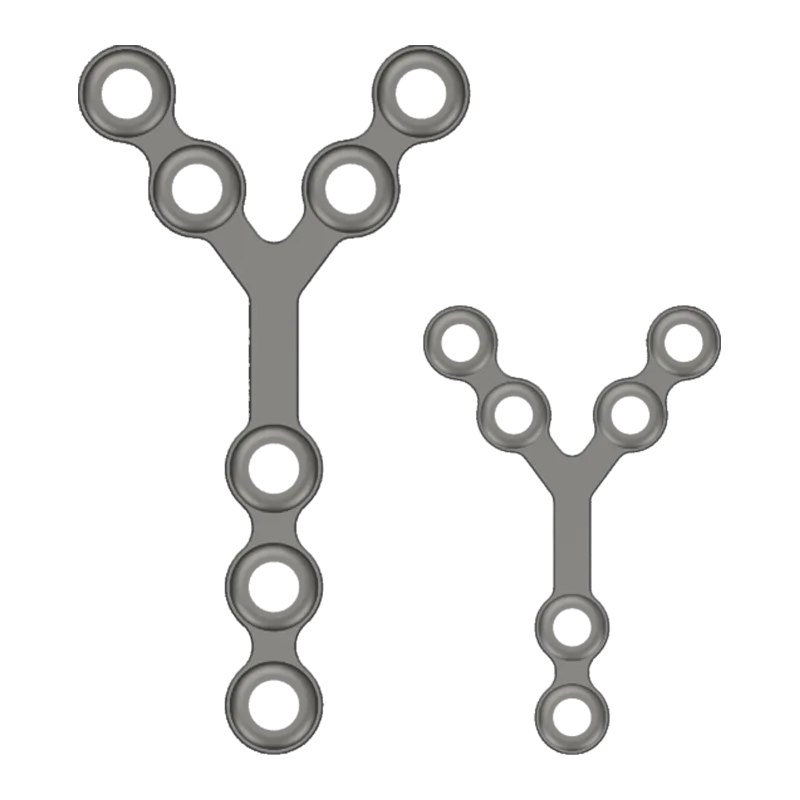

Y-shaped plate supports branching fracture patterns, offering balanced fixation and improved load sharing across bone segments.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.251 – Ti.850.252 | 1.0 | 6 – 7 | 30 – 36 |

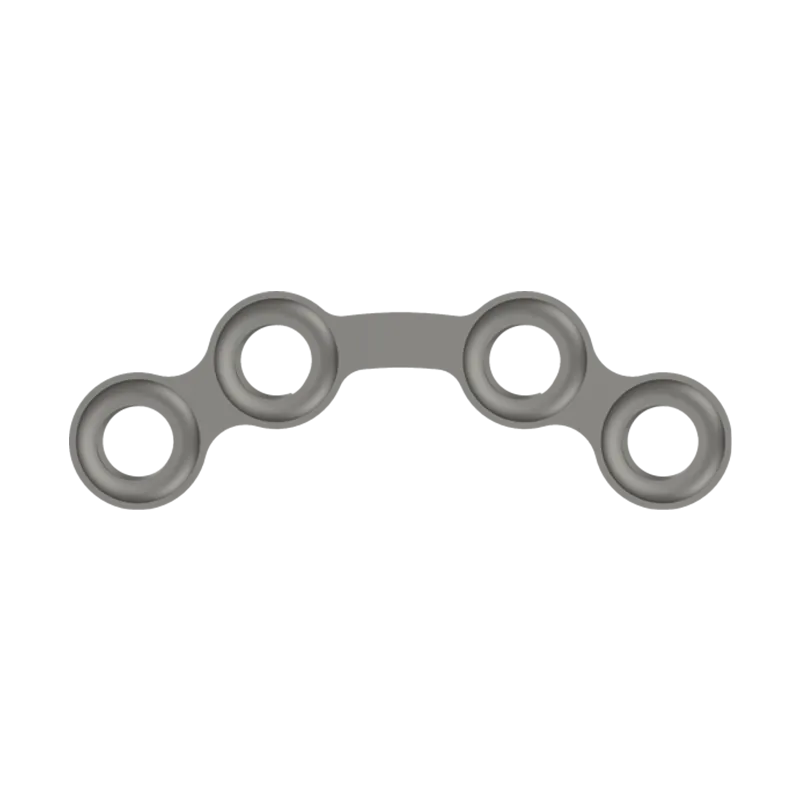

Curved bridge design helps span defects, maintaining anatomical contour while stabilizing comminuted fractures without disturbing bone fragments.
| Cat No. | Thickness | Holes | Length |
| Ti.850.255 | 1.0mm | 4 | 24 mm |

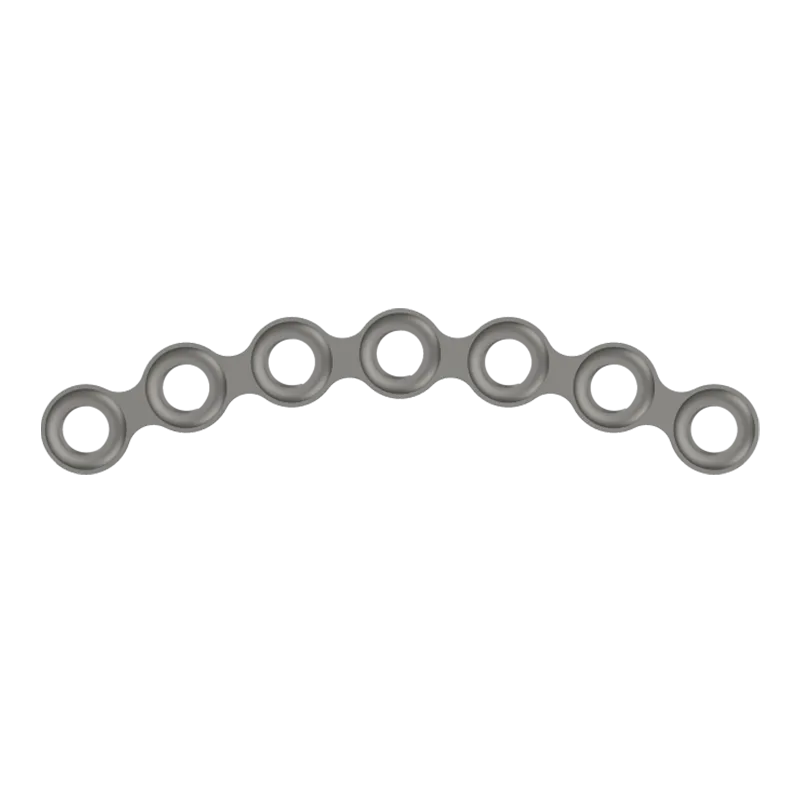

Pre-contoured arc shape matches facial anatomy, providing smooth adaptation and reliable fixation in curved bone regions.
| Cat No. | Thickness | Holes | Length |
| Ti.850.260 | 1.0mm | 7 | 40 mm |

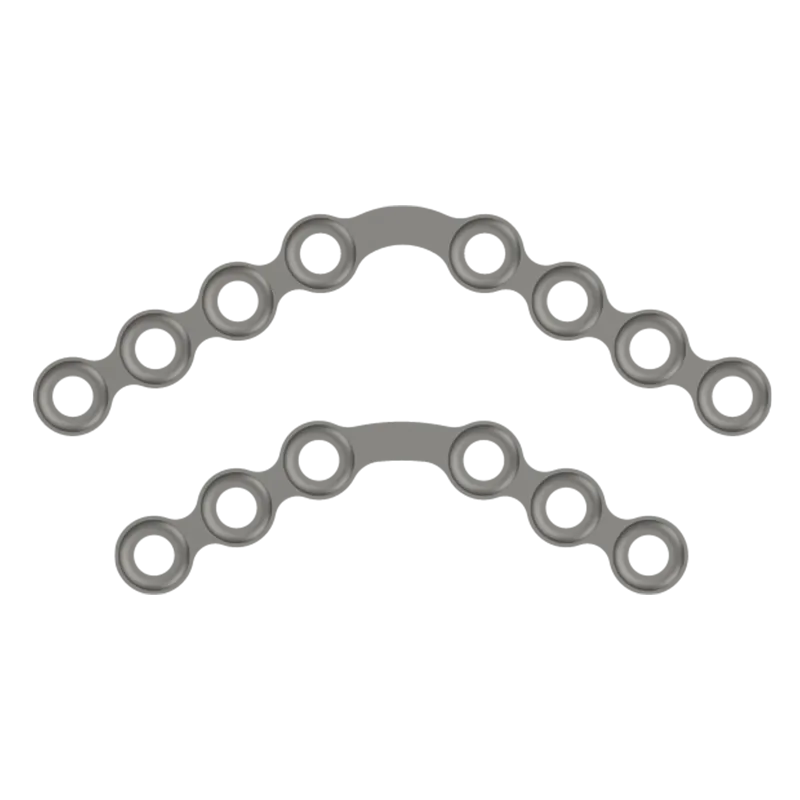

Designed with a 120° curvature, it ensures better conformity to anatomical structures, enhancing fixation stability in angled regions.
| Cat No. | Thickness (mm) | Holes | Length (mm) |
| Ti.850.265 – Ti.850.266 | 1.0 | 6 – 8 | 36 – 46 |

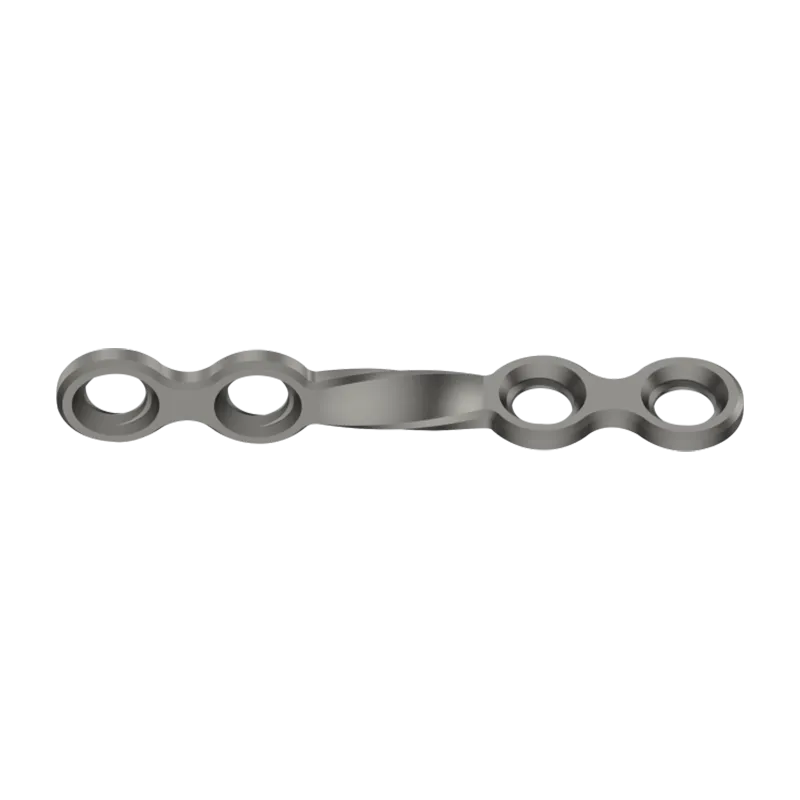

Specially designed for retromolar region fixation, this CMF alveolar ridge plate ensures secure stabilization while preserving anatomical integrity and supporting proper healing.
| Cat No. | Thickness | Holes | Length |
| Ti.850.270 | 1.0mm | 4 | 29 mm Left |
| Ti.850.271 | 1.0mm | 4 | 29 mm Right |

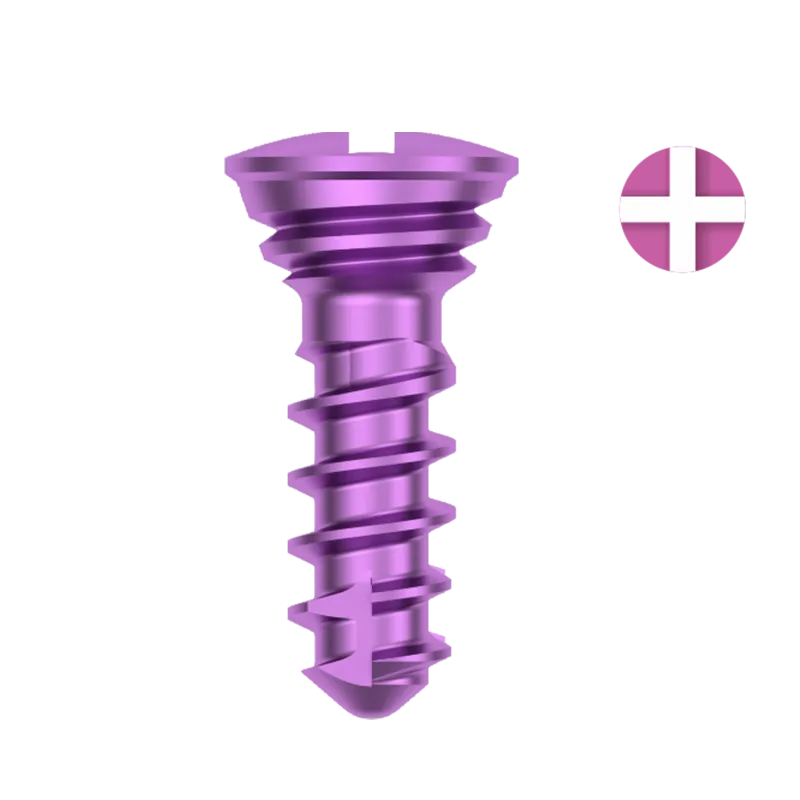

Self-tapping locking screw ensures firm fixation, reduces insertion time, and provides strong plate-to-bone stability in maxillofacial applications.
| Cat No. | Length (mm) |
| Ti.126.105 – Ti.126.113 | 5.5 – 13 |
Cat No. XP.916.105 – CMF Drill Bit – Plain Shank Dia. 1.6mm x 12mm x 48mm Long to be use with all 2.2mm Locking & Non Locking Screws

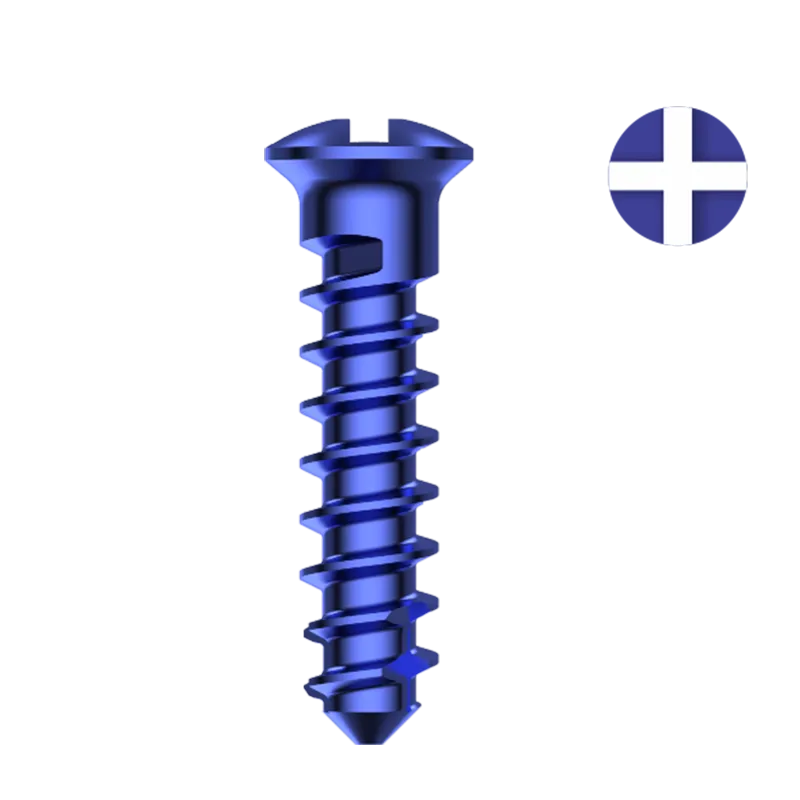

Offers reliable fixation with self-tapping design, allowing efficient insertion and secure bone engagement in various surgical procedures.
| Cat No. | Length (mm) |
| Ti.126.205 – Ti.126.213 | 5.5 – 13 |
Cat No. XP.916.105 – CMF Drill Bit – Plain Shank Dia. 1.6mm x 12mm x 48mm Long to be use with all 2.2mm Locking & Non Locking Screws

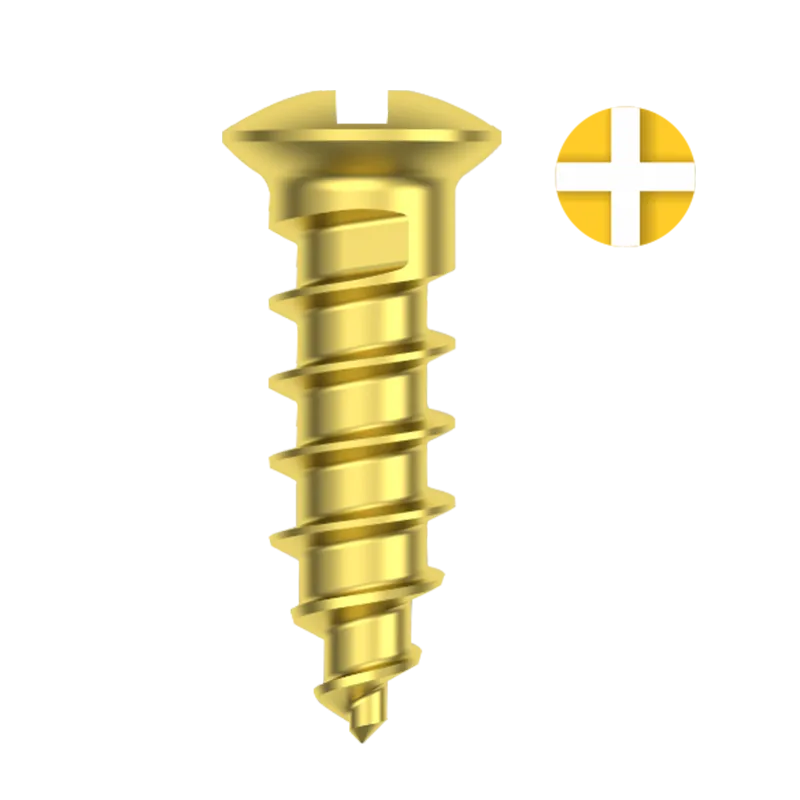

Self-drilling feature eliminates pre-drilling, enabling faster application while maintaining effective fixation in suitable bone conditions.
| Cat No. | Length (mm) |
| Ti.126.305 – Ti.126.311 | 5 – 11 |
Cat No. XP.916.105 – CMF Drill Bit – Plain Shank Dia. 1.6mm x 12mm x 48mm Long to be use with all 2.2mm Locking & Non Locking Screws

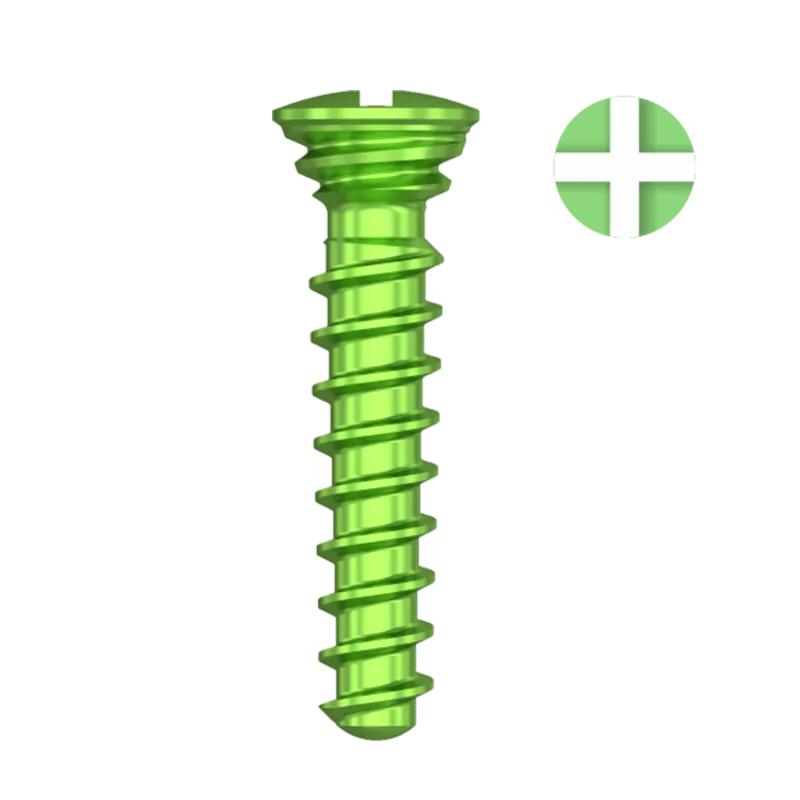

Designed for intraoperative emergencies, this screw provides immediate stable fixation when standard screws fail or when bone quality is compromised.
| Cat No. | Length (mm) |
| Ti.126.406 – Ti.126.414 | 6 – 14 |

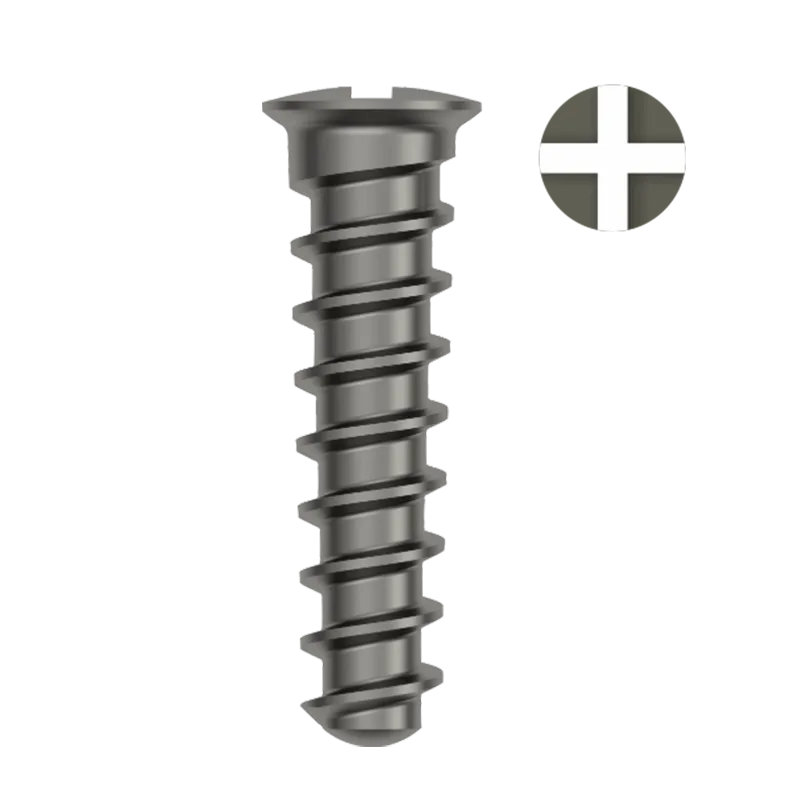

Ensures quick backup fixation during surgery, offering dependable hold in challenging situations requiring immediate corrective action.
| Cat No. | Length (mm) |
| Ti.126.506 – Ti.126.514 | 6 – 14 |

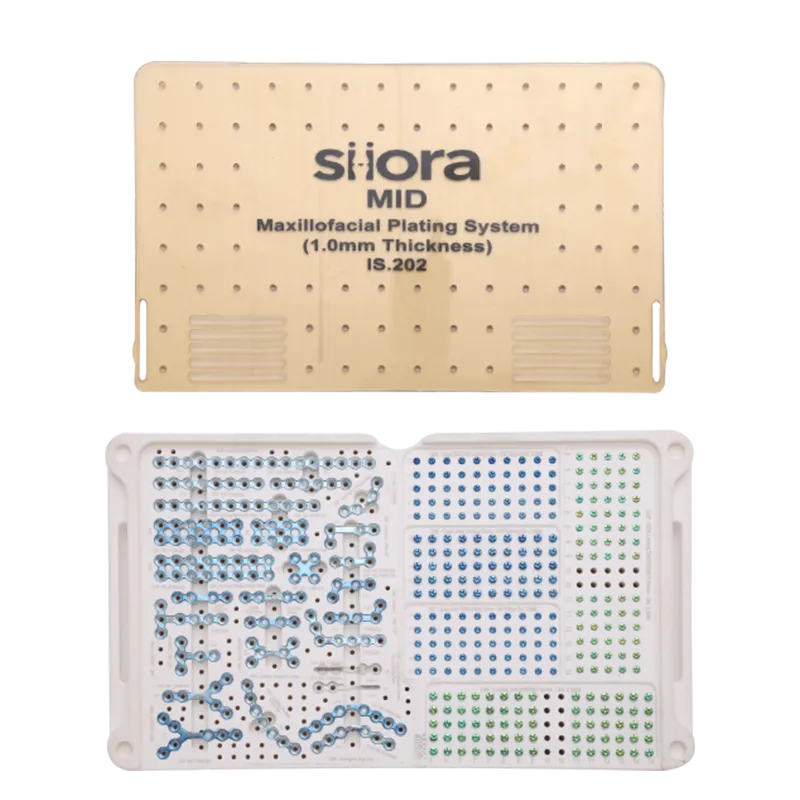

Low-profile system designed for midface fixation, offering precise adaptation, stable support, and improved patient comfort in delicate surgical procedures.
| IS.202 | Mid Maxillofacial Plate (1.0mm Thickness) 2.0mm Screws System | Units |
|---|---|---|
| Ti.850.201 | CMF – Locking Straight Plate (Thickness 1.0MM) 6 Holes Length 35MM -Titanium | 1 |
| Ti.850.202 | CMF – Locking Straight Plate (Thickness 1.0MM) 8 Holes Length 47MM -Titanium | 1 |
| Ti.850.203 | CMF – Locking Straight Plate (Thickness 1.0MM) 12 Holes Length 71MM -Titanium | 1 |
| Ti.850.204 | CMF – Locking Straight Plate (Thickness 1.0MM) 16 Holes Length 95MM -Titanium | 1 |
| Ti.850.210 | CMF – Locking Straight Bridge Plate (Thickness 1.0MM) 4 Holes Length 24MM -Titanium | 1 |
| Ti.850.211 | CMF – Locking Straight Bridge Plate (Thickness 1.0MM) 4 Holes Length 26MM -Titanium | 1 |
| Ti.850.212 | CMF – Locking Straight Bridge Plate (Thickness 1.0MM) 4 Holes Length 29MM -Titanium | 1 |
| Ti.850.220 | CMF – Locking Rectangle Plate (Thickness 1.0MM) 8 Holes Length 25MM -Titanium | 1 |
| Ti.850.221 | CMF – Locking Rectangle Plate (Thickness 1.0MM) 12 Holes Length 38MM -Titanium | 1 |
| Ti.850.222 | CMF – Locking Rectangle Plate (Thickness 1.0MM) 16 Holes Length 51MM -Titanium | 1 |
| Ti.850.230 | CMF – Locking L-Plate 90°Deg. (Thickness 1.0MM) 4 Holes Length 20MM -Titanium | 1 |
| Ti.850.231 | CMF – Locking L-Plate 90°Deg. (Thickness 1.0MM) 4 Holes Length 24MM -Titanium | 1 |
| Ti.850.235 | CMF – Locking L-Plate 110°Deg. (Thickness 1.0MM) 4 Holes Length 19MM -Titanium | 1 |
| Ti.850.236 | CMF – Locking L-Plate 110°Deg. (Thickness 1.0MM) 5 Holes Length 25MM -Titanium | 1 |
| Ti.850.237 | CMF – Locking L-Plate 110°Deg. (Thickness 1.0MM) 7 Holes Length 31MM -Titanium | 1 |
| Ti.850.240 | CMF – Locking X – Plate (Thickness 1.0MM) 4 Holes Length 17MM -Titanium | 1 |
| Ti.850.245 | CMF – Locking T- Plate (Thickness 1.0MM) 5 Holes Length 19MM -Titanium | 1 |
| Ti.850.246 | CMF – Locking T- Plate (Thickness 1.0MM) 7 Holes Length 31MM -Titanium | 1 |
| Ti.850.250 | CMF – Locking Double Y- Plate (Thickness 1.0MM) 6 Holes Length 23MM -Titanium | 1 |
| Ti.850.251 | CMF – Locking Y- Plate (Thickness 1.0MM) 6 Holes Length 30MM -Titanium | 1 |
| Ti.850.252 | CMF – Locking Y- Plate (Thickness 1.0MM) 7 Holes Length 36MM -Titanium | 1 |
| Ti.850.255 | CMF – Locking Arc Bridge Plate (Thickness 1.0MM) 4 Holes Length 24MM -Titanium | 1 |
| Ti.850.260 | CMF – Locking Arc Plate (Thickness 1.0MM) 7 Holes Length 40MM -Titanium | 1 |
| Ti.850.265 | CMF – Locking Arc Plate 120°Deg. (Thickness 1.0MM) 6 Holes Length 36MM -Titanium | 1 |
| Ti.850.266 | CMF – Locking Arc Plate 120°Deg. (Thickness 1.0MM) 8 Holes Length 46MM -Titanium | 1 |
| Ti.850.270 | CMF – Locking Retromolar Triangle Alveolar Redge Plate(Thickness 1.0MM) 4Holes Length 29MM -Left -Titanium | 1 |
| Ti.850.271 | CMF – Locking Retromolar Triangle Alveolar Redge Plate(Thickness 1.0MM) 4Holes Length 29MM -Right -Titanium | 1 |
| Ti.126.105 | CMF- Cross Drive LOCKING Screw- Self Tapping- Dia 2.0mm Length 5.5mm- Titanium | 10 |
| Ti.126.107 | CMF- Cross Drive LOCKING Screw- Self Tapping- Dia 2.0mm Length 7.0mm- Titanium | 10 |
| Ti.126.109 | CMF- Cross Drive LOCKING Screw- Self Tapping- Dia 2.0mm Length 9.0mm- Titanium | 10 |
| Ti.126.111 | CMF- Cross Drive LOCKING Screw- Self Tapping- Dia 2.0mm Length 11.0mm- Titanium | 10 |
| Ti.126.113 | CMF- Cross Drive LOCKING Screw- Self Tapping- Dia 2.0mm Length 13.0mm- Titanium | 10 |
| Ti.126.205 | CMF- Cross Drive NON-LOCKING Screw- Self Tapping- Dia 2.0mm Length 5.5mm- Titanium | 10 |
| Ti.126.207 | CMF- Cross Drive NON-LOCKING Screw- Self Tapping- Dia 2.0mm Length 7.0mm- Titanium | 10 |
| Ti.126.209 | CMF- Cross Drive NON-LOCKING Screw- Self Tapping- Dia 2.0mm Length 9.0mm- Titanium | 10 |
| Ti.126.211 | CMF- Cross Drive NON-LOCKING Screw- Self Tapping- Dia 2.0mm Length 11.0mm- Titanium | 10 |
| Ti.126.213 | CMF- Cross Drive NON-LOCKING Screw- Self Tapping- Dia 2.0mm Length 13.0mm- Titanium | 10 |
| Ti.126.305 | CMF- Cross Drive NON-LOCKING Screw- Self Drilling – Dia 2.0mm Length 5.0mm- Titanium | 10 |
| Ti.126.306 | CMF- Cross Drive NON-LOCKING Screw- Self Drilling- Dia 2.0mm Length 6.0mm- Titanium | 10 |
| Ti.126.307 | CMF- Cross Drive NON-LOCKING Screw- Self Drilling- Dia 2.0mm Length 7.0mm- Titanium | 10 |
| Ti.126.309 | CMF- Cross Drive NON-LOCKING Screw- Self Drilling- Dia 2.0mm Length 9.0mm- Titanium | 10 |
| Ti.126.311 | CMF- Cross Drive NON-LOCKING Screw- Self Drilling- Dia 2.0mm Length 11.0mm- Titanium | 10 |
| Ti.126.406 | CMF – Locking Emergency Screw – Dia 2.3mm Length 6mm -Titanium | 10 |
| Ti.126.407 | CMF – Locking Emergency Screw – Dia 2.3mm Length 7mm -Titanium | 10 |
| Ti.126.408 | CMF – Locking Emergency Screw – Dia 2.3mm Length 8mm -Titanium | 10 |
| Ti.126.409 | CMF – Locking Emergency Screw – Dia 2.3mm Length 9mm -Titanium | 10 |
| Ti.126.411 | CMF – Locking Emergency Screw – Dia 2.3mm Length 11mm -Titanium | 10 |
| Ti.126.413 | CMF – Locking Emergency Screw – Dia 2.3mm Length 13mm -Titanium | 10 |
| Ti.126.414 | CMF – Locking Emergency Screw – Dia 2.3mm Length 14mm -Titanium | 10 |
| Ti.126.506 | CMF – NON-Locking Emergency Screw – Dia 2.3mm Length 6mm -Titanium | 10 |
| Ti.126.507 | CMF – NON-Locking Emergency Screw – Dia 2.3mm Length 7mm -Titanium | 10 |
| Ti.126.508 | CMF – NON-Locking Emergency Screw – Dia 2.3mm Length 8mm -Titanium | 10 |
| Ti.126.509 | CMF – NON-Locking Emergency Screw – Dia 2.3mm Length 9mm -Titanium | 10 |
| Ti.126.511 | CMF – NON-Locking Emergency Screw – Dia 2.3mm Length 11mm -Titanium | 10 |
| Ti.126.513 | CMF – NON-Locking Emergency Screw – Dia 2.3mm Length 13mm -Titanium | 10 |
| Ti.126.514 | CMF – NON-Locking Emergency Screw – Dia 2.3mm Length 14mm -Titanium | 10 |
| 400.172 | Implant Box for MID Maxillofacial (1.0mm Thickness) 2.0mm Screws System (Medical Grade Plastic) | 1 |
The cranio maxillofacial instrument set offered by Siora includes essential tools, including screw drivers, drill bits, surgical elevator, and others, that are required for the accurate placement and fixation of cranio-maxillofacial implants, helping surgeons achieve optimal clinical outcomes.
| Cat No. IS.208 | Description | Units |
|---|---|---|
| XP.916.101 | CMF Straight Quick Coupling Handle | 1 |
| XP.916.102 | CMF Cross Drive Screw Driver Shaft | 1 |
| XP.916.103 | CMF Surgical Elevator 1.5mm Dia. | 1 |
| XP.916.104 | CMF Drill Bit – Plain Shank Dia. 1.1mm X 8.5mm X 48mm Long | 1 |
| XP.916.105 | CMF Drill Bit – Plain Shank Dia. 1.6mm X 12mm X 48mm Long | 1 |
| XP.916.106 | CMF Drill Bit – Plain Shank Dia. 1.9mm X 22mm X 58mm Long | 1 |
| XP.916.107 | CMF Drill Bit – Plain Shank Dia. 1.9mm X 57mm X 82mm Long | 1 |
| XP.916.108 | CMF Temporary Holder HC 2.4mm | 2 |
| XP.916.109 | CMF Universal Drill Guide 1.1/1.6mm | 1 |
| XP.916.110 | CMF Universal Drill Guide 1.6/1.9mm | 1 |
| XP.916.111 | CMF Depth Gauge | 1 |
| 916.120 | CMF Locking Drill Sleeve 1.9mm | 2 |
| 916.121 | CMF Plate Holding Forceps | 1 |
| 400.177 | Instrument Box for Maxillofacial Plating System (Medical Grade Plastic) | 1 |
0.6 mm → Ultra-delicate (orbital, pediatric, low load)
0.8 mm → Light midface applications
1.0 mm → Standard midface fixation with improved rigidity
The 1.0 mm system is preferred when higher mechanical stability is required without moving to heavy reconstruction plates.
Our implants are made from medical-grade Titanium, ensuring excellent biocompatibility, superior strength, corrosion resistance, and safe MRI compatibility.
The system includes a wide anatomical range:
Straight & Bridge Plates
L Plates (90° / 110°)
T, X, and Y Plates
Double Y Plates
Arc & Arc Bridge Plates (including 120° variants)
Retromolar Triangle Alveolar Ridge Plates
This variety allows surgeons to address complex midface fracture patterns effectively.
The system supports:
2.0 mm locking screws (self-tapping)
2.0 mm non-locking screws (self-tapping & self-drilling)
2.3 mm emergency screws (locking & non-locking)
Emergency screws are useful in revision or compromised bone conditions.
Locking systems offer angular stability, minimize the chances of screw loosening, ensure better fixation in osteoporotic or thin bones, and eliminate the need for plate-to-bone compression. This is especially critical in midface trauma with complex fracture geometry.
Yes, we provide:
OEM production
Private labeling
Custom implant kits
Distributor-specific packaging
A standard system includes:
Full range of anatomical plates
Locking & non-locking screws
Instrument set (drill bits, screwdrivers, plate benders, gauges)
Custom configurations are available based on hospital or distributor requirements.
A widely used solution in trauma centers, suitable for multiple surgical applications, offering cost advantages over global brands, and simplifying inventory management through a standardized and efficient system.
The CMF plate system 1.0 mm titanium offers optimal rigidity for load-bearing areas, features a low-profile design to preserve facial aesthetics, and ensures versatility in managing a wide range of maxillofacial fracture types.
If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
