Mid 1.5mm System Maxillofacial Implants

CMF - Locking Straight Plate

Product Overview:

The Maxillofacial Implant Mid 1.5 mm System by Siora Surgicals Pvt. Ltd. is designed to address delicate facial bone fractures with precision and stability. Crafted from high-quality medical-grade titanium, these implants ensure reliable fixation while maintaining a low-profile design for better patient comfort and aesthetics. The 1.5mm maxillofacial plate system includes a versatile range of plates and screws, allowing surgeons to adapt easily to varied clinical needs. Its accurate fit and smooth finish support quicker healing and reduced tissue irritation. Ideal for midface procedures, this CMF plate system 1.5 mm titanium, reflects Siora’s commitment to consistent quality, performance, and surgical ease.

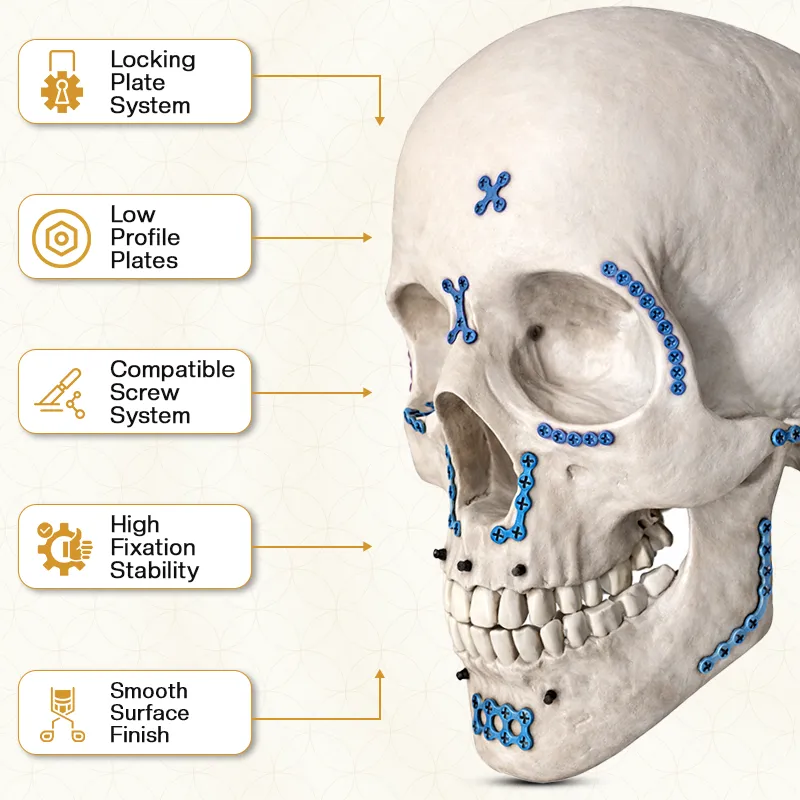

Key Features of the Midface Locking Plate System 1.5mm:

Precision-Engineered Design

Developed for accurate adaptation to midfacial anatomy, ensuring stable fixation and dependable surgical outcomes.

High-Quality Material

The 1.5 mm maxillofacial plate system is manufactured using medical-grade titanium for strength, durability, and biocompatibility.

Low-Profile Structure

Slim plate design minimizes palpability and enhances patient comfort while supporting better aesthetic results.

Versatile Plate Options

Includes a wide range of maxillofacial plates and screws to suit different fracture patterns and surgical requirements.

Smooth Surface Finish

Polished edges help reduce soft tissue irritation and support improved healing conditions.

Reliable Fixation

Ensures firm stability in delicate bone structures, allowing proper alignment and faster recovery.

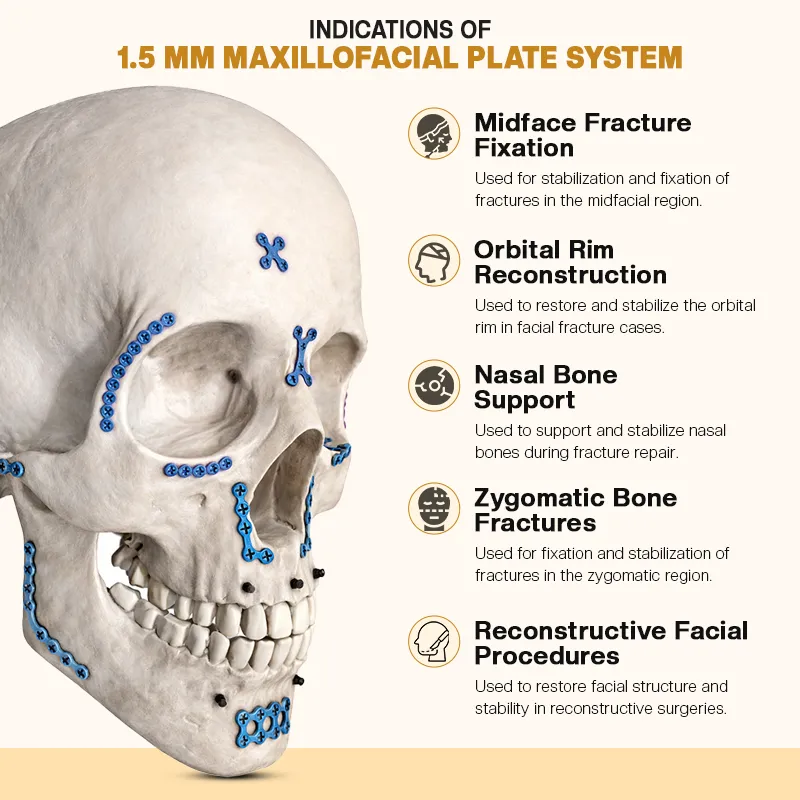

Key Indications of 1.5 mm Maxillofacial Plate System:

Midface Fracture Fixation

Used for stabilizing fractures in the midfacial region, ensuring proper alignment and healing.

Orbital Rim Reconstruction

Ideal for repairing fractures around the orbital rim while maintaining structural integrity and contour.

Nasal Bone Support

Provides reliable fixation in nasal bone fractures to restore form and function.

Zygomatic Bone Fractures

Helps in the effective management of zygomatic bone injuries with stable and secure fixation.

Maxillary Fracture Management

This CMF mid 1.5mm system is suitable for treating fractures of the maxilla, ensuring accurate repositioning of bone segments.

Reconstructive Facial Procedures

Used in reconstructive surgeries to restore facial symmetry and support anatomical structure.

Available Types and Sizes of our MID 1.5mm Maxillofacial Locking Plates, Screws, & CMF Graphic Implant Set

We manufacture 1.5 mm-thick maxillofacial implants in different structural configurations to suit different fracture patterns and patient anatomies. Moreover, we also offer CMF screws in different lengths and diameters compatible with our midface locking plate system 1.5 mm.

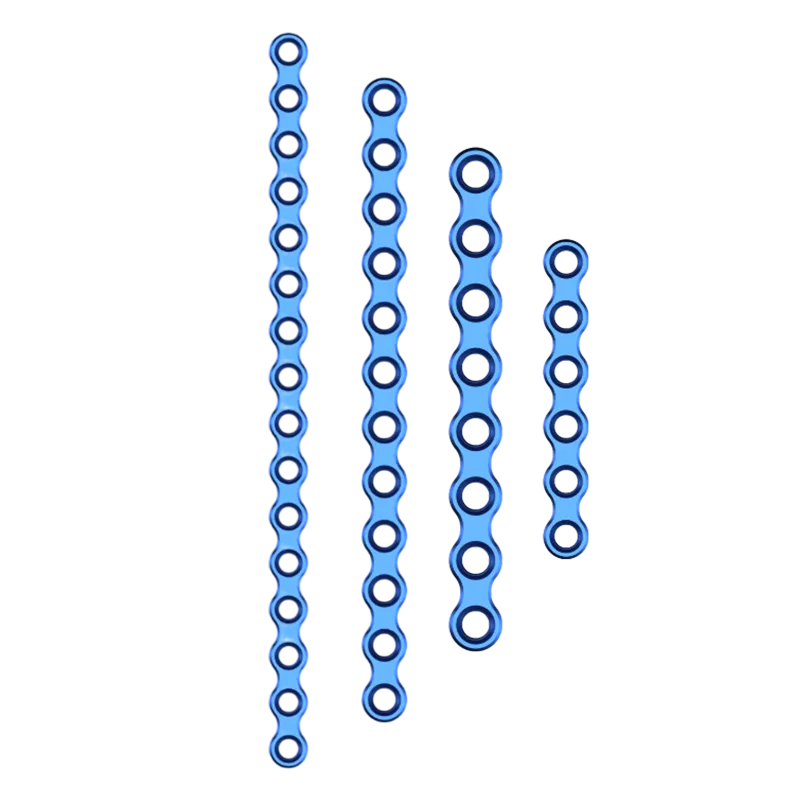

CMF – Locking Straight Plate

The locking straight plate 1.5mm provides rigid fixation for linear fractures with a locking mechanism, ensuring stability, precise alignment, and reduced risk of screw loosening.

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.301 – Ti.850.304	1.5	6 – 16	35 – 95

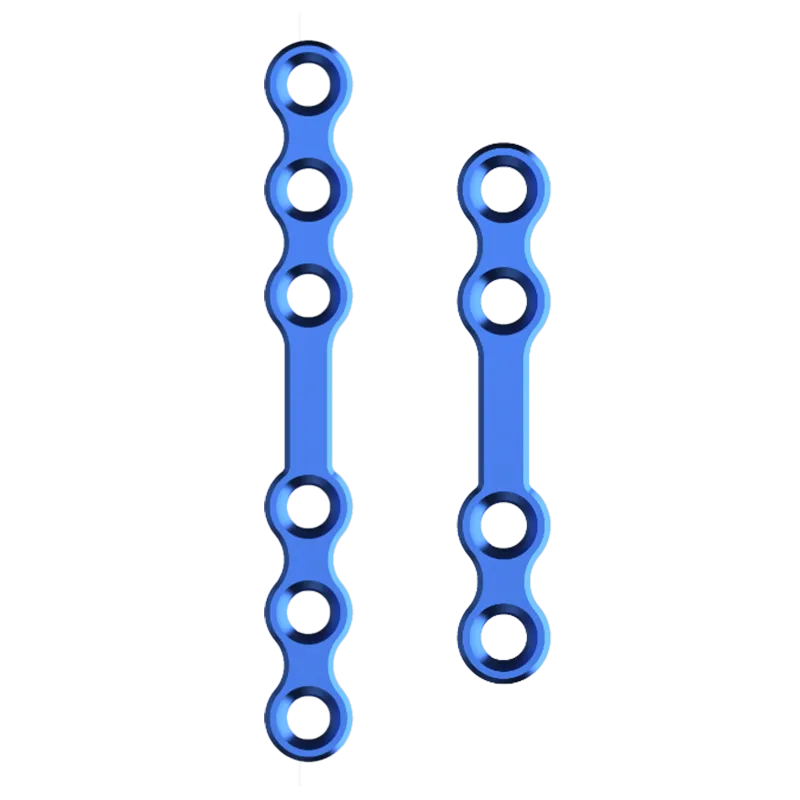

CMF – Locking Straight Bridge Plate

Designed to bridge comminuted fractures, the locking straight bridge plate maintains bone length and alignment while offering strong, stable fixation across fragmented segments.

Cat No. (Titanium)	Dia (mm)	Length (mm)
Ti.610.55.30 – Ti.610.55.50	5.5	30-50 *
Ti.610.65.30 – Ti.610.65.50	6.5	30-50 *
Ti.610.75.30 – Ti.610.75.50	7.5	30-50 *

* Available in diameters ranging from 30mm to 50mm (with a difference of 5mm).

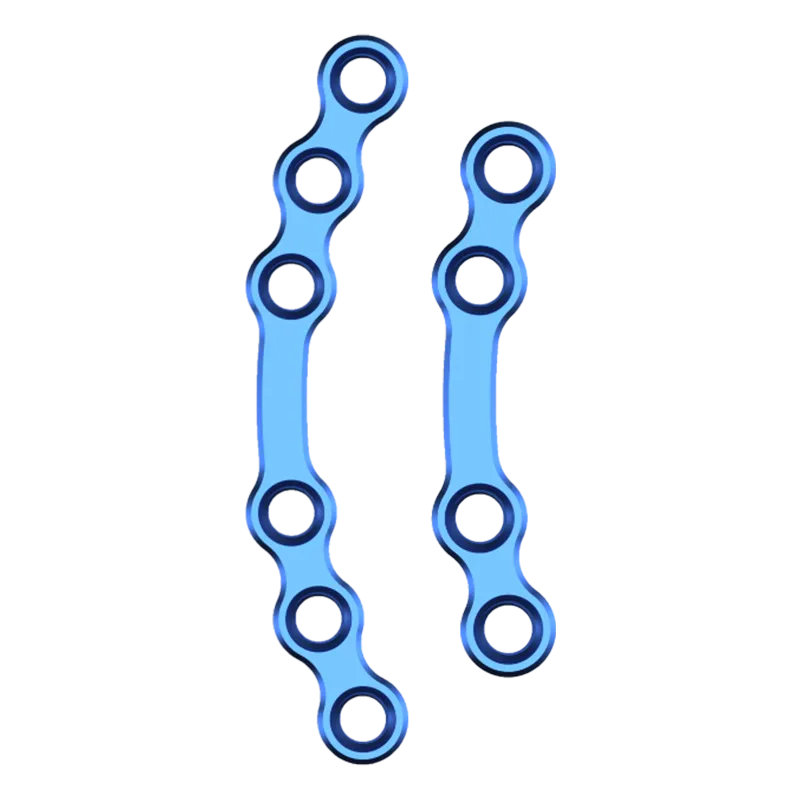

CMF – Locking Arc Bridge Plate

The curved design of this locking arc bridge plate adapts to facial contours, ideal for bridging fractures while ensuring even load distribution and improved anatomical fit.

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.315 – Ti.850.316	1.5	4 – 6	29 – 40

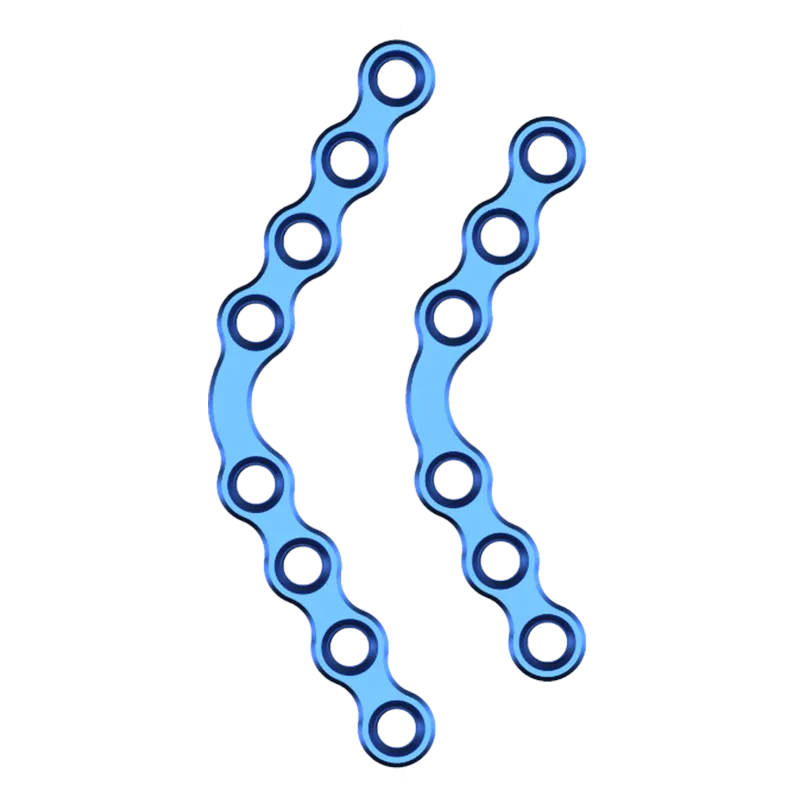

CMF – Locking Arc Plate 120°

Pre-shaped 120° locking arc plate ensures optimal adaptation in curved anatomical regions, delivering secure fixation and enhanced surgical convenience.

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.320 – Ti.850.321	1.5	6 – 8	36 – 46

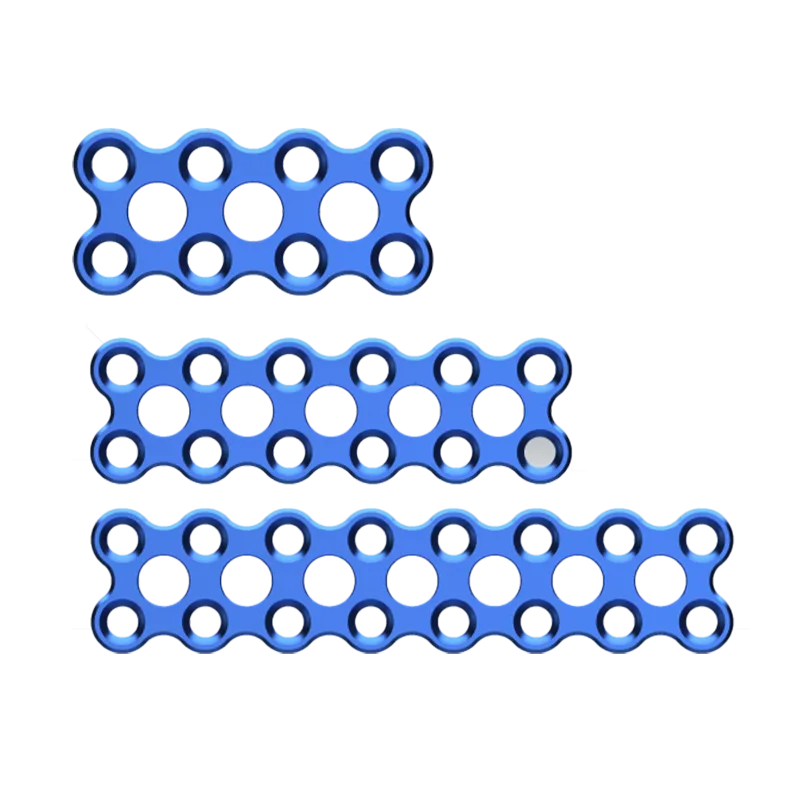

CMF – Locking Rectangle Plate

Offers multidirectional stability for complex fractures, with a rectangular shape and multiple locking holes providing balanced fixation and support across wider bone surfaces.

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.330 – Ti.850.332	1.5	8 – 16	25 – 51

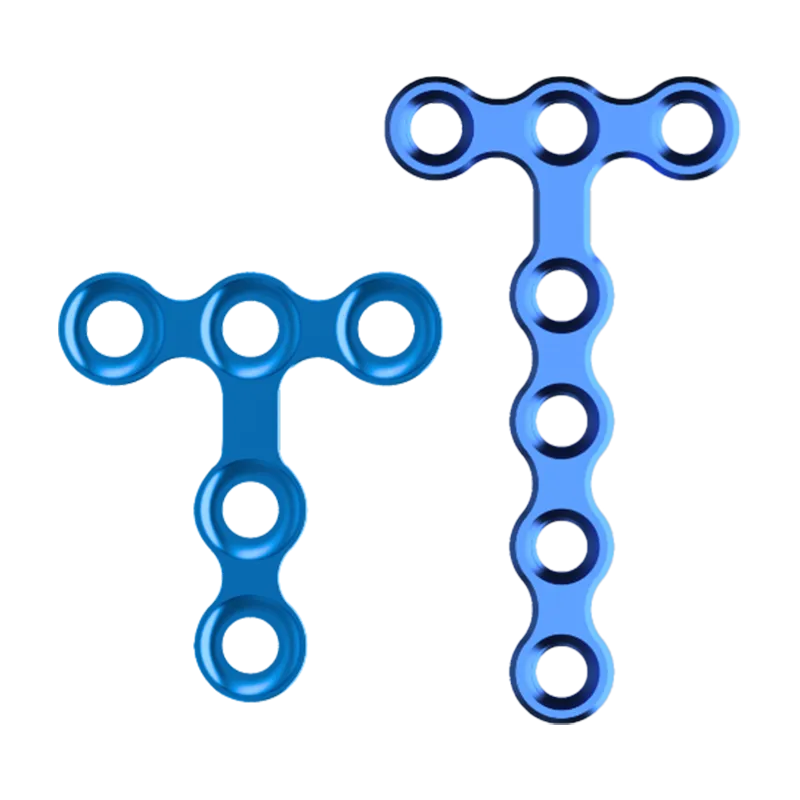

CMF – Locking T- Plate

T-shaped configuration supports fracture fixation in intersecting bone regions, ensuring stability and ease during reconstructive procedures.

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.340 – Ti.850.341	1.5	5 – 7	19 – 31

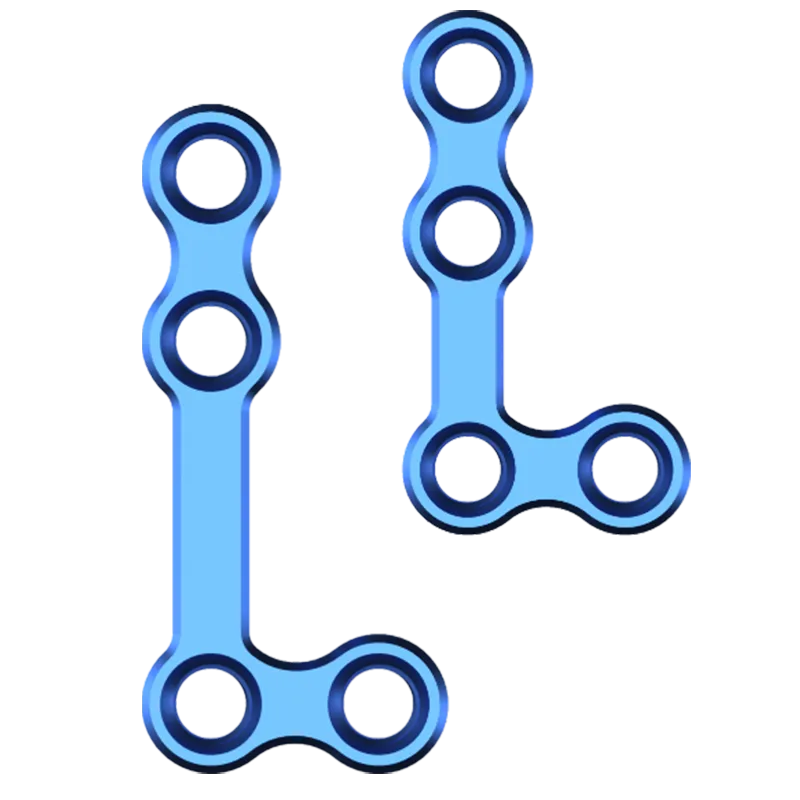

CMF – Locking L-Plate 90°

The right-angled locking L-plate is designed for corner fractures, offering firm fixation and precise support in perpendicular anatomical structures.

4 Holes
Cat No. (Left)	Thickness (mm)	Length (mm)	Cat No. (Right)
Ti.850.343 – Ti.850.344	1.5 mm	20, 24	Ti.850.345 – Ti.850.346

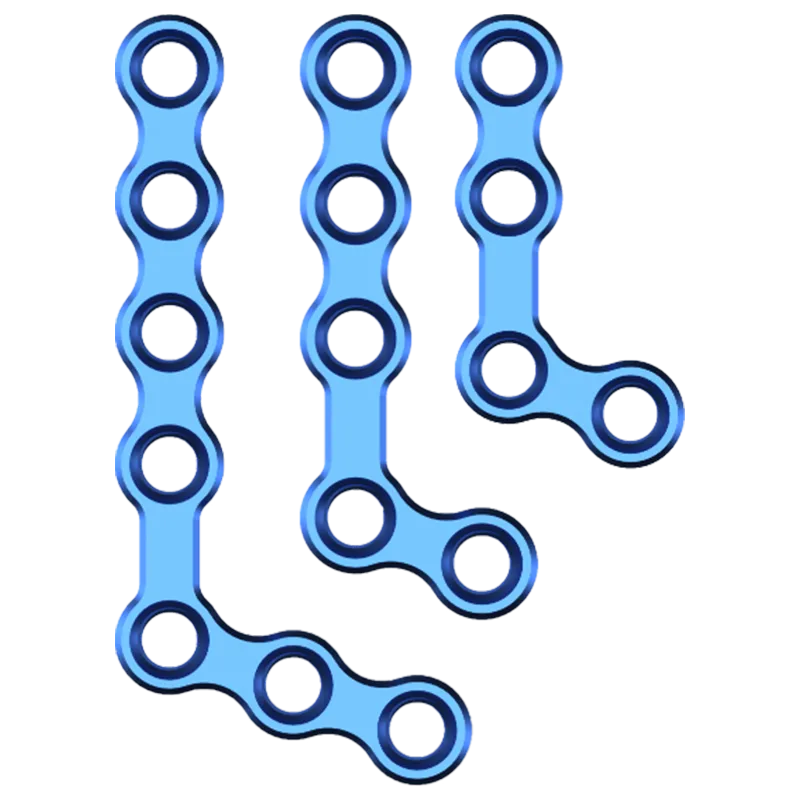

CMF – Locking L-Plate 110°

110° angled L-plate adapts to varied anatomical contours, ensuring secure fixation and flexibility in complex fracture management.

Thickness 1.5 mm
Cat No. (Left)	Holes	Length (mm)	Cat No. (Right)
Ti.850.348 – Ti.850.350	4, 5, 7	19, 25, 31	Ti.850.351 – Ti.850.353

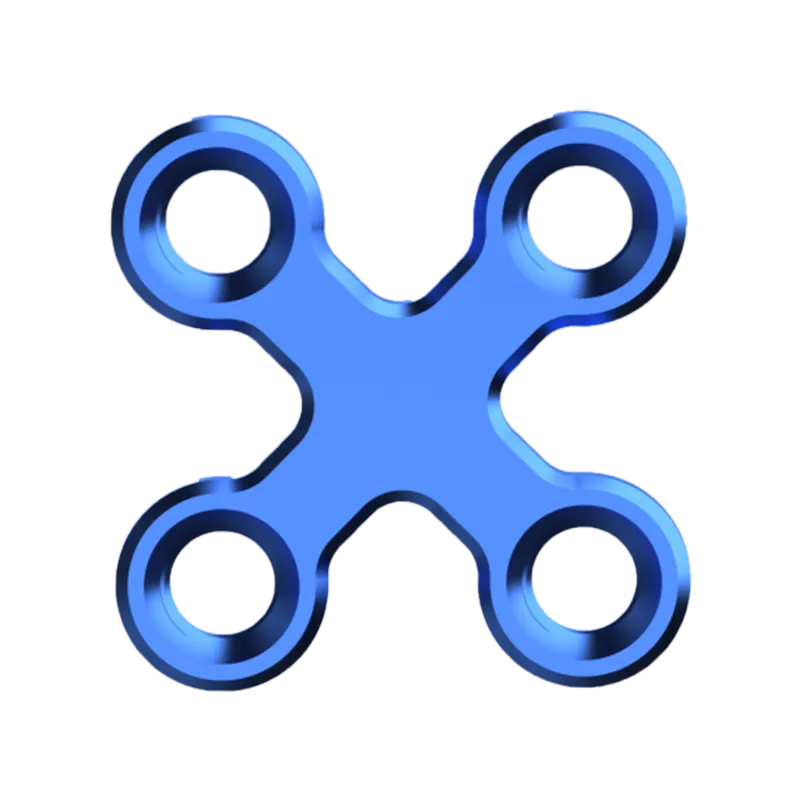

CMF – Locking X – Plate

The cross-shaped design of the locking X-plate provides multi-directional stability, ideal for central fracture zones requiring balanced and secure fixation.

Cat No.	Thickness	Holes	Length
Ti.850.355	1.5 mm	4	17 mm

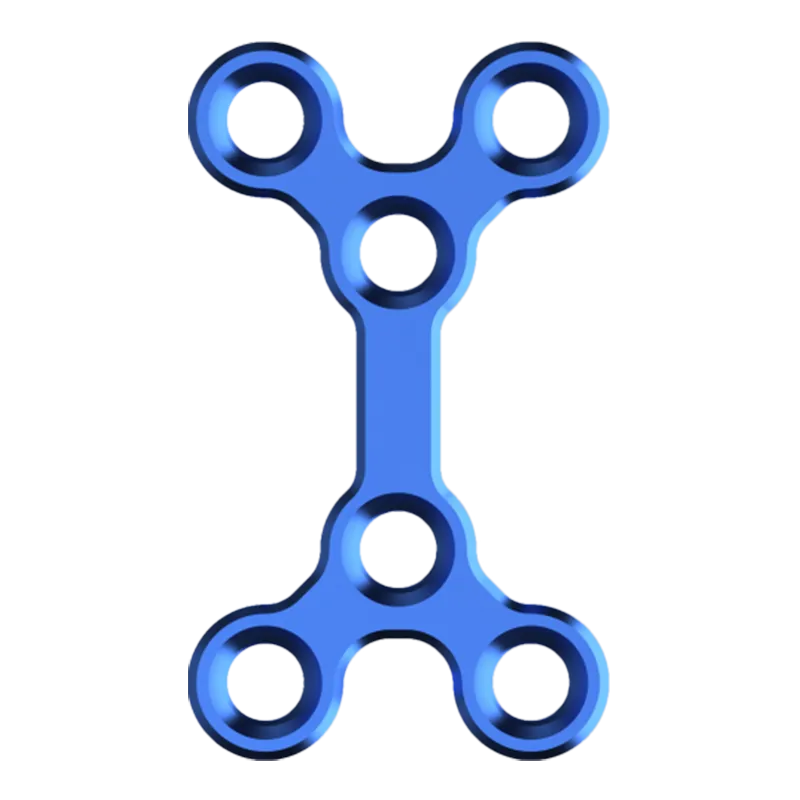

CMF – Locking Double Y- Plate

Double Y configuration enhances stability in complex fractures, supporting multiple fixation points for improved load distribution.

Cat No.	Thickness	Holes	Length
Ti.850.360	1.5 mm	6	23 mm

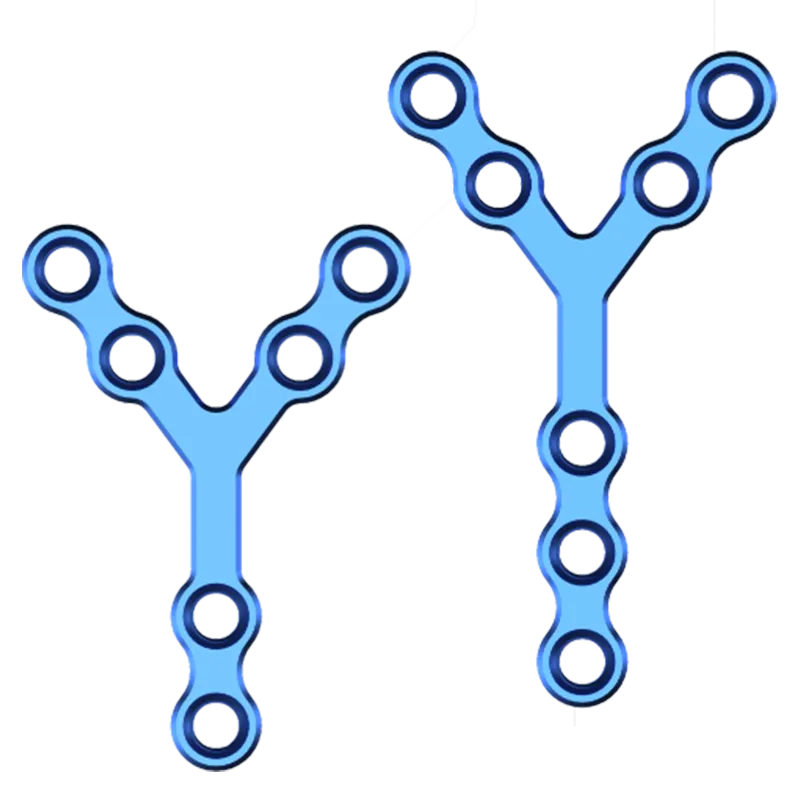

CMF – Locking Y- Plate

The Locking Y- plate allows effective fixation in branching fracture patterns, ensuring stability and anatomical alignment.

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.365 – Ti.850.366	1.5	6 – 7	30 – 36

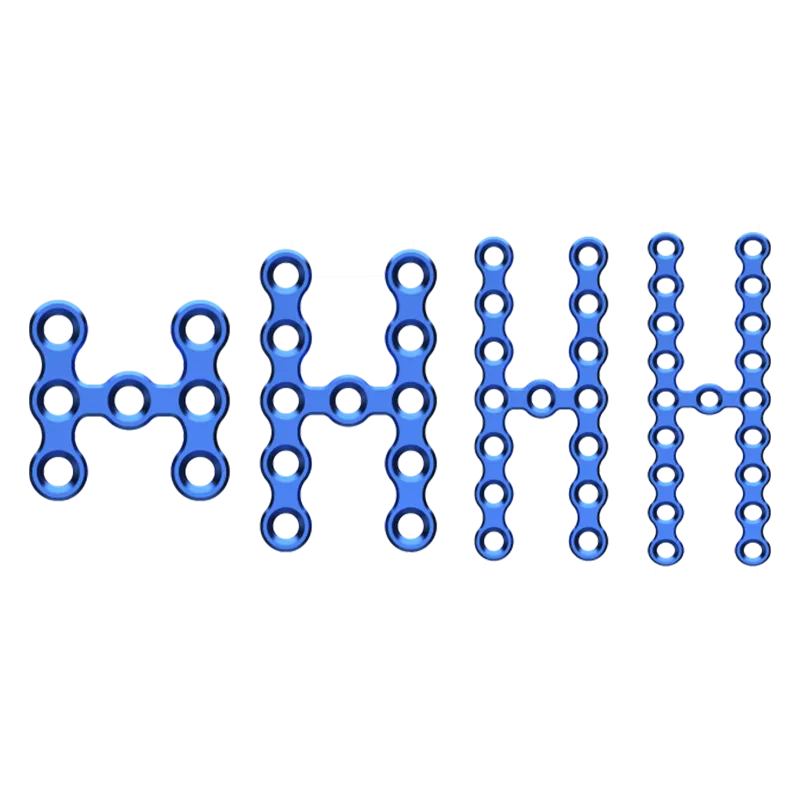

CMF – Locking H – Plate

The locking H-plate offers strong support across parallel fracture lines, improving stability and maintaining structural integrity.

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.370 – Ti.850.373	1.5	7, 11, 15, 19	17, 29, 41, 53

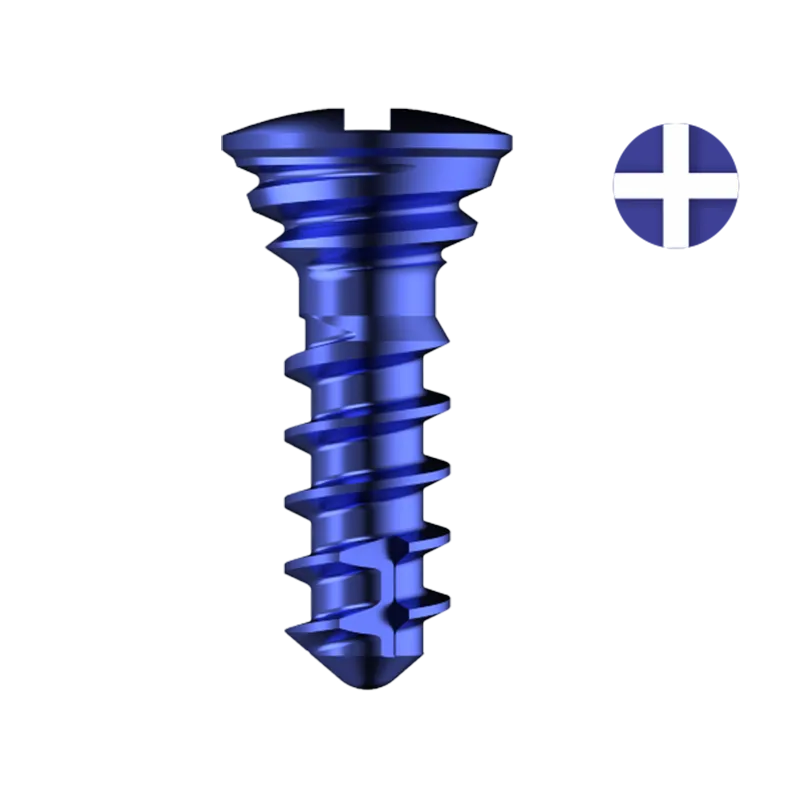

CMF – Cross Drive LOCKING Screw Self Tapping – 2.0 mm Dia.

Self-tapping locking screw ensures secure fixation, reduces surgical steps, and provides a strong hold within bone structures.

Cat No.	Length (mm)
Ti.126.105 – Ti.126.113	5.5, 7, 9, 11, 13

Cat No. XP.916.105 – CMF Drill Bit – Plain Shank Dia. 1.6mm x 12mm x 48mm Long to be use with all 2.2mm Locking & Non Locking Screws

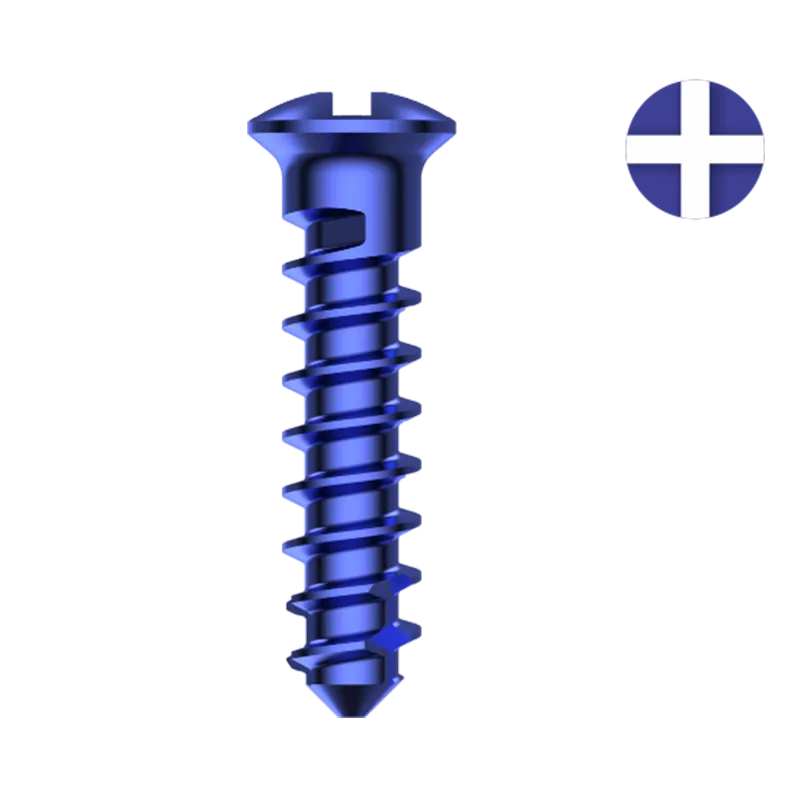

CMF – Cross Drive Non Locking Screw – Self Tapping – 2.0 mm Dia.

Non-locking self-tapping screw allows easy insertion, offering reliable compression and fixation in various maxillofacial applications.

Cat No.	Length (mm)
Ti.126.205 – Ti.126.213	5.5, 7, 9, 11, 13

Cat No. XP.916.105 – CMF Drill Bit – Plain Shank Dia. 1.6mm x 12mm x 48mm Long to be use with all 2.2mm Locking & Non Locking Screws

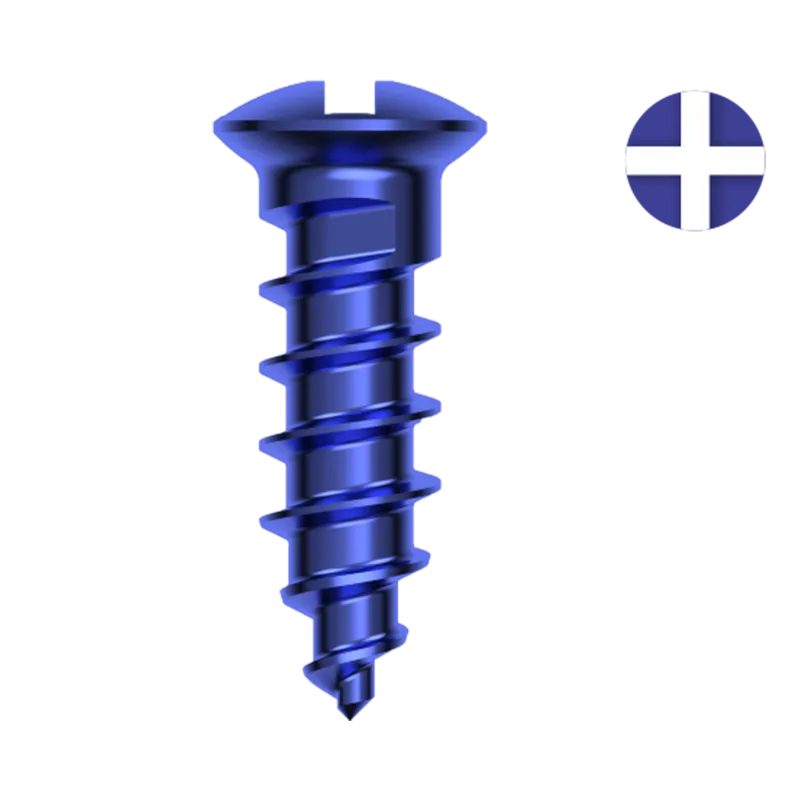

CMF – Cross Drive Non Locking Screw – Self Drilling – 2.0 mm Dia.

Self-drilling screw eliminates pre-drilling, simplifying procedures while ensuring firm fixation and reducing operative time.

Cat No.	Length (mm)
Ti.126.305 – Ti.126.311	5, 6, 7, 9, 11

Cat No. XP.916.105 – CMF Drill Bit – Plain Shank Dia. 1.6mm x 12mm x 48mm Long to be use with all 2.2mm Locking & Non Locking Screws

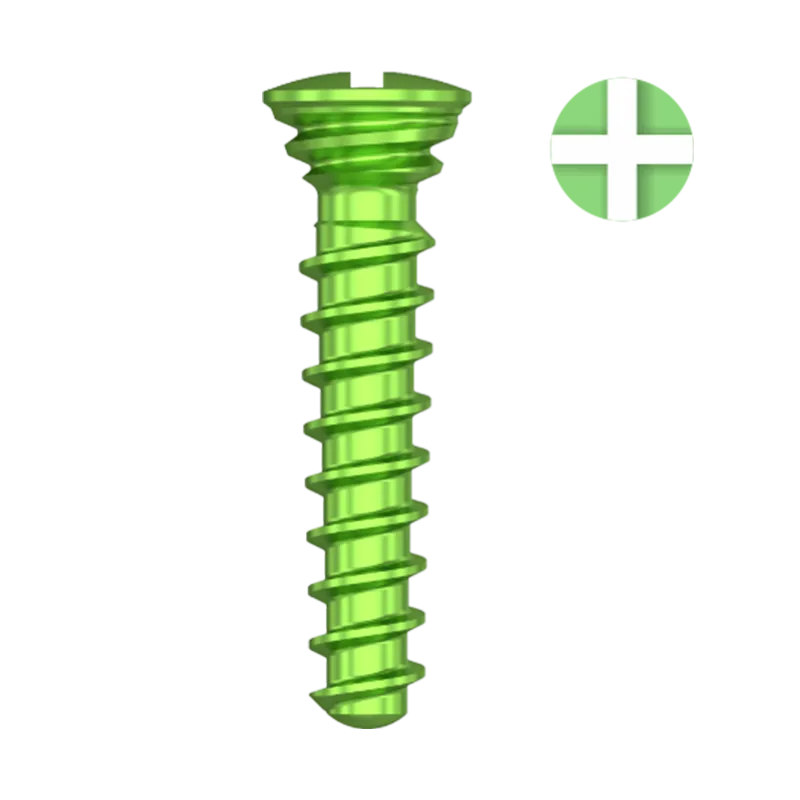

CMF – Locking Emergency Screw 2.3 mm Dia.

Designed for emergency use, provides quick and secure fixation in critical situations requiring immediate stabilization.

Cat No.	Length (mm)
Ti.126.406 – Ti.126.414	6, 7 , 8 , 9, 11, 13, 14

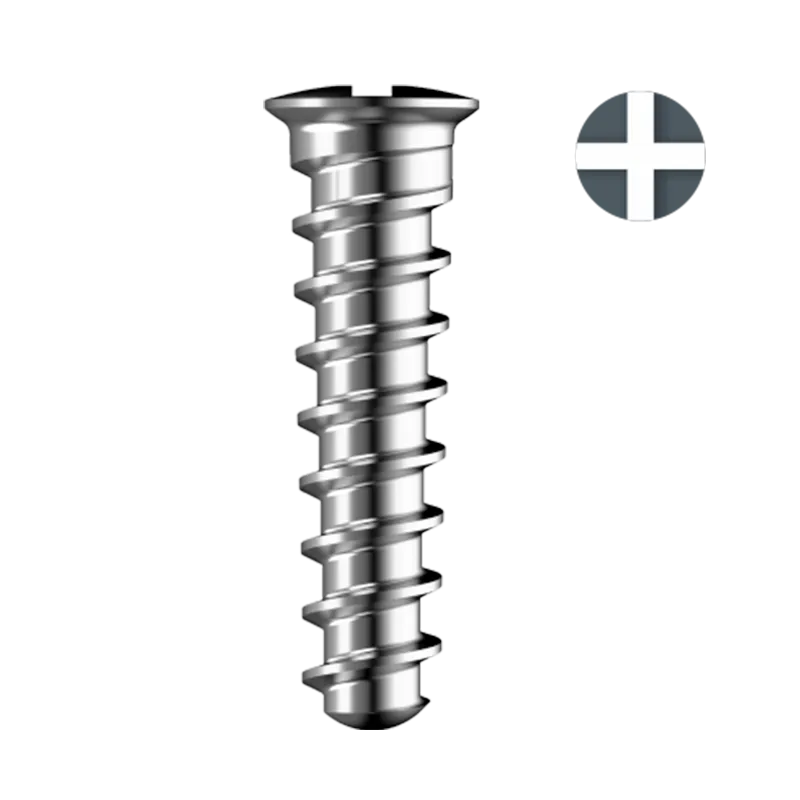

CMF – Non- Locking Emergency Screw 2.3 mm Dia.

The non-locking emergency screw 2.3mm Dia. ensures rapid application in urgent cases, delivering dependable fixation without locking mechanism support.

Cat No.	Length (mm)
Ti.126.506 – Ti.126.514	6, 7 , 8 , 9, 11, 13, 14

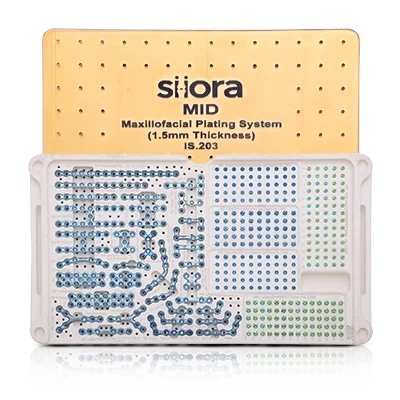

Mid Maxillofacial Plate (1.5mm Thickness) 2.0mm Screws System

The mid 1.5mm low-profile plate system containing a wide range of CMF plates ensures precise fixation in midface surgeries, offering strength, adaptability, and compatibility with 2.0 mm screws.

IS.203	MID MAXILLOFACIAL PLATE (1.5MM THICKNESS) 2.0MM SCREWS SYSTEM	Units
TI.850.301	CMF – Locking Straight Plate (Thickness 1.5MM) 6 Holes Length 35MM -Titanium	1
TI.850.302	CMF – Locking Straight Plate (Thickness 1.5MM) 8 Holes Length 47MM -Titanium	1
TI.850.303	CMF – Locking Straight Plate (Thickness 1.5MM) 12 Holes Length 71MM -Titanium	1
TI.850.304	CMF – Locking Straight Plate (Thickness 1.5MM) 16 Holes Length 95MM -Titanium	1
TI.850.310	CMF – Locking Straight Bridge Plate (Thickness 1.5MM) 4 Holes Length 29MM -Titanium	1
TI.850.311	CMF – Locking Straight Bridge Plate (Thickness 1.5MM) 6 Holes Length 41MM -Titanium	1
TI.850.315	CMF – Locking Arc Bridge Plate (Thickness 1.5MM) 4 Holes Length 29MM -Titanium	1
TI.850.316	CMF – Locking Arc Bridge Plate (Thickness 1.5MM) 6 Holes Length 40MM -Titanium	1
TI.850.320	CMF – Locking Arc Plate 120°Deg. (Thickness 1.5MM) 6 Holes Length 36MM -Titanium	1
TI.850.321	CMF – Locking Arc Plate 120°Deg. (Thickness 1.5MM) 8 Holes Length 46MM -Titanium	1
TI.850.330	CMF – Locking Rectangle Plate (Thickness 1.5MM) 8 Holes Length 25MM -Titanium	1
TI.850.331	CMF – Locking Rectangle Plate (Thickness 1.5MM) 12 Holes Length 38MM -Titanium	1
TI.850.332	CMF – Locking Rectangle Plate (Thickness 1.5MM) 16 Holes Length 51MM -Titanium	1
TI.850.340	CMF – Locking T- Plate (Thickness 1.5MM) 5 Holes Length 19MM -Titanium	1
TI.850.341	CMF – Locking T- Plate (Thickness 1.5MM) 7 Holes Length 31MM -Titanium	1
TI.850.343	CMF – Locking L-Plate 90°Deg. (Thickness 1.5MM) 4 Holes Length 20MM – Left – Titanium	1
TI.850.344	CMF – Locking L-Plate 90°Deg. (Thickness 1.5MM) 4 Holes Length 24MM – Left – Titanium	1
TI.850.345	CMF – Locking L-Plate 90°Deg. (Thickness 1.5MM) 4 Holes Length 20MM – Right- Titanium	1
TI.850.346	CMF – Locking L-Plate 90°Deg. (Thickness 1.5MM) 4 Holes Length 24MM -Right – Titanium	1
TI.850.348	CMF – Locking L-Plate 110°Deg. (Thickness 1.5MM) 4 Holes Length 19MM – Left -Titanium	1
TI.850.349	CMF – Locking L-Plate 110°Deg. (Thickness 1.5MM) 5 Holes Length 25MM – Left -Titanium	1
TI.850.350	CMF – Locking L-Plate 110°Deg. (Thickness 1.5MM) 7 Holes Length 31MM – Left -Titanium	1
TI.850.351	CMF – Locking L-Plate 110°Deg. (Thickness 1.5MM) 4 Holes Length 19MM – Right – Titanium	1
TI.850.352	CMF – Locking L-Plate 110°Deg. (Thickness 1.5MM) 5 Holes Length 25MM – Right – Titanium	1
TI.850.353	CMF – Locking L-Plate 110°Deg. (Thickness 1.5MM) 7 Holes Length 31MM – Right – Titanium	1
TI.850.355	CMF – Locking X – Plate (Thickness 1.5MM) 4 Holes Length 17MM -Titanium	1
TI.850.360	CMF – Locking Double Y- Plate (Thickness 1.5MM) 6 Holes Length 23MM -Titanium	1
TI.850.365	CMF – Locking Y- Plate (Thickness 1.5MM) 6 Holes Length 30MM -Titanium	1
TI.850.366	CMF – Locking Y- Plate (Thickness 1.5MM) 7 Holes Length 36MM -Titanium	1
TI.850.370	CMF – Locking H- Plate (Thickness 1.5MM) 7 Holes Length 17MM -Titanium	1
TI.850.371	CMF – Locking H- Plate (Thickness 1.5MM) 11 Holes Length 29MM -Titanium	1
TI.850.372	CMF – Locking H – Plate (Thickness 1.5MM) 15Holes Length 41MM -Titanium	1
TI.850.373	CMF – Locking H – Plate (Thickness 1.5MM) 19 Holes Length 53MM -Titanium	1
Ti.126.105	CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 2.0mm Length 5.5mm -Titanium	10
Ti.126.107	CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 2.0mm Length 7mm -Titanium	10
Ti.126.109	CMF – Cross Drive LOCKING Screw -Self Tapping – Dia 2.0mm Length 9mm -Titanium	10
Ti.126.111	CMF – Cross Drive LOCKING Screw -Self Tapping – Dia 2.0mm Length 11mm -Titanium	10
Ti.126.113	CMF – Cross Drive LOCKING Screw -Self Tapping – Dia 2.0mm Length 13mm -Titanium	10
Ti.126.205	CMF – Cross Drive NON Locking Screw – Self Tapping – Dia 2.0mm Length 5.5mm -Titanium	10
Ti.126.207	CMF – Cross Drive NON Locking Screw – Self Tapping – Dia 2.0mm Length 7mm -Titanium	10
Ti.126.209	CMF – Cross Drive NON Locking Screw – Self Tapping – Dia 2.0mm Length 9mm -Titanium	10
Ti.126.211	CMF – Cross Drive NON Locking Screw – Self Tapping – Dia 2.0mm Length 11mm -Titanium	10
Ti.126.213	CMF – Cross Drive NON Locking Screw – Self Tapping – Dia 2.0mm Length 13mm -Titanium	10
TI.126.305	CMF – Cross Drive NON Locking Screw – Self Drilling – Dia 2.0mm Length 5mm -Titanium	10
TI.126.306	CMF – Cross Drive NON Locking Screw – Self Drilling – Dia 2.0mm Length 6mm -Titanium	10
TI.126.307	CMF – Cross Drive NON Locking Screw – Self Drilling – Dia 2.0mm Length 7mm -Titanium	10
TI.126.309	CMF – Cross Drive NON Locking Screw – Self Drilling – Dia 2.0mm Length 9mm -Titanium	10
TI.126.311	CMF – Cross Drive NON Locking Screw – Self Drilling – Dia 2.0mm Length 11mm -Titanium	10
Ti.126.406	CMF – Locking EMERGENCY Screw – Dia 2.3mm Length 6mm -Titanium	10
Ti.126.407	CMF – Locking EMERGENCY Screw – Dia 2.3mm Length 7mm -Titanium	10
Ti.126.408	CMF – Locking EMERGENCY Screw – Dia 2.3mm Length 8mm -Titanium	10
Ti.126.409	CMF – Locking EMERGENCY Screw – Dia 2.3mm Length 9mm -Titanium	10
Ti.126.411	CMF – Locking EMERGENCY Screw – Dia 2.3mm Length 11mm -Titanium	10
Ti.126.413	CMF – Locking EMERGENCY Screw – Dia 2.3mm Length 13mm -Titanium	10
Ti.126.414	CMF – Locking EMERGENCY Screw – Dia 2.3mm Length 14mm -Titanium	10
Ti.126.506	CMF – NON Locking EMERGENCY Screw – Dia 2.3mm Length 6mm -Titanium	10
Ti.126.507	CMF – NON Locking EMERGENCY Screw – Dia 2.3mm Length 7mm -Titanium	10
Ti.126.508	CMF – NON Locking EMERGENCY Screw – Dia 2.3mm Length 8mm -Titanium	10
Ti.126.509	CMF – NON Locking EMERGENCY Screw – Dia 2.3mm Length 9mm -Titanium	10
Ti.126.511	CMF – NON Locking EMERGENCY Screw – Dia 2.3mm Length 11mm -Titanium	10
Ti.126.513	CMF – NON Locking EMERGENCY Screw – Dia 2.3mm Length 13mm -Titanium	10
Ti.126.514	CMF – NON Locking EMERGENCY Screw – Dia 2.3mm Length 14mm -Titanium	10
400.173	Implant Box for MID Maxillofacial Plate (1.5mm Thickness) 2.0mm Screws System (Medical Grade Plastic)	1

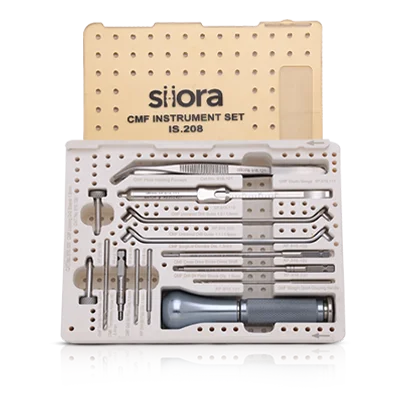

CMF Instrument Set

The oral maxillofacial surgical instruments set by Siora Surgicals Pvt. Ltd. is designed with ergonomics and performance in mind. These CMF instruments are surgeon-friendly and easy to sterilize & maintain, making them suitable for repeated use. This comprehensive maxillofacial trauma instrument set is a dependable choice for modern maxillofacial surgeries.

Cat No. IS.208	Description	Units
XP.916.101	CMF Straight Quick Coupling Handle	1
XP.916.102	CMF Cross Drive Screw Driver Shaft	1
XP.916.103	CMF Surgical Elevator 1.5mm Dia.	1
XP.916.104	CMF Drill Bit – Plain Shank Dia. 1.1mm X 8.5mm X 48mm Long	1
XP.916.105	CMF Drill Bit – Plain Shank Dia. 1.6mm X 12mm X 48mm Long	1
XP.916.106	CMF Drill Bit – Plain Shank Dia. 1.9mm X 22mm X 58mm Long	1
XP.916.107	CMF Drill Bit – Plain Shank Dia. 1.9mm X 57mm X 82mm Long	1
XP.916.108	CMF Temporary Holder HC 2.4mm	2
XP.916.109	CMF Universal Drill Guide 1.1/1.6mm	1
XP.916.110	CMF Universal Drill Guide 1.6/1.9mm	1
XP.916.111	CMF Depth Gauge	1
916.120	CMF Locking Drill Sleeve 1.9mm	2
916.121	CMF Plate Holding Forceps	1
400.177	Instrument Box for Maxillofacial Plating System (Medical Grade Plastic)	1

frequently asked questions

What is included in the 1.5 mm maxillofacial plate system offered by Siora Surgicals Pvt. Ltd.?

The system includes a comprehensive range of titanium locking plates, such as straight plates, bridge plates, arc plates, L/T/Y/X/H configurations, along with compatible 2.0mm (locking and non-locking) and 2.3mm screws (Emergency screws). It is designed for midface trauma and reconstruction procedures.

Which material is used in the manufacturing of the midface locking plate system 1.5 mm?

The system is manufactured using medical-grade titanium, ensuring excellent biocompatibility, corrosion resistance, and long-term stability in cranio-maxillofacial applications.

What types of plates are available in the midface locking plate system 1.5 mm?

The system includes multiple plate configurations:

Locking Straight Plate

Locking Straight Bridge Plate

Locking Arc Plate (120°)

Locking L-Plate (90° & 110°)

Locking T, Y, Double Y, X, and H Plates

Locking Rectangle Plate

These variations allow surgeons to address complex anatomical structures.

Are the plates compatible with both locking and non-locking screws?

Yes, the system supports both locking and non-locking screws, including self-tapping and self-drilling variants, offering flexibility during surgical procedures.

What screw sizes are compatible with this system?

The system primarily uses:

2.0 mm diameter screws (locking & non-locking)

2.3 mm emergency screws for intraoperative flexibility

Are these implants suitable for global distribution and export?

Yes, the system is designed to meet international regulatory and quality requirements, making it suitable for distribution across Europe, Asia, Africa, and other global markets.

Does Siora Surgicals offer OEM/private labeling for maxillofacial plate systems?

Yes, Siora Surgicals Pvt. Ltd. provides OEM and private labeling services for international distributors and importers.

What is the minimum order quantity (MOQ) for bulk purchases?

MOQ depends on product type and customization requirements. Bulk orders for distributors and hospitals are supported with competitive pricing.

How is the product packaged for international shipments?

The system is supplied in sterile or non-sterile packaging, with organized implant trays and labeling in accordance with ISO 14644, suitable for export and hospital use.

How does a locking plate system improve surgical outcomes?

Locking plates provide angular stability, reduce micro-movements, and improve fixation strength, especially in osteoporotic or thin facial bones.

Can this system be customized for specific market requirements?

Yes, customization options such as branding, kit configurations, and packaging are available for clients.

Leave A Message

If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
