CMF – Locking X – Plate

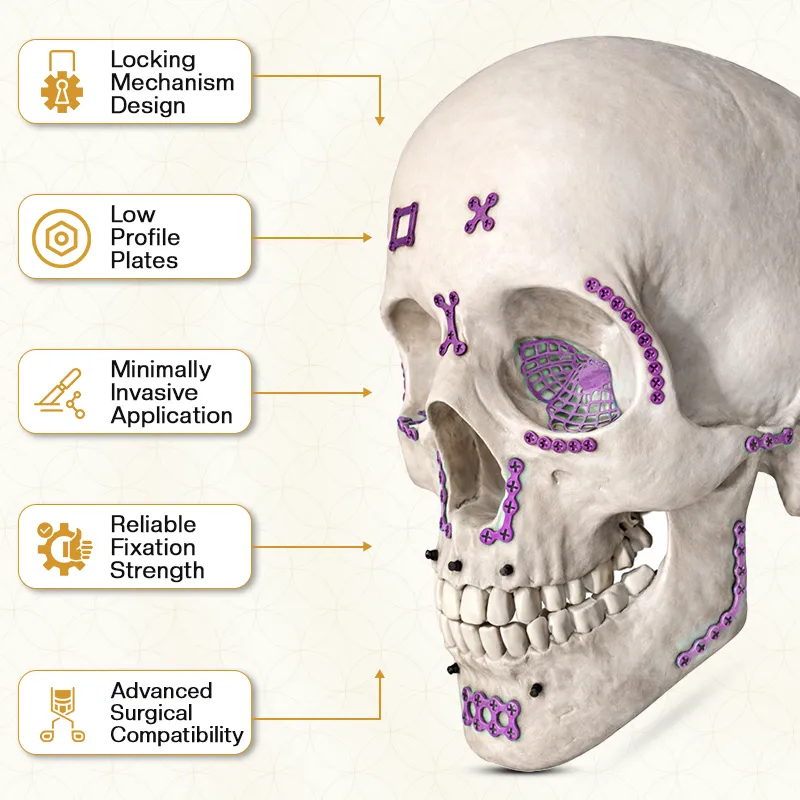

The Maxillofacial Implant Mini 0.6–0.8mm System by Siora Surgicals Pvt. Ltd. is designed for precise fixation in delicate cranio-maxillofacial procedures. Engineered with exceptional accuracy, these ultra-small implants are ideal for pediatric and fine bone surgeries where minimal hardware is essential. Due to their extremely small size, such a mini CMF locking plate system is manufactured by only a limited number of companies worldwide, and Siora stands among the few trusted names offering this advanced solution. Made from high-quality, biocompatible titanium, the micro maxillofacial implants system ensures optimal stability, reduced trauma, and reliable clinical outcomes, meeting international standards for safety, performance, and surgical excellence.
Ultra-small 0.6–0.8mm design ensures precise fixation in delicate cranio-maxillofacial procedures, especially in pediatric and fine bone surgeries.
Manufactured using high-grade, biocompatible titanium for enhanced safety, durability, and optimal patient outcomes.
Designed to reduce surgical trauma, supporting quicker recovery and improved patient comfort.
Provides excellent stability and secure fixation despite its compact size.
Compatible with modern surgical instruments and techniques for seamless procedural efficiency.
Limited availability worldwide due to its extremely small size, with Siora Surgicals Pvt. Ltd. among the few trusted manufacturers offering these specialized CMF implants.

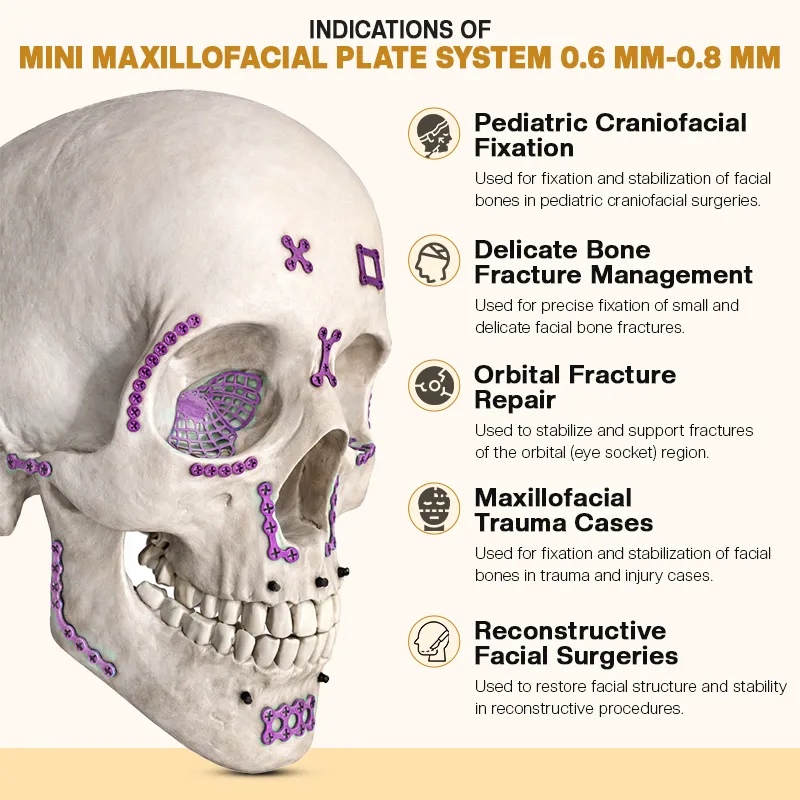

Ideal for stabilizing fractures and deformities in pediatric patients where smaller cranio maxillofacial micro plate system implants are required.
Suitable for fixation of thin and fragile bones in the cranio-maxillofacial region.
Orbital fracture plate system 0.6 mm – 0.8mm is used in the reconstruction and stabilization of orbital wall fractures with high precision.
Effective in treating minor to complex facial trauma requiring a micro maxillofacial implants system.
Supports accurate alignment and fixation during reconstructive procedures of the facial skeleton.
Ideal for use in precise osteotomies where minimal hardware and high accuracy are essential.
As one of the few micro maxillofacial implants system manufacturers, Siora offers a comprehensive range of mini CMF implants in various types and sizes to suit diverse patient anatomies and conditions.

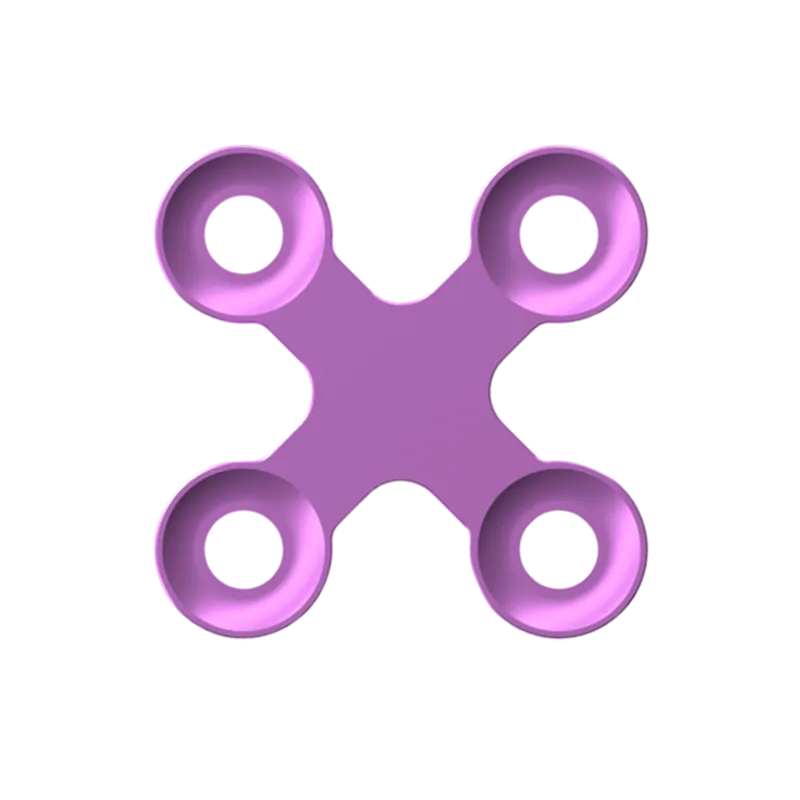

CMF locking X-plate provides multidirectional stability for complex fractures, ensuring secure fixation, even load distribution, and reliable performance in cranio-maxillofacial surgical applications.
| Cat No. | Thickness | Holes | Length |
| Ti.850.101 | 0.6mm | 4 | 14 mm |

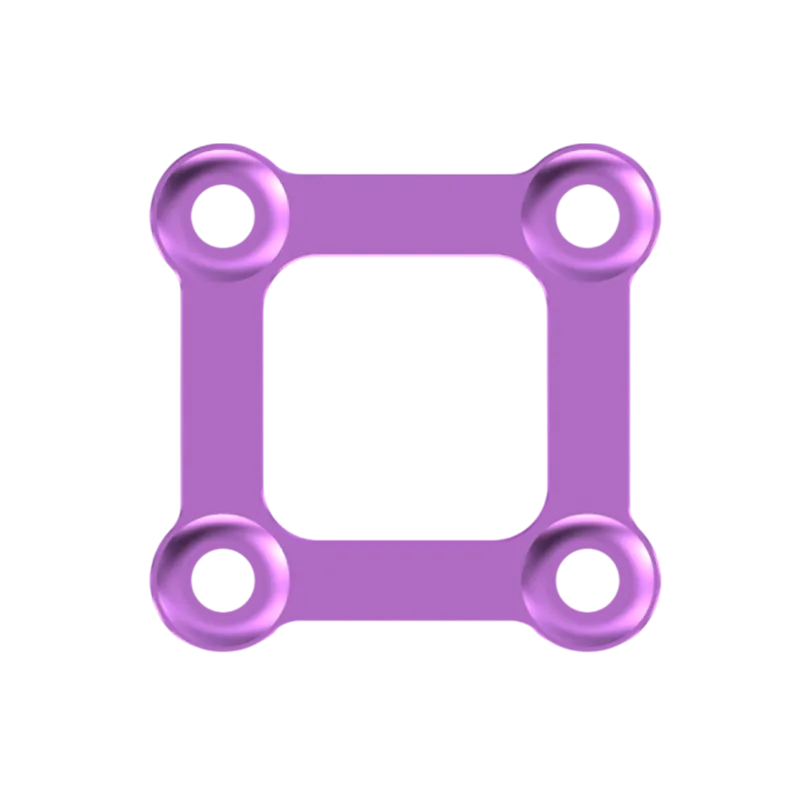

Designed for rigid fixation in linear fractures, the locking CMF rectangular plate offers enhanced stability, precise adaptation, and consistent support in maxillofacial reconstructive procedures.
| Cat No. | Thickness | Holes | Length |
| Ti.850.102 | 0.6mm | 4 | 14 mm |

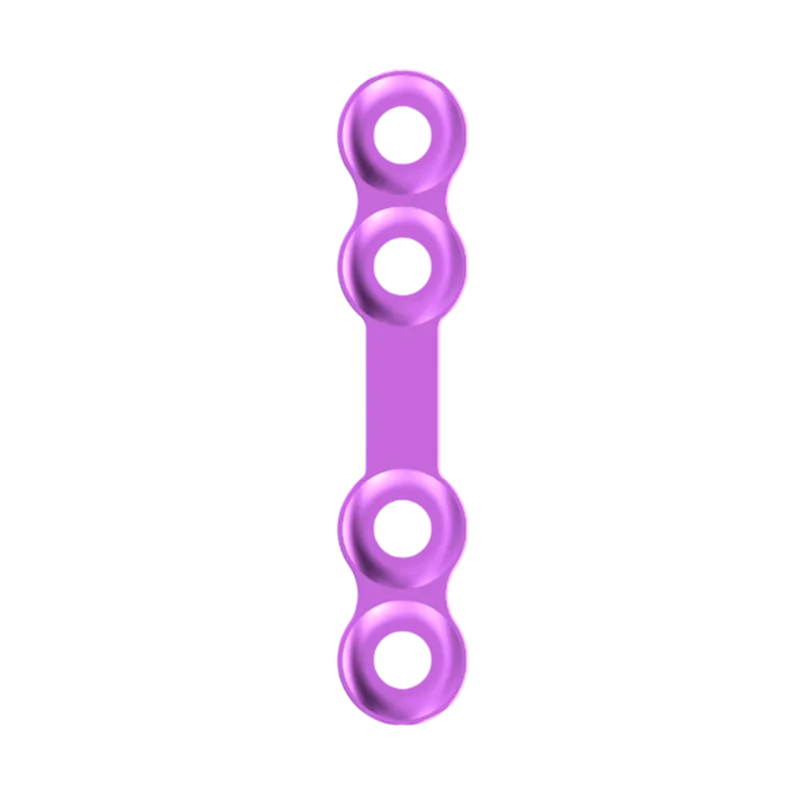

Following Size of CMF – Locking Straight Bridge Plate is available in Titanium Material:
| Cat No. | Thickness | Holes | Length |
| Ti.850.103 | 0.6mm | 4 | 20 mm |

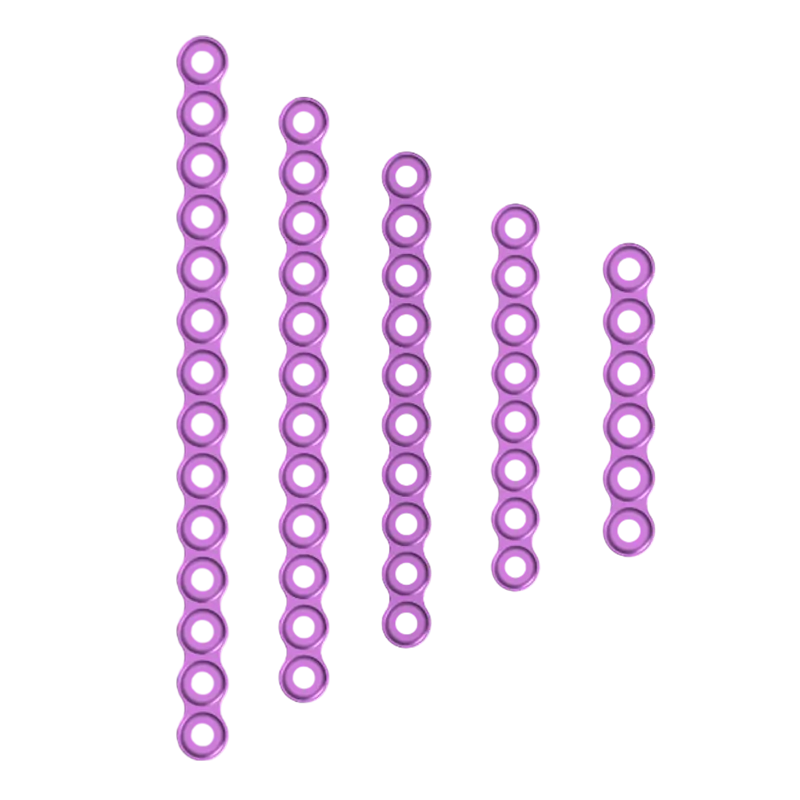

This straight bridge locking CMF plate is ideal for bridging comminuted fractures, maintaining bone alignment without disturbing the fracture site, ensuring strength, and stability during the healing process.
| Cat No. | Thickness | Holes | Length (mm) |
| Ti.850.110 – Ti.850.114 | 0.6mm | 6 – 14 | 24 – 56 |

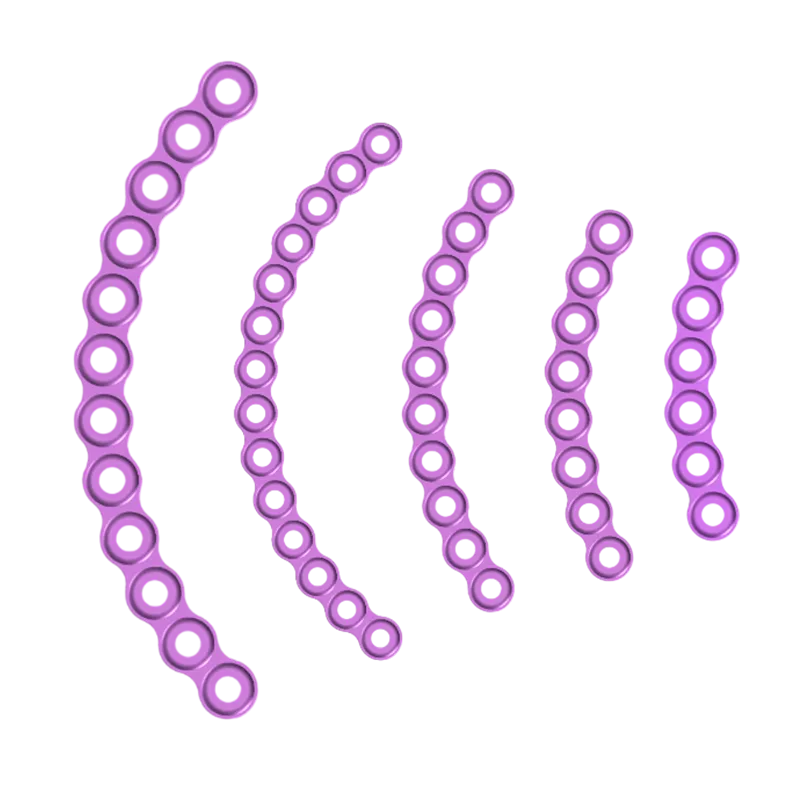

The curved design of the locking arch CMF plate allows anatomical adaptation to facial contours, providing secure fixation and improved outcomes in complex cranio-maxillofacial surgeries.
| Cat No. | Thickness | Holes | Length (mm) |
| Ti.850.120 – Ti.850.124 | 0.6mm | 6 – 14 | 24 – 49 |

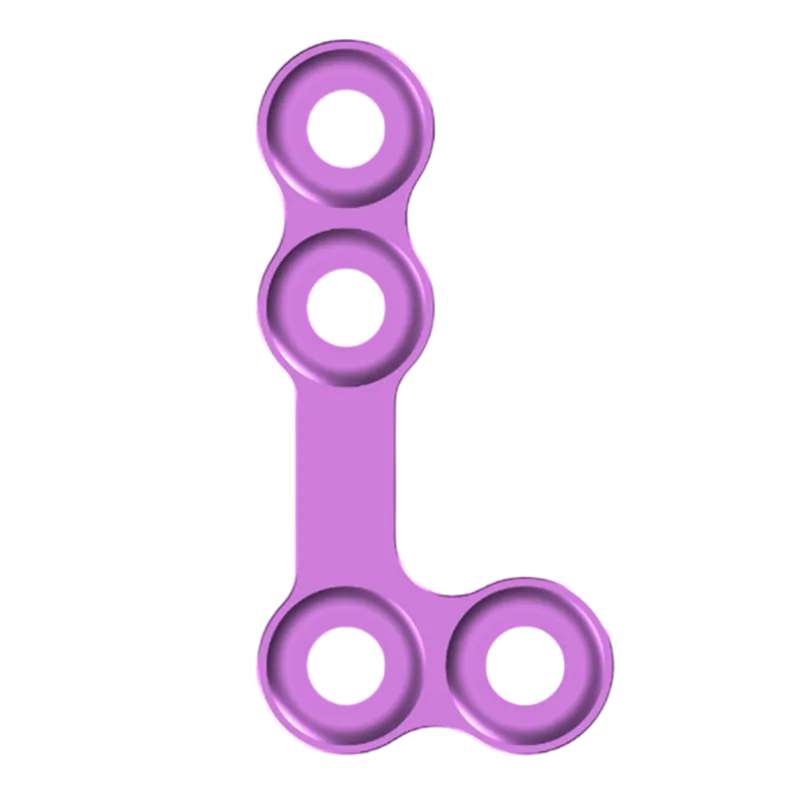

Designed for right-angle fixation in mandibular and midface fractures, this 90° L-plate ensures strong support and precise stabilization in challenging anatomical areas.
| Cat No. | Thickness | Holes | Length |
| Ti.850.130 | 0.6mm | 4 | 16 mm |

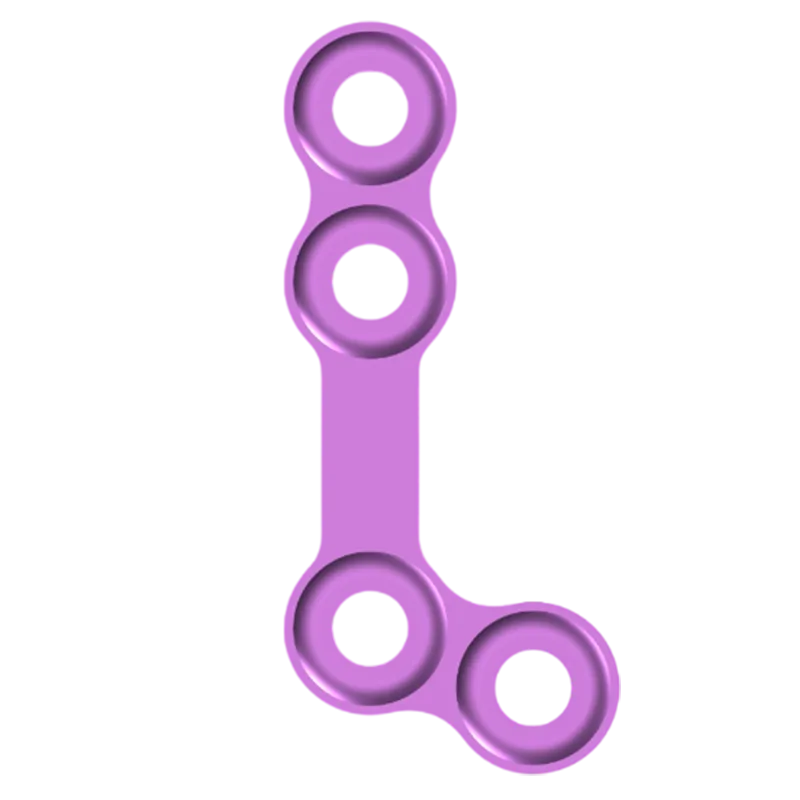

Provides angled fixation for anatomically demanding regions, ensuring optimal plate positioning, stability, and enhanced surgical flexibility during reconstruction procedures.
| Cat No. | Thickness | Holes | Length |
| Ti.850.135 | 0.6mm | 4 | 16 mm |
| Cat No. | Thickness | Holes | Length |
| Ti.850.136 | 0.6mm | 5 | 20 mm |

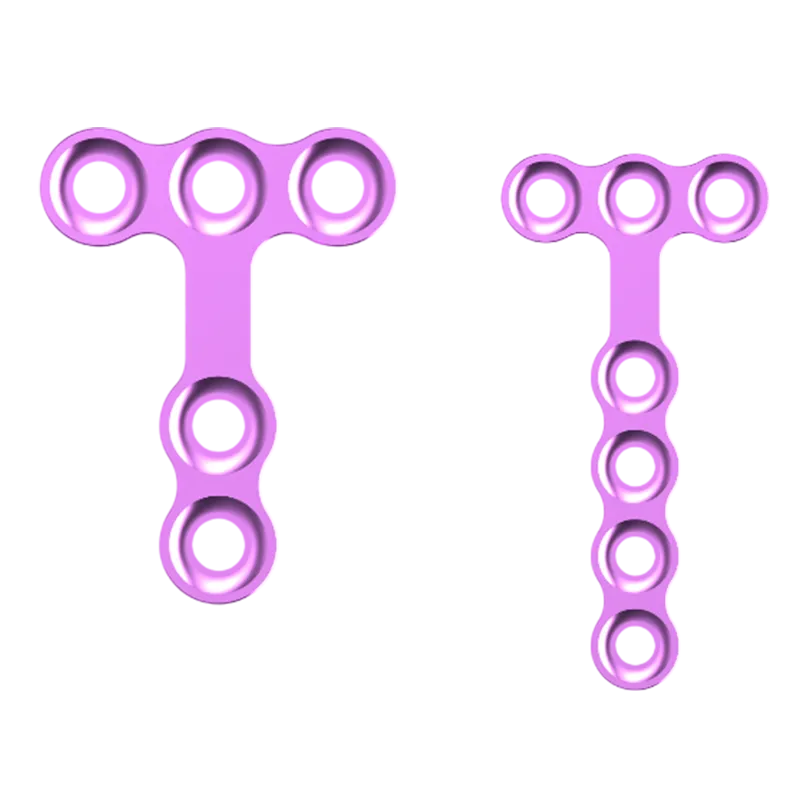

Ideal for fractures requiring three-point fixation, the CMF locking T plate offers excellent stability, load distribution, and support in complex cranio-maxillofacial surgical applications.
| Cat No. | Thickness | Holes | Length |
| Ti.850.140 | 0.6mm | 5 | 16 mm |
| Ti.850.141 | 0.6mm | 7 | 24 mm |

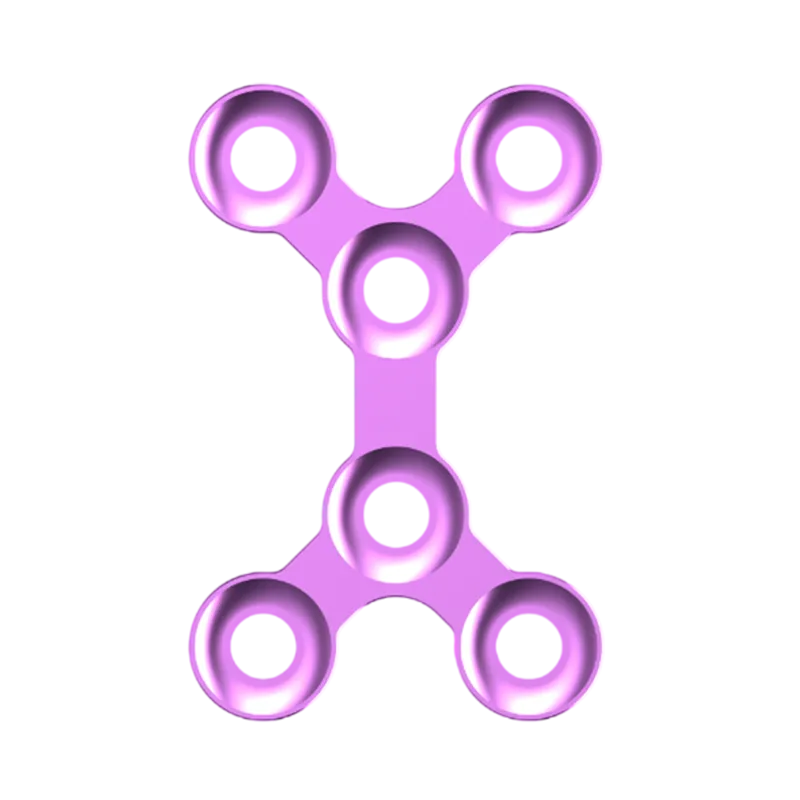

Ensures multidirectional fixation for complex fractures, providing superior stability and adaptability in intricate craniofacial reconstruction procedures with reliable outcomes.
| Cat No. | Thickness | Holes | Length |
| Ti.850.145 | 0.6mm | 6 | 17 mm |

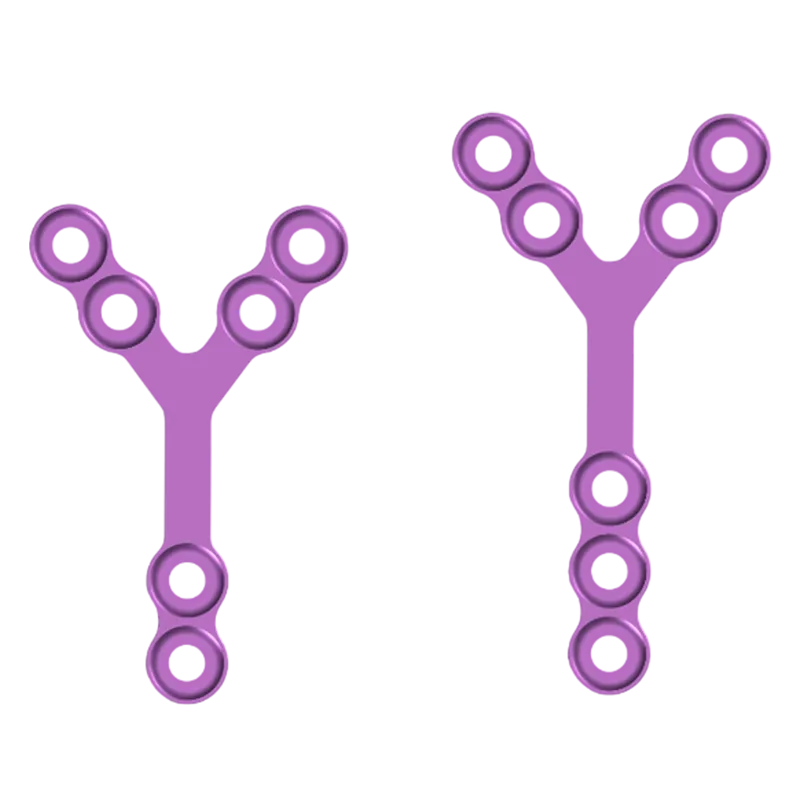

The CMF locking Y plate is designed for versatile fixation, offering balanced support and stability in fractures involving multiple bone segments within cranio-maxillofacial structures.
| Cat No. | Thickness | Holes | Length |
| Ti.850.150 | 0.6mm | 6 | 24 mm |
| Ti.850.151 | 0.6mm | 7 | 28 mm |

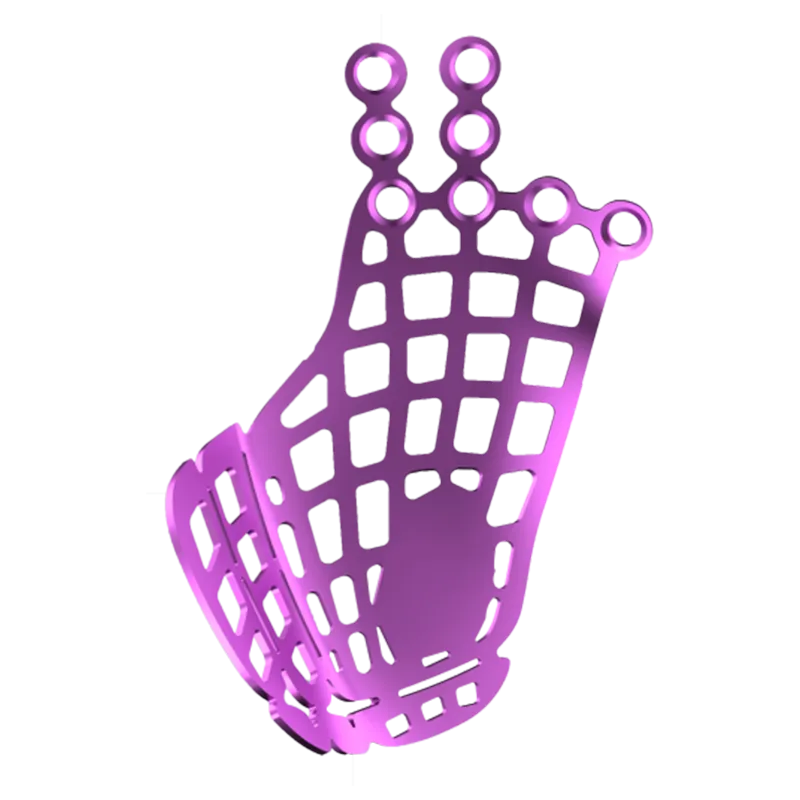

The preformed orbital plate is anatomically shaped for orbital floor reconstruction, ensuring a precise fit, structural support, and restoration of orbital integrity in trauma cases.
| Cat No. | Product Name |

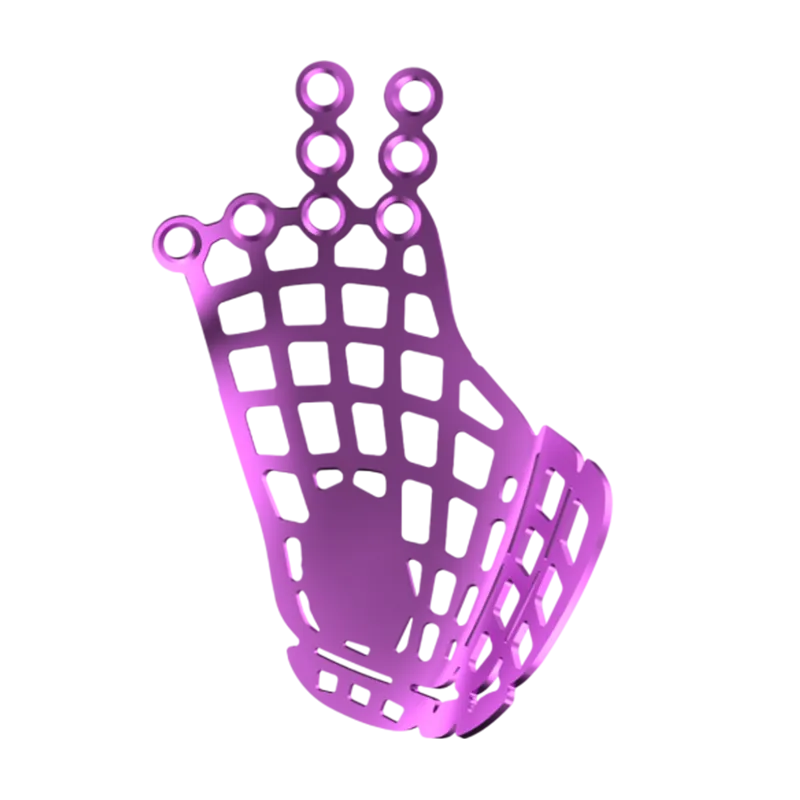

| Ti.850.160 | CMF – Preformed Orbital Plate – Small – Left |
| Cat No. | Product Name |
| Ti.850.165 | CMF – Preformed Orbital Plate – Small – Right |
| Cat No. | Product Name |

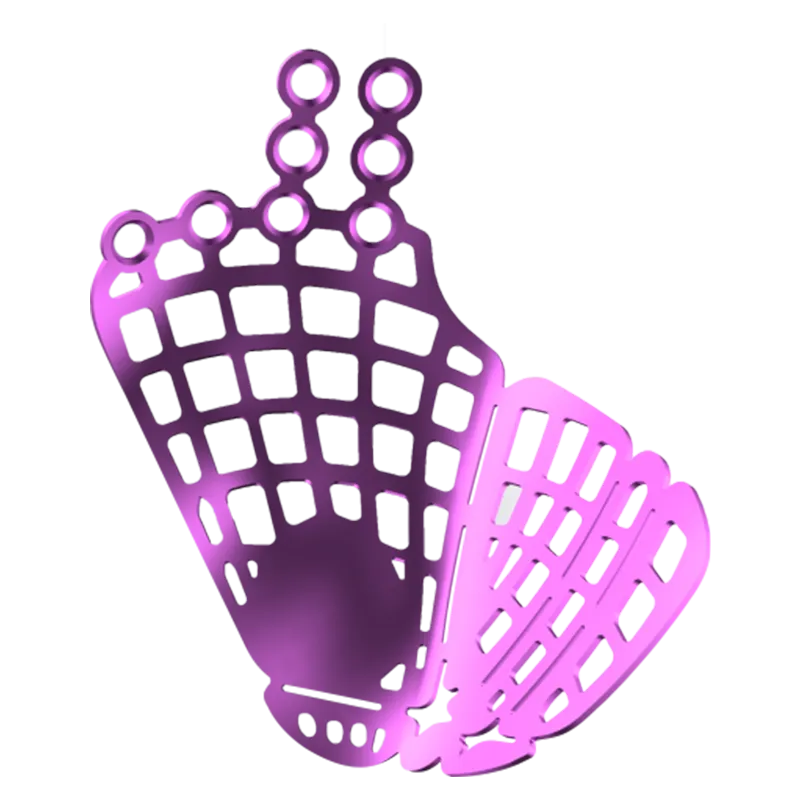

| Ti.850.170 | CMF – Preformed Orbital Plate – Large – Left |
| Cat No. | Product Name |

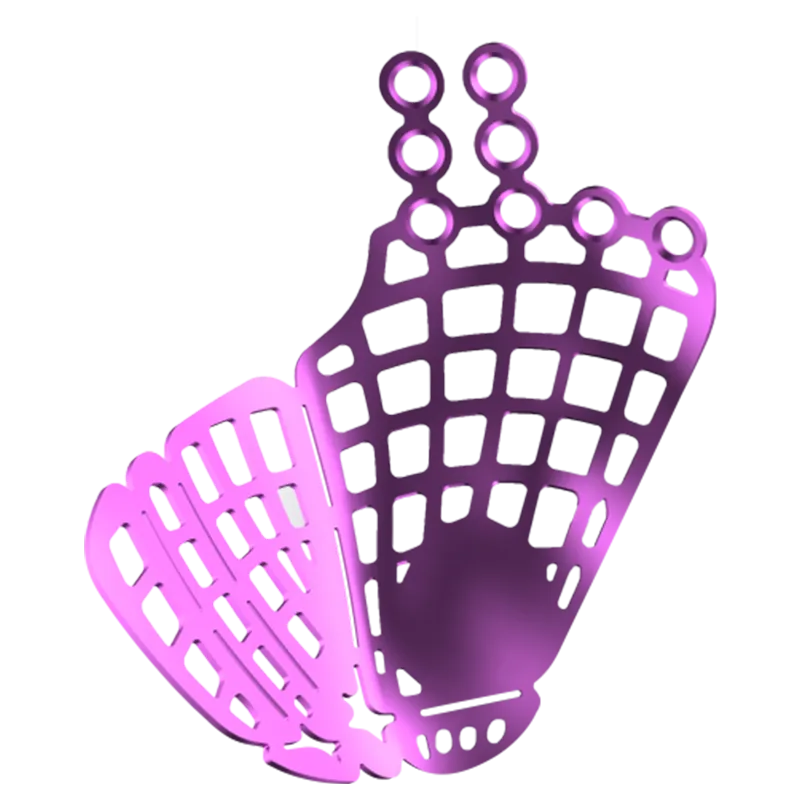

| Ti.850.175 | CMF – Preformed Orbital Plate – Large – Right |

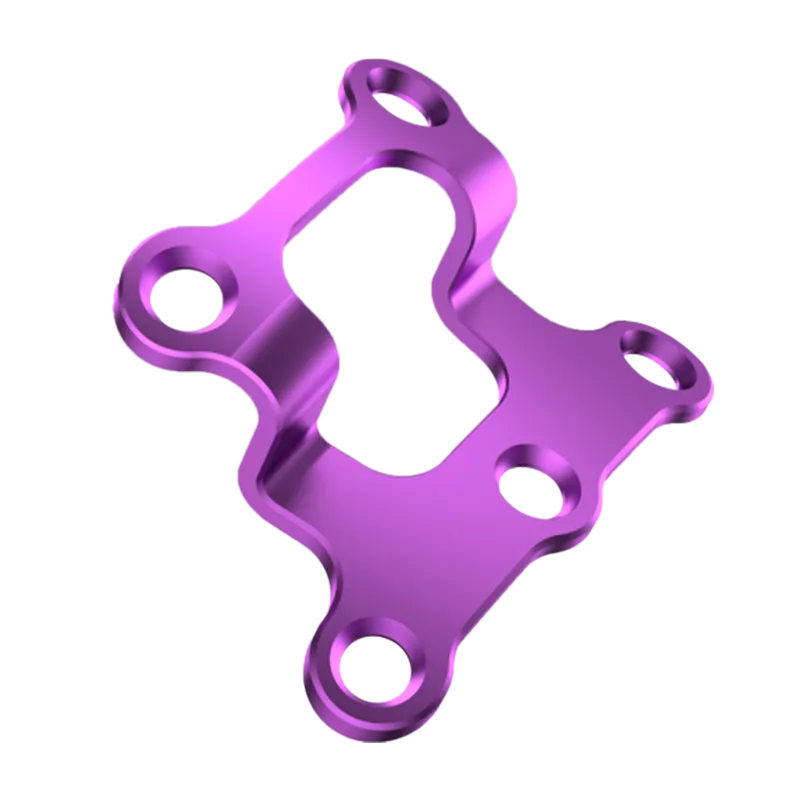

Specifically designed for chin surgeries, the genioplasty plate CMF provides stable fixation, accurate contouring, and reliable support during genioplasty and facial aesthetic procedures.
| Cat No. | Thickness | Holes | Length (mm) |
| Ti.850.181 – Ti.850.183 | 0.8mm | 5 | 6 – 10 |

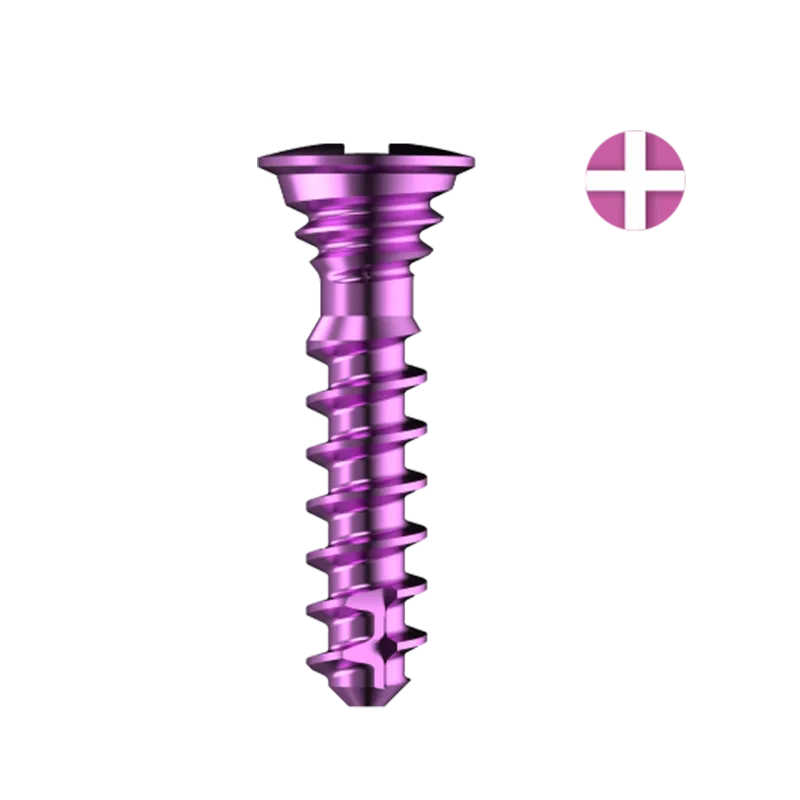

Ensures strong locking fixation with self-tapping design, reducing surgical time and enhancing stability in maxillofacial implant systems.
| Cat No. | Length (mm) |
| Ti.125.104 – Ti.125.108 | 4 – 8 |
Cat No. XP.916.104 – CMF Drill Bit – Plain Shank Dia. 1.1mm x 8.5mm x 48mm Long to be use with all 1.5mm Locking & Non Locking Screws

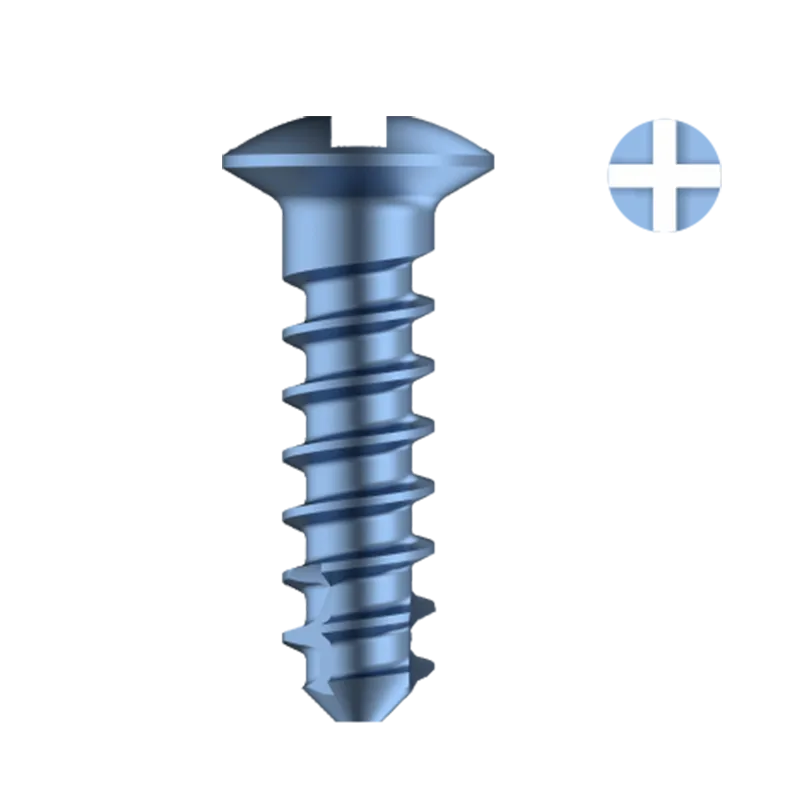

This screw provides reliable fixation with easy insertion, offering flexibility and efficiency in various cranio-maxillofacial surgical procedures.
| Cat No. | Length (mm) |
| Ti.125.204 – Ti.125.208 | 4 – 8 |
Cat No. XP.916.104 – CMF Drill Bit – Plain Shank Dia. 1.1mm x 8.5mm x 48mm Long to be use with all 1.5mm Locking & Non Locking Screws

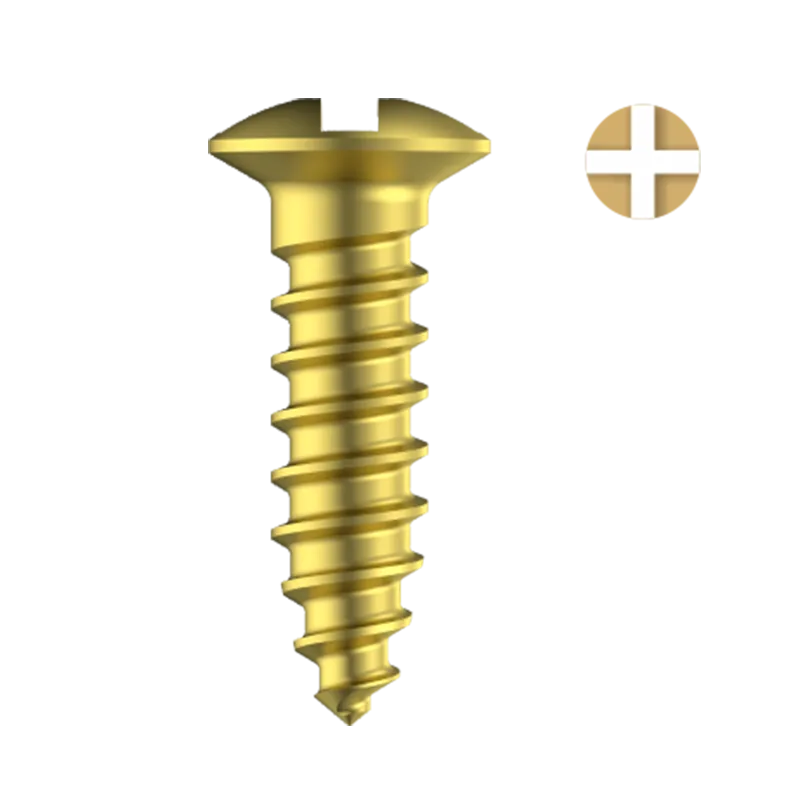

This non-locking CMF screw eliminates the pre-drilling requirement, enabling faster insertion, reduced operative time, and efficient fixation in surgical applications.
| Cat No. | Length (mm) |
| Ti.125.304 – Ti.125.308 | 4 – 8 |
Cat No. XP.916.104 – CMF Drill Bit – Plain Shank Dia. 1.1mm x 8.5mm x 48mm Long to be use with all 1.5mm Locking & Non Locking Screws

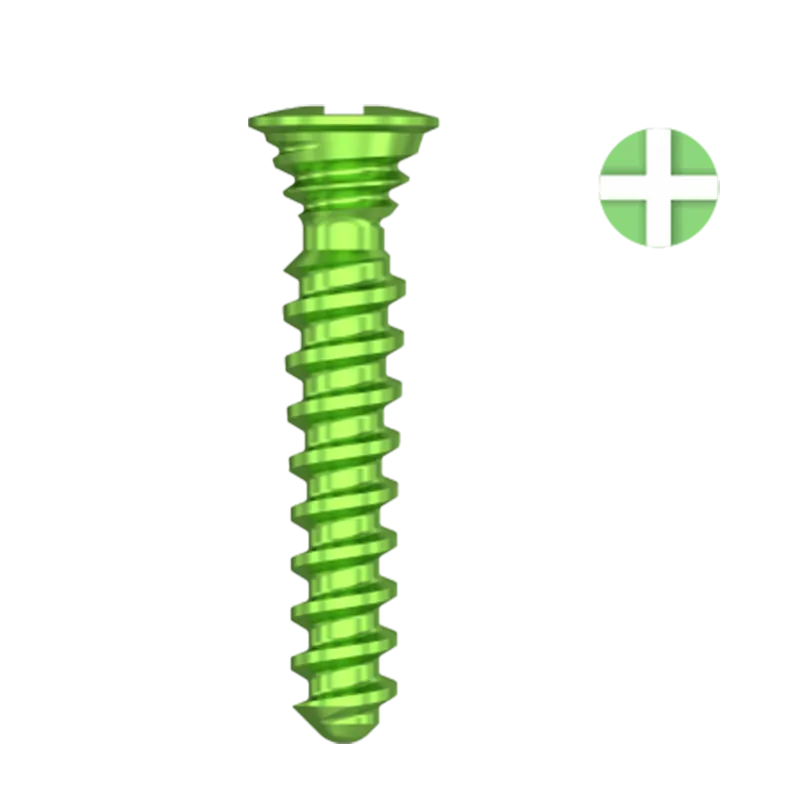

Designed for emergency situations, this CMF locking emergency screw – 1.7mm diameter offers immediate and secure fixation, ensuring stability and reliability during urgent cranio-maxillofacial procedures.
| Cat No. | Length (mm) |
| Ti.125.404 – Ti.125.409 | 4 – 9 |

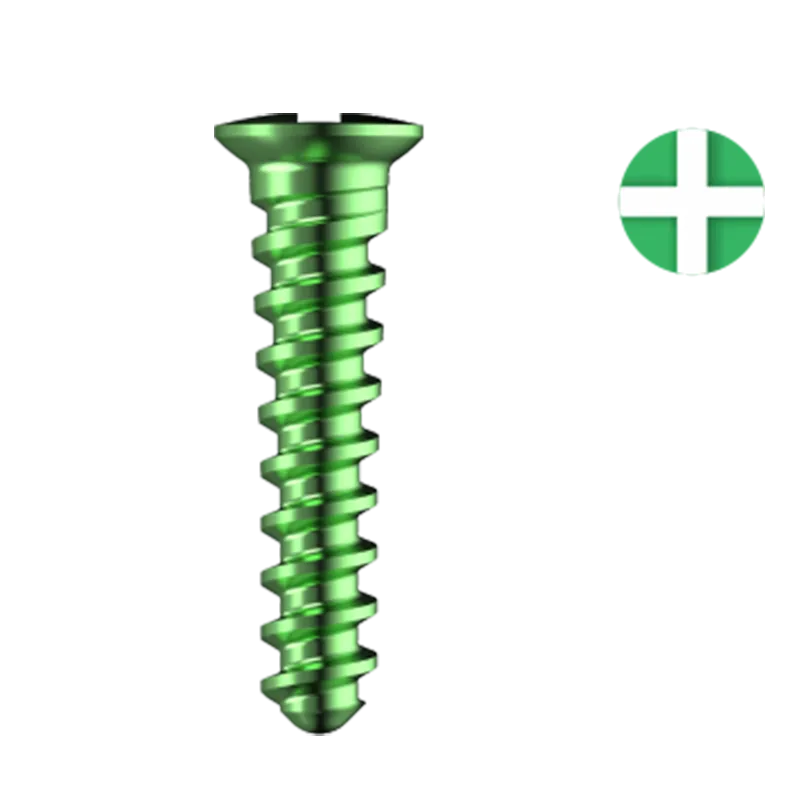

This non-locking CMF emergency screw provides a quick, dependable fixation in emergency cases, allowing flexibility and efficient handling during time-critical surgical interventions.
| Cat No. | Length (mm) |
| Ti.125.504 – Ti.125.509 | 4 – 9 |

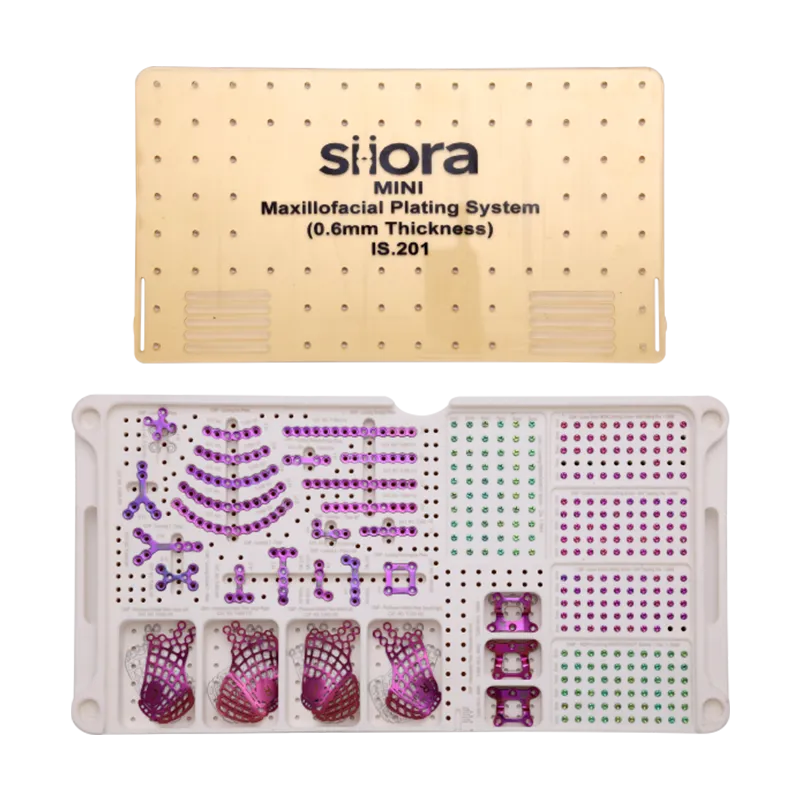

This ultra-thin mini CMF locking plate system ensures minimal invasiveness, precise fixation, and optimal performance in delicate cranio-maxillofacial surgical procedures and applications. It features a complete range of micro maxillofacial plates and screws arranged in a specifically designed graphic box.
| Cat. No. IS.201 | Mini Maxillofacial Plate (0.6mm Thickness) 1.5mm Screws System | Units |
|---|---|---|
| Ti.850.101 | CMF – Locking X – Plate (Thickness 0.6MM) 4 Holes Length 14MM -Titanium | 1 |
| Ti.850.102 | CMF – Locking Rectangular Plate (Thickness 0.6MM) 4 Holes Length 14MM -Titanium | 1 |
| Ti.850.103 | CMF – Locking Straight Bridge Plate (Thickness 0.6MM) 4 Holes Length 20MM -Titanium | 1 |
| Ti.850.110 | CMF – Locking Straight Plate (Thickness 0.6MM) 6 Holes Length 24MM -Titanium | 1 |
| Ti.850.111 | CMF – Locking Straight Plate (Thickness 0.6MM) 8 Holes Length 32MM -Titanium | 1 |
| Ti.850.112 | CMF – Locking Straight Plate (Thickness 0.6MM) 10 Holes Length 40MM -Titanium | 1 |
| Ti.850.113 | CMF – Locking Straight Plate (Thickness 0.6MM) 12 Holes Length 48MM -Titanium | 1 |
| Ti.850.114 | CMF – Locking Straight Plate (Thickness 0.6MM) 14 Holes Length 56MM -Titanium | 1 |
| Ti.850.120 | CMF – Locking Arc Plate (Thickness 0.6MM) 6 Holes Length 24MM -Titanium | 1 |
| Ti.850.121 | CMF – Locking Arc Plate (Thickness 0.6MM) 8 Holes Length 31MM -Titanium | 1 |
| Ti.850.122 | CMF – Locking Arc Plate (Thickness 0.6MM) 10 Holes Length 38MM -Titanium | 1 |
| Ti.850.123 | CMF – Locking Arc Plate (Thickness 0.6MM) 12 Holes Length 44MM -Titanium | 1 |
| Ti.850.124 | CMF – Locking Arc Plate (Thickness 0.6MM) 14 Holes Length 49MM -Titanium | 1 |
| Ti.850.130 | CMF – Locking L-Plate 90°Deg. (Thickness 0.6MM) 4 Holes Length 16MM -Titanium | 1 |
| Ti.850.135 | CMF – Locking L-Plate 110°Deg. (Thickness 0.6MM) 4 Holes Length 16MM -Titanium | 1 |
| Ti.850.136 | CMF – Locking L-Plate 110°Deg. (Thickness 0.6MM) 5 Holes Length 20MM -Titanium | 1 |
| Ti.850.140 | CMF – Locking T- Plate (Thickness 0.6MM) 5 Holes Length 16MM -Titanium | 1 |
| Ti.850.141 | CMF – Locking T- Plate (Thickness 0.6MM) 7 Holes Length 24MM -Titanium | 1 |
| Ti.850.145 | CMF – Locking Double Y- Plate (Thickness 0.6MM) 6 Holes Length 17MM -Titanium | 1 |
| Ti.850.150 | CMF – Locking Y- Plate (Thickness 0.6MM) 6 Holes Length 24MM -Titanium | 1 |
| Ti.850.151 | CMF – Locking Y- Plate (Thickness 0.6MM) 7 Holes Length 28MM -Titanium | 1 |
| Ti.850.160 | CMF – Preformed Orbital Plate (Thickness 0.6MM) – Small – Left -Titanium | 1 |
| Ti.850.165 | CMF – Preformed Orbital Plate (Thickness 0.6MM) – Small – Right -Titanium | 1 |
| Ti.850.170 | CMF – Preformed Orbital Plate (Thickness 0.6MM) – Large – Left -Titanium | 1 |
| Ti.850.175 | CMF – Preformed Orbital Plate (Thickness 0.6MM) – Large – Right -Titanium | 1 |
| Ti.850.181 | CMF – Genioplasty Plate (Thickness 0.8MM) 5 Holes Length 6MM -Titanium | 1 |
| Ti.850.182 | CMF – Genioplasty Plate (Thickness 0.8MM) 5 Holes Length 8MM -Titanium | 1 |
| Ti.850.183 | CMF – Genioplasty Plate (Thickness 0.8MM) 5 Holes Length 10MM -Titanium | 1 |
| Ti.125.104 | CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 4mm -Titanium | 10 |
| Ti.125.105 | CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 5mm -Titanium | 10 |
| Ti.125.106 | CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 6mm -Titanium | 10 |
| Ti.125.107 | CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 7mm -Titanium | 10 |
| Ti.125.108 | CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 8mm -Titanium | 10 |
| Ti.125.204 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 4mm -Titanium | 10 |
| Ti.125.205 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 5mm -Titanium | 10 |
| Ti.125.206 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 6mm -Titanium | 10 |
| Ti.125.207 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 7mm -Titanium | 10 |
| Ti.125.208 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 8mm -Titanium | 10 |
| Ti.125.304 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 4mm -Titanium | 10 |
| Ti.125.305 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 5mm -Titanium | 10 |
| Ti.125.306 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 6mm -Titanium | 10 |
| Ti.125.307 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 7mm -Titanium | 10 |
| Ti.125.308 | CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 8mm -Titanium | 10 |
| Ti.125.404 | CMF – Locking EMERGENCY Screw – Dia 1.7mm Length 4mm -Titanium | 10 |
| Ti.125.405 | CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 5mm -Titanium | 10 |
| Ti.125.406 | CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 6mm -Titanium | 10 |
| Ti.125.407 | CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 7mm -Titanium | 10 |
| Ti.125.408 | CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 8mm -Titanium | 10 |
| Ti.125.409 | CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 9mm -Titanium | 10 |
| Ti.125.504 | CMF – NON Locking EMERGENCY Screw – Dia 1.7mm Length 4mm -Titanium | 10 |
| Ti.125.505 | CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 5mm -Titanium | 10 |
| Ti.125.506 | CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 6mm -Titanium | 10 |
| Ti.125.507 | CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 7mm -Titanium | 10 |
| Ti.125.508 | CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 8mm -Titanium | 10 |
| Ti.125.509 | CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 9mm -Titanium | 10 |
| 400.171 | Implant Box for Mini ( Maxillofacial 0.6mm Thickness) 1.5mm Screws System (Medical Grade Plastic) | 1 |

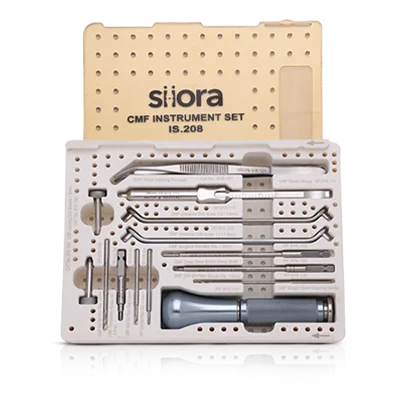

The CMF Instrument Set is thoughtfully designed to support precise and efficient maxillofacial procedures. Each instrument in the maxillofacial trauma instruments set is crafted using high-quality surgical-grade materials, ensuring durability, reliability, and ease of handling in the operating room.
| Cat No. IS.208 | Description | Units |
|---|---|---|
| XP.916.101 | CMF Straight Quick Coupling Handle | 1 |
| XP.916.102 | CMF Cross Drive Screw Driver Shaft | 1 |
| XP.916.103 | CMF Surgical Elevator 1.5mm Dia. | 1 |
| XP.916.104 | CMF Drill Bit – Plain Shank Dia. 1.1mm X 8.5mm X 48mm Long | 1 |
| XP.916.105 | CMF Drill Bit – Plain Shank Dia. 1.6mm X 12mm X 48mm Long | 1 |
| XP.916.106 | CMF Drill Bit – Plain Shank Dia. 1.9mm X 22mm X 58mm Long | 1 |
| XP.916.107 | CMF Drill Bit – Plain Shank Dia. 1.9mm X 57mm X 82mm Long | 1 |
| XP.916.108 | CMF Temporary Holder HC 2.4mm | 2 |
| XP.916.109 | CMF Universal Drill Guide 1.1/1.6mm | 1 |
| XP.916.110 | CMF Universal Drill Guide 1.6/1.9mm | 1 |
| XP.916.111 | CMF Depth Gauge | 1 |
| 916.120 | CMF Locking Drill Sleeve 1.9mm | 2 |
| 916.121 | CMF Plate Holding Forceps | 1 |
| 400.177 | Instrument Box for Maxillofacial Plating System (Medical Grade Plastic) | 1 |
The mini 0.6 mm and 0.8 mm systems are primarily used for low-load craniofacial regions, including orbital fractures, midface trauma, and delicate reconstructive procedures. These thinner plates provide flexibility while maintaining sufficient stability for precise anatomical fixation.
0.6 mm plates – Ultra-low profile, ideal for orbital & delicate areas
0.8 mm plates – Slightly higher rigidity for midface stabilization
Both maxillofacial plates provide a balance of strength and contourability depending on the surgical indication.
The system supports CMF Cross Drive Locking Self-Tapping Screw, CMF Cross Drive Non-Locking Self-Tapping Screw, CMF Cross Drive Non-Locking Self-Drilling Screw, CMF Locking Emergency Screw, and CMF Non-Locking Emergency Screw.
Yes, we offer OEM manufacturing, private labelling, and custom branding & packaging, customized implant kits that are ideal for global distributors and orthopedic brands.
Yes, titanium plates are easily contourable, allowing precise bending and anatomical adaptation during surgery while maintaining excellent stability after shaping for reliable fixation outcomes.
Plates and screws are intended for single-use only to maintain sterility, while instruments are reusable and can be safely used after proper cleaning and sterilization procedures.
Our mini CMF locking plate systems are supplied across the USA, Europe, the Middle East, Latin America, and Southeast Asia, with full documentation support to ensure smooth global regulatory compliance for distributors.
MOQ is flexible depending on:
Product type
Customization level
Market requirements
Bulk pricing is available for long-term distributors.
Our micro maxillofacial implants systems are engineered to align with global design and biomechanics standards, deliver cost-effective alternatives to premium brands, and maintain consistent quality through internationally recognized medical-grade titanium materials.
High-quality titanium implants
Competitive pricing
OEM/private label support
Global compliance
Reliable supply chain
If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
