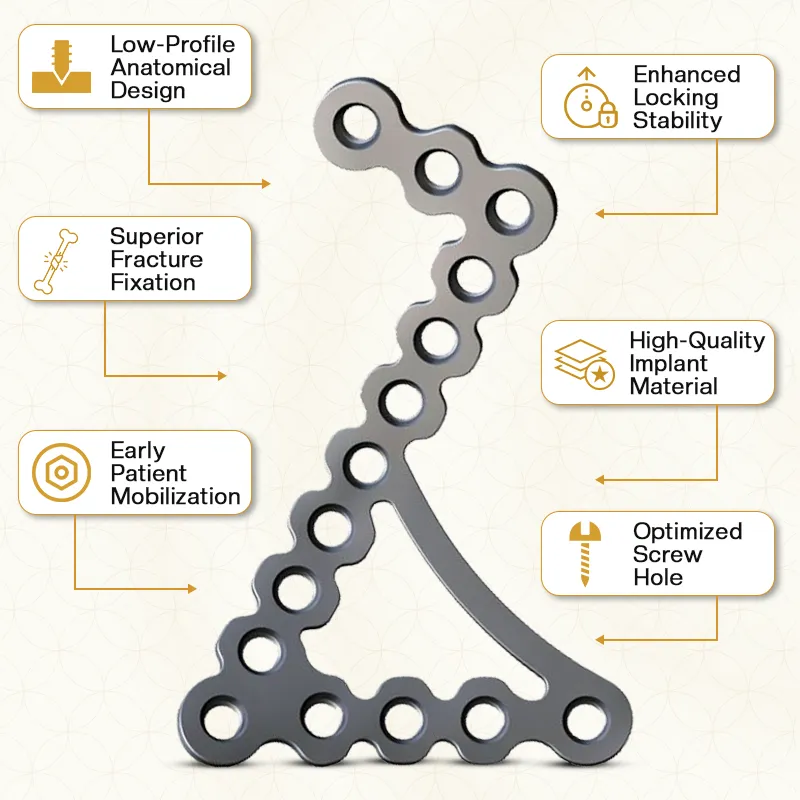

The Low Profile Pelvic Locking Plate system is designed for stable fixation of pelvic and acetabular fractures while minimizing soft tissue irritation. Manufactured from high-grade medical titanium, the pelvic growth plate features a low-profile anatomical design that helps achieve better contouring around the pelvic region. Its locking screw mechanism offers enhanced angular stability, especially in osteoporotic or complex fracture cases. The precisely engineered plate holes allow surgeons to achieve secure fixation with improved load distribution and reduced implant prominence. Commonly used in pelvic trauma reconstruction procedures, this pelvic plating system supports accurate fracture alignment, early mobilization, and reliable post-operative outcomes. The low profile pelvic set is developed following stringent quality standards to ensure dependable clinical performance and patient safety.
Designed to closely match pelvic anatomy, the low-profile structure helps reduce soft tissue irritation and implant prominence after surgery.
The locking screw mechanism provides strong angular stability, making the system suitable for complex and osteoporotic pelvic fractures.
Engineered to deliver rigid and reliable fixation, the pelvic plating system supports accurate fracture reduction and stable reconstruction.
Manufactured using medical-grade titanium to ensure excellent strength, corrosion resistance, and long-term biocompatibility.
Precisely positioned pelvic growth plate holes allow flexible screw placement, helping surgeons achieve improved fixation and load distribution.
The stable construct created by the pelvic plating system assists in faster rehabilitation and encourages early post-operative movement.
Indicated for the fixation and stabilization of acetabular fractures requiring precise anatomical reconstruction.
Used in the treatment of unstable pelvic ring disruptions to restore structural stability and alignment.
Used in the treatment of unstable pelvic ring disruptions to restore structural stability and alignment.
Recommended for pubic symphysis separations and related pelvic instability conditions.
The locking mechanism provides dependable fixation in patients with poor bone quality or osteoporotic bone structures.
Designed for use in multi-fragmentary and complex pelvic trauma cases requiring rigid internal fixation.
Siora’s Pelvic Plating System features a comprehensive range of pelvic plates in different sizes and hole numbers to ensure effective fixation of pelvic fractures & related conditions. Our low profile pelvic set is also designed to ensure better surgical precision and improved post-op outcomes.

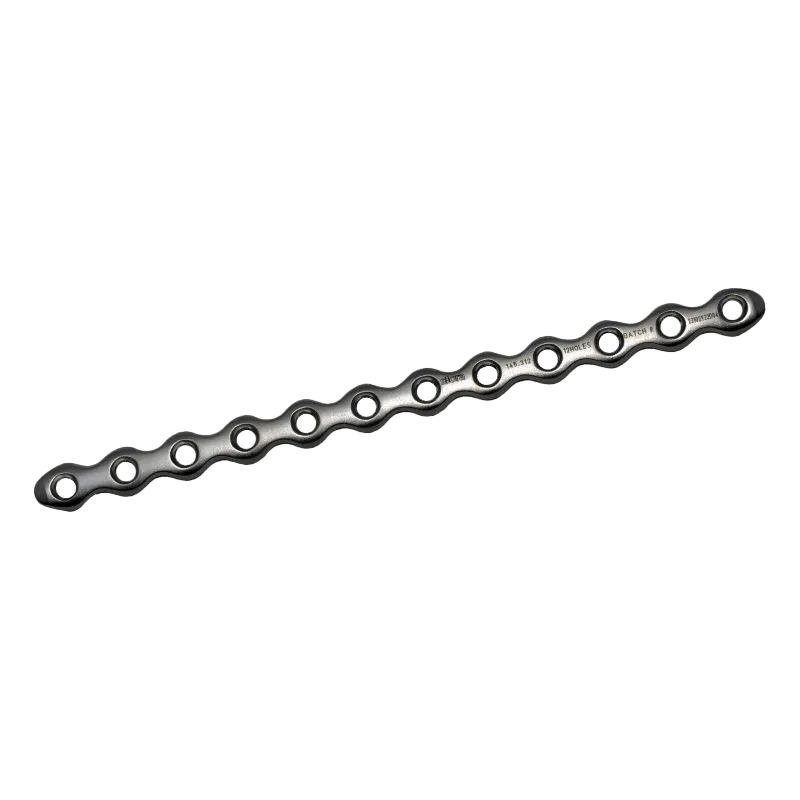

Designed for stable fixation of pelvic fractures, this straight low-profile plate offers anatomical contouring, reduced soft tissue irritation, and enhanced locking stability for effective pelvic reconstruction procedures.
| Cat No. (Titanium) | Holes |
| Ti.145.306 – Ti.145.320 | 6 – 20 |

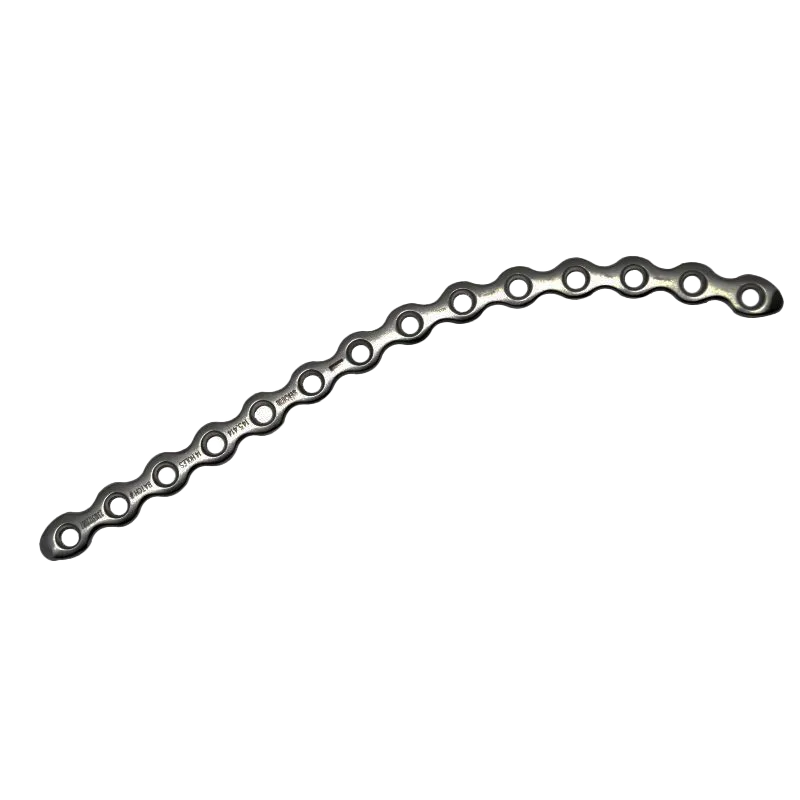

The J-shaped pelvic plate is engineered for complex pelvic anatomy, providing secure fixation, improved fracture support, and better adaptability during acetabular and pelvic trauma surgeries.
| Cat No. (Left) | Holes | Cat No. (Right) |
| Ti.145.410 – Ti.145.420 | 10 -20 | Ti.145.510 – Ti.145.520 |

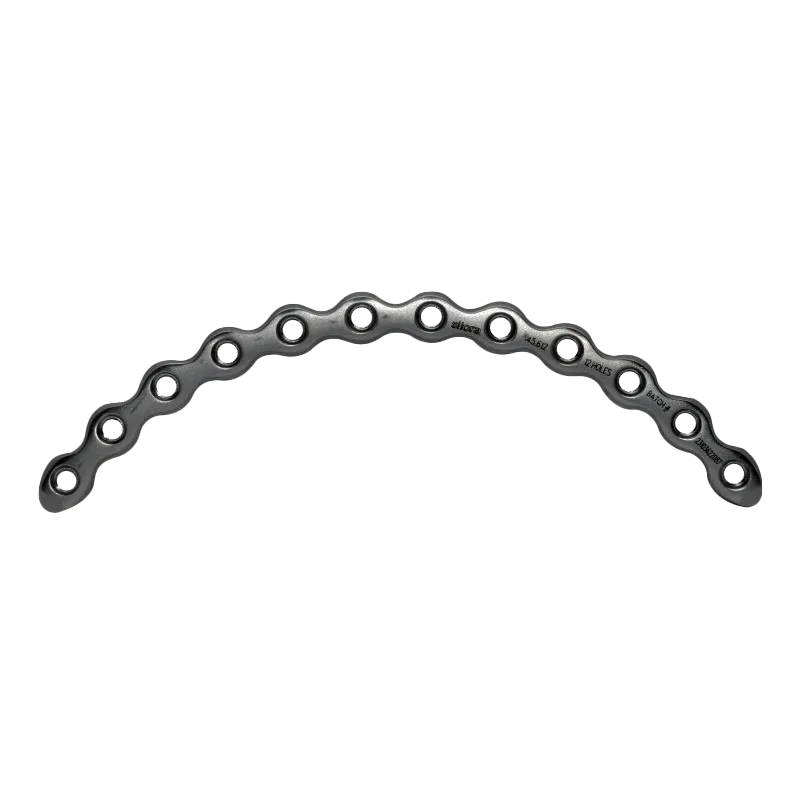

Featuring an anatomically curved design, this plate ensures optimal fit around pelvic structures while delivering strong locking fixation and minimized implant prominence during reconstruction procedures.
| Cat No. (Titanium) | Holes | Radius |
| Ti.145.606 – Ti.145.616 | 6 – 16 | 88mm |
| Ti.145.706 – Ti.145.716 | 6 – 16 | 108mm |

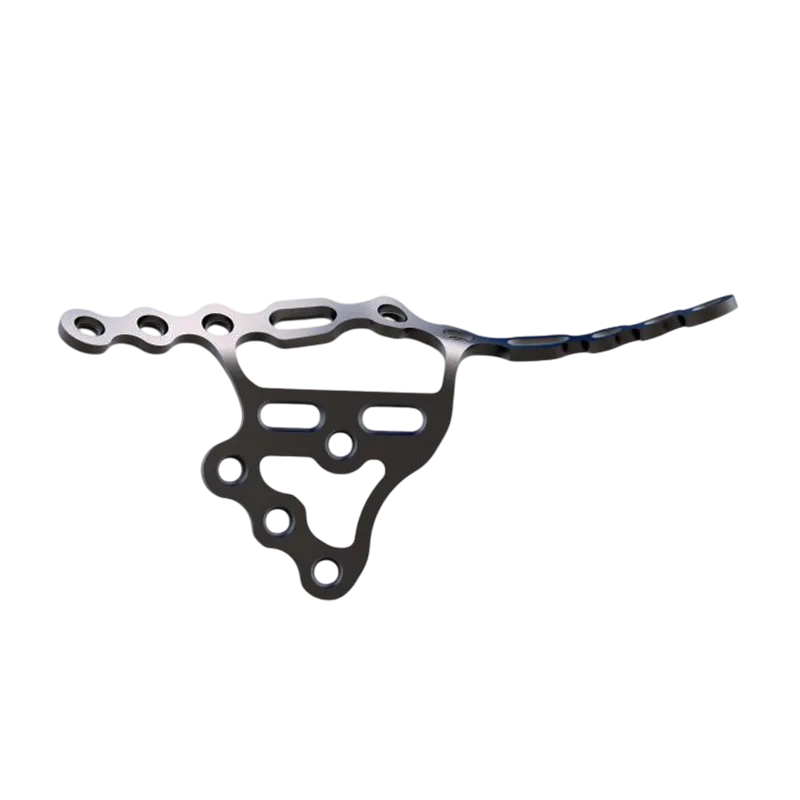

Specially designed for suprapectineal fracture fixation, this plate offers rigid stabilization, precise contouring, and enhanced support for anterior pelvic and acetabular fracture management.
| Cat No. (Titanium) | |
| Ti.145.901 | Left |
| Ti.145.902 | Right |

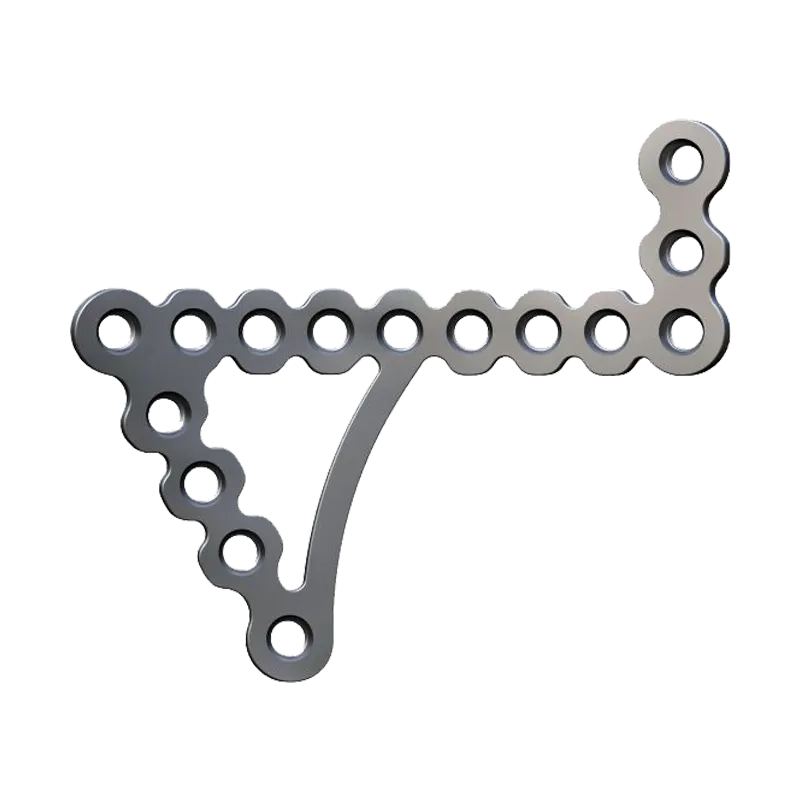

Developed for infrapectineal fixation techniques, this plate provides stable internal fixation, excellent buttressing support, and reliable stabilization of complex acetabular fractures.
| Cat No. (Titanium) | |
| Ti.145.911 | Left |
| Ti.145.912 | Right |

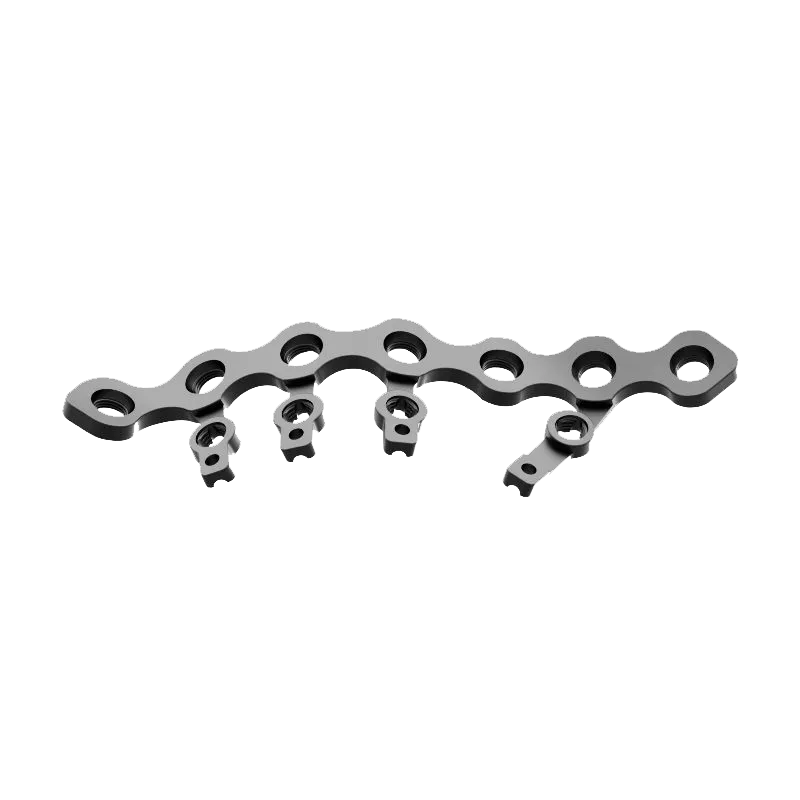

This acetabular plate is intended for posterior wall fracture fixation, ensuring strong fragment stabilization, anatomical alignment, and secure locking support during pelvic trauma reconstruction.
| Cat No. (Titanium) | |
| Ti.145.921 | Left |
| Ti.145.922 | Right |

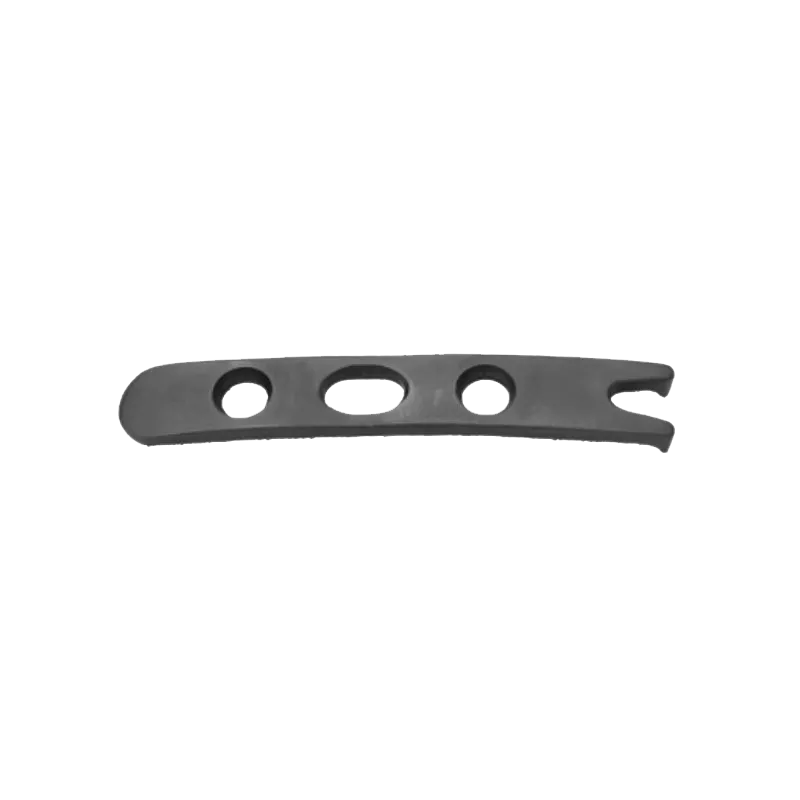

Designed to support small acetabular fracture fragments, the spring plate delivers additional buttress effect and improved fragment retention during complex acetabular fixation procedures.
| Cat No. (Titanium) | Holes |
| Ti.148.302 – Ti.148.303 | 2 – 3 |

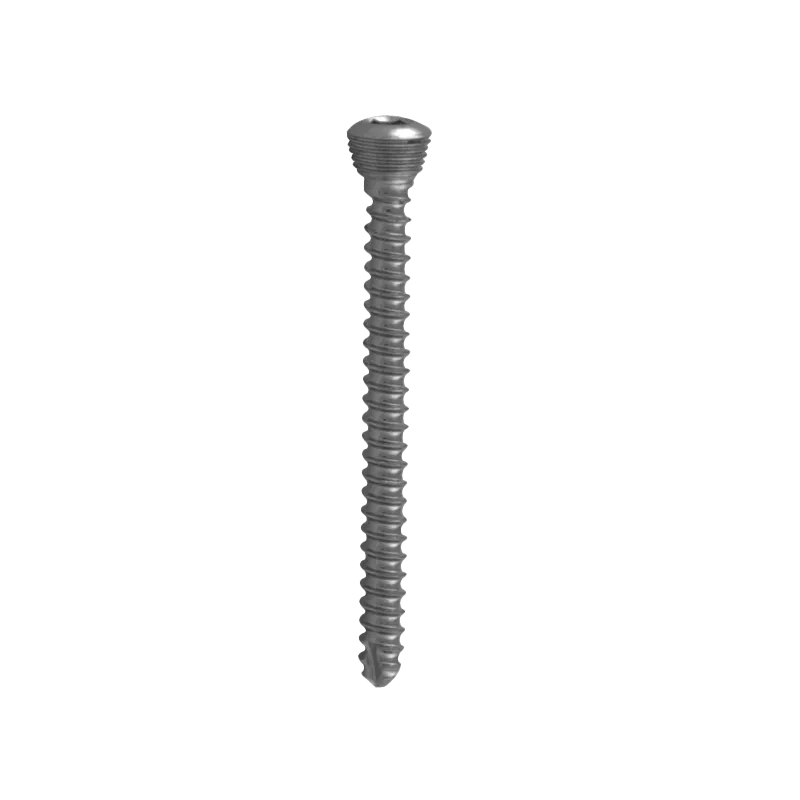

Manufactured for secure locking fixation, this self-tapping screw offers excellent thread engagement, stable implant anchorage, and easy insertion using hexdrive instrumentation.
| Cat No. (Titanium) | Length (mm) |
| Ti.101.310 – Ti.101.350 | 10 – 50 |

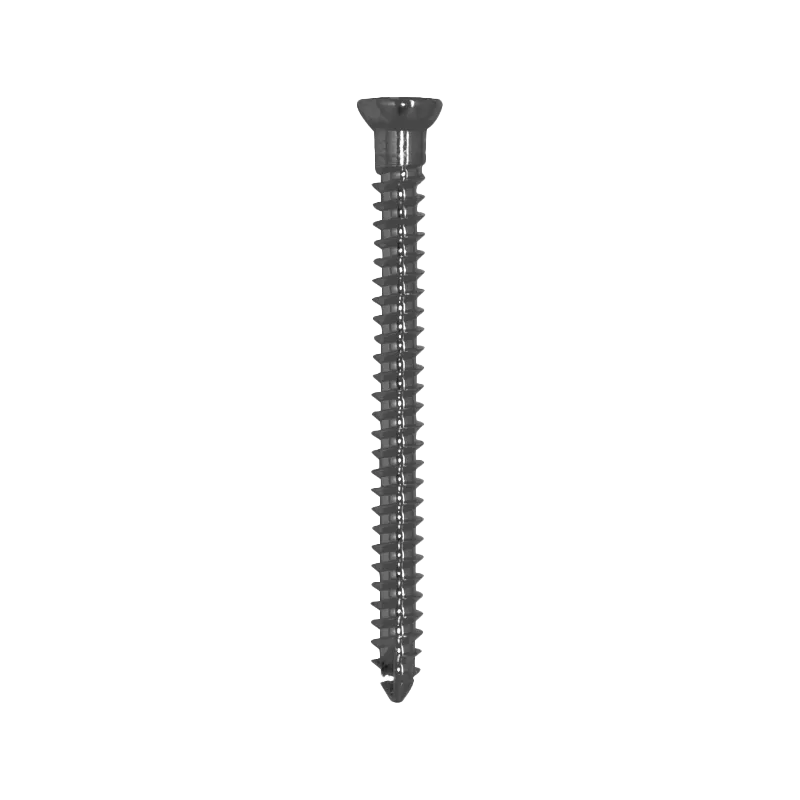

This self-tapping cortical screw provides reliable bone purchase, smooth insertion, and dependable compression while maintaining compatibility with pelvic locking plate systems.
| Cat No. (Titanium) | Length (mm) |
| Ti.102.812 – Ti.102.860 | 12 – 60 |

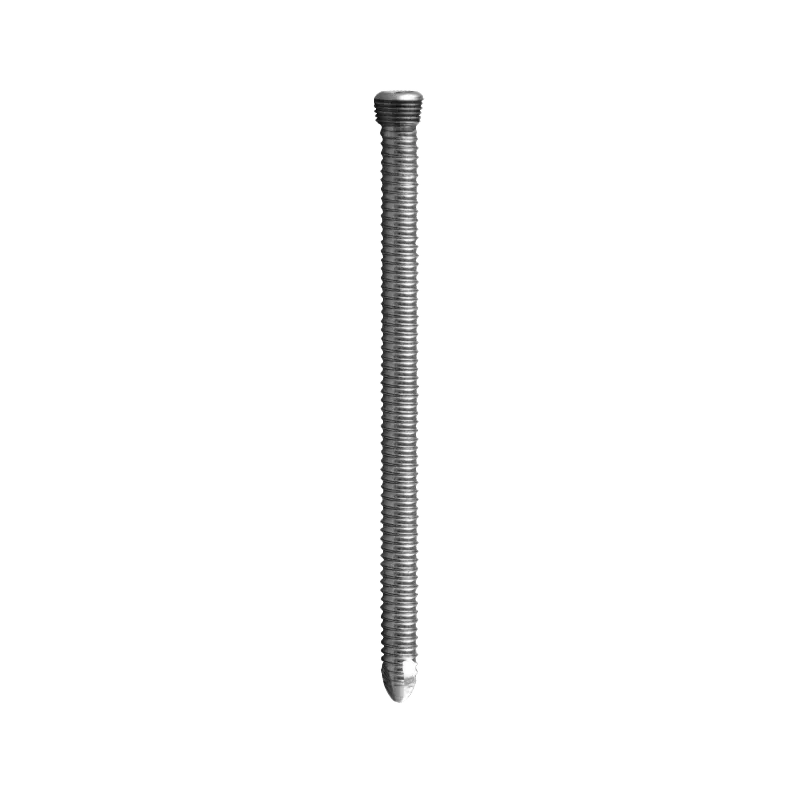

Engineered for angular stability, this hexdrive locking screw ensures firm fixation, precise threading, and improved construct stability in pelvic fracture fixation procedures.
| Cat No. (Titanium) | Length (mm) |
| Ti.102.310 – Ti.102.380 | 10 – 80 |

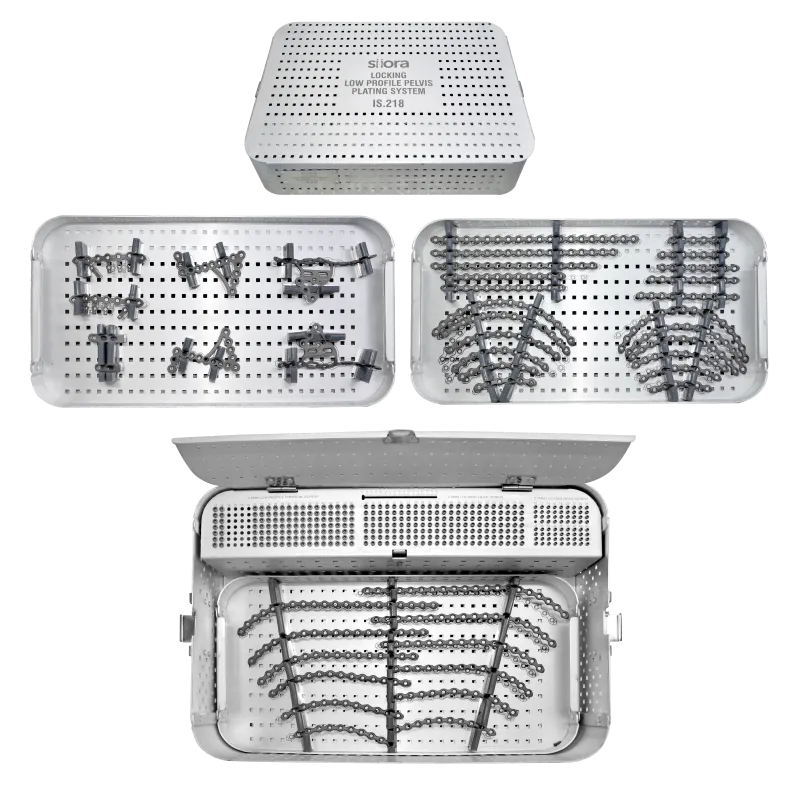

The implant set includes anatomically designed pelvic plates and compatible screws to support comprehensive fixation solutions for pelvic and acetabular fracture management.
| IS.218 | Description | Units |
| TI.145.306 | 3.5mm Locking Low Profile Pelvis Straight Plate 6 Holes – Titanium | 1 |
| TI.145.307 | 3.5mm Locking Low Profile Pelvis Straight Plate 7 Holes – Titanium | 1 |
| TI.145.308 | 3.5mm Locking Low Profile Pelvis Straight Plate 8 Holes – Titanium | 1 |
| TI.145.309 | 3.5mm Locking Low Profile Pelvis Straight Plate 9 Holes – Titanium | 1 |
| TI.145.310 | 3.5mm Locking Low Profile Pelvis Straight Plate 10 Holes – Titanium | 1 |
| TI.145.312 | 3.5mm Locking Low Profile Pelvis Straight Plate 12 Holes – Titanium | 1 |
| TI.145.314 | 3.5mm Locking Low Profile Pelvis Straight Plate 14 Holes – Titanium | 1 |
| TI.145.316 | 3.5mm Locking Low Profile Pelvis Straight Plate 16 Holes – Titanium | 1 |
| TI.145.318 | 3.5mm Locking Low Profile Pelvis Straight Plate 18 Holes – Titanium | 1 |
| TI.145.320 | 3.5mm Locking Low Profile Pelvis Straight Plate 20 Holes – Titanium | 1 |
| TI.145.410 | 3.5mm Locking Low Profile Pelvis J- Plate – Left 10 Holes – Titanium | 1 |
| TI.145.412 | 3.5mm Locking Low Profile Pelvis J- Plate – Left 12 Holes – Titanium | 1 |
| TI.145.414 | 3.5mm Locking Low Profile Pelvis J- Plate – Left 14 Holes – Titanium | 1 |
| TI.145.416 | 3.5mm Locking Low Profile Pelvis J- Plate – Left 16 Holes – Titanium | 1 |
| TI.145.418 | 3.5mm Locking Low Profile Pelvis J- Plate – Left 18 Holes – Titanium | 1 |
| TI.145.420 | 3.5mm Locking Low Profile Pelvis J- Plate – Left 20 Holes – Titanium | 1 |
| TI.145.510 | 3.5mm Locking Low Profile Pelvis J- Plate -Right-10 Holes-Titanium | 1 |
| TI.145.512 | 3.5mm Locking Low Profile Pelvis J- Plate -Right-12 Holes-Titanium | 1 |
| TI.145.514 | 3.5mm Locking Low Profile Pelvis J- Plate -Right-14 Holes-Titanium | 1 |
| TI.145.516 | 3.5mm Locking Low Profile Pelvis J- Plate -Right-16 Holes-Titanium | 1 |
| TI.145.518 | 3.5mm Locking Low Profile Pelvis J- Plate -Right-18 Holes-Titanium | 1 |
| TI.145.520 | 3.5mm Locking Low Profile Pelvis J- Plate -Right-20 Holes-Titanium | 1 |
| TI.145.606 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 88mm) 6 Holes – Titanium | 1 |
| TI.145.608 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 88mm) 8 Holes – Titanium | 1 |
| TI.145.610 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 88mm) 10 Holes – Titanium | 1 |
| TI.145.612 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 88mm) 12 Holes – Titanium | 1 |
| TI.145.614 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 88mm) 14 Holes – Titanium | 1 |
| TI.145.616 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 88mm) 16 Holes – Titanium | 1 |
| TI.145.706 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 108mm) 6 Holes – Titanium | 1 |
| TI.145.708 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 108mm) 8 Holes – Titanium | 1 |
| TI.145.710 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 108mm) 10 Holes – Titanium | 1 |
| TI.145.712 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 108mm) 12 Holes – Titanium | 1 |
| TI.145.714 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 108mm) 14 Holes – Titanium | 1 |
| TI.145.716 | 3.5mm Locking Low Profile Pelvis Curved Plate(Radius 108mm) 16 Holes – Titanium | 1 |
| Ti.145.901 | 3.5mm Locking Pelvis Suprapectineal Plate – Left -Titanium | 1 |
| Ti.145.902 | 3.5mm Locking Pelvis Suprapectineal Plate – Right – Titanium | 1 |
| Ti.145.911 | 3.5mm Locking Pelvis Infrapectineal Plate – Left -Titanium | 1 |
| Ti.145.912 | 3.5mm Locking Pelvis Infrapectineal Plate – Right -Titanium | 1 |
| Ti.145.921 | 2.7/3.5mm Locking Pelvis Posterior Wall Acetabular Plate – Left – Titanium | 1 |
| Ti.145.922 | 2.7/3.5mm Locking Pelvis Posterior Wall Acetabular Plate – Right -Titanium | 1 |
| Ti.148.302 | 3.5mm Acetabular Spring Plate – 2 Holes -Titanium | 1 |
| Ti.148.303 | 3.5mm Acetabular Spring Plate – 3 Holes -Titanium | 1 |
| Ti.102.812 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 12mm (For Pelvis Plate) | 7 |
| Ti.102.814 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 14mm (For Pelvis Plate) | 7 |
| Ti.102.816 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 16mm (For Pelvis Plate) | 14 |
| Ti.102.818 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 18mm (For Pelvis Plate) | 14 |
| Ti.102.820 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 20mm (For Pelvis Plate) | 7 |
| Ti.102.822 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 22mm (For Pelvis Plate) | 7 |
| Ti.102.824 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 24mm (For Pelvis Plate) | 7 |
| Ti.102.826 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 26mm (For Pelvis Plate) | 7 |
| Ti.102.828 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 28mm (For Pelvis Plate) | 7 |
| Ti.102.830 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 30mm (For Pelvis Plate) | 7 |
| Ti.102.832 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 32mm (For Pelvis Plate) | 7 |
| Ti.102.834 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 34mm (For Pelvis Plate) | 7 |
| Ti.102.836 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 36mm (For Pelvis Plate) | 7 |
| Ti.102.838 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 38mm (For Pelvis Plate) | 7 |
| Ti.102.840 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 40mm (For Pelvis Plate) | 7 |
| Ti.102.845 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 45mm (For Pelvis Plate) | 7 |
| Ti.102.850 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 50mm (For Pelvis Plate) | 7 |
| Ti.102.855 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 55mm (For Pelvis Plate) | 7 |
| Ti.102.860 | 3.5mm Low Profile Cortical Screw – Self Tapping -Titanium Length 60mm (For Pelvis Plate) | 7 |
| TI.102.312 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 12mm | 7 |
| TI.102.314 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 14mm | 7 |
| TI.102.316 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 16mm | 7 |
| TI.102.318 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 18mm | 7 |
| TI.102.320 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 20mm | 7 |
| TI.102.322 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 22mm | 7 |
| TI.102.324 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 24mm | 7 |
| TI.102.326 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 26mm | 7 |
| TI.102.328 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 28mm | 7 |
| TI.102.330 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 30mm | 7 |
| Ti.102.332 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 32mm | 7 |
| Ti.102.334 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 34mm | 7 |
| Ti.102.336 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 36mm | 7 |
| Ti.102.338 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 38mm | 7 |
| TI.102.340 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 40mm | 7 |
| TI.102.345 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 45mm | 7 |
| TI.102.350 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 50mm | 7 |
| TI.102.355 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 55mm | 7 |
| TI.102.360 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 60mm | 7 |
| TI.102.365 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 65mm | 7 |
| TI.102.370 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 70mm | 7 |
| TI.102.375 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 75mm | 7 |
| TI.102.380 | 3.5mm Locking Head Screw – Self Tapping – Titanium Length 80mm | 7 |
| Ti.101.310 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 10mm | 4 |
| Ti.101.312 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 12mm | 4 |
| Ti.101.314 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 14mm | 4 |
| Ti.101.316 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 16mm | 4 |
| Ti.101.318 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 18mm | 4 |
| Ti.101.320 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 20mm | 4 |
| Ti.101.322 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 22mm | 4 |
| Ti.101.324 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 24mm | 4 |
| Ti.101.326 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 26mm | 4 |
| Ti.101.328 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 28mm | 4 |
| Ti.101.330 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 30mm | 4 |
| Ti.101.332 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 32mm | 4 |
| Ti.101.334 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 34mm | 4 |
| Ti.101.336 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 36mm | 4 |
| Ti.101.338 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 38mm | 4 |
| Ti.101.340 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 40mm | 4 |
| Ti.101.345 | 2.7mm Locking Head Screw – Self Tapping – (Hex 2.0mm) – Titanium – Length 45mm | 4 |
| Ti.101.350 | 2.7mm Locking Head Screw – Self Tapping -(Hex 2.0mm) – Titanium – Length 50mm | 4 |
| 400.158 | Graphic Aluminium Implant Box for Locking Low Profile Pelvis Plating System | 1 |

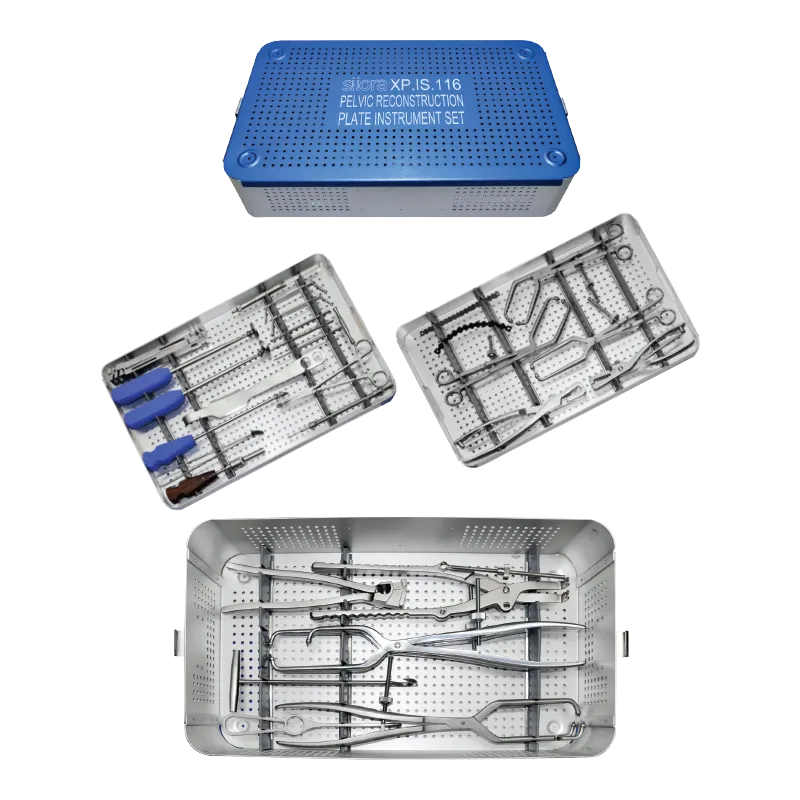

This instrument set contains specialized surgical tools designed to assist in accurate plate placement, contouring, drilling, and fixation during pelvic reconstruction procedures.
| XP.IS.116 | PELVIC RECONSTRUCTION PLATE INSTRUMENT SET | Units |
| XP.391.005 | Toothed Reduction Forceps, Small – 200mm | 1 |
| XP.391.010 | Toothed Reduction Forceps, Large – 250mm | 1 |
| XP.391.015 | Asymmetric Reduction Forceps, 405mm | 1 |
| XP.391.020 | Universal Hex Screw Driver – 220mm length, 2.5mm tip | 1 |
| XP.391.025 | Drill Bit Dia 2.5mm X 150mm | 5 |
| XP.391.030 | Drill Bit Dia 3.0mm x 150mm | 2 |
| XP.391.035 | Drill Guide, 2.5/4.0mm- 160mm | 1 |
| XP.391.040 | Drill Guide, 3.0/4.0mm – 160mm | 1 |
| XP.391.045 | Flexible Drill, Dia. 2.5mm – 215mm | 1 |
| XP.391.046 | Drill Guide For Flexible Drill Bit | 1 |
| XP.391.050 | Plate Bender pair – 200mm | 1 |
| XP.391.055 | Curved Position Forceps, 280mm | 1 |
| XP.391.060 | Curved Position Forceps, 250mm | 1 |
| XP.391.065 | Hex Ball & Socket Screw Driver 2.5mm Tip | 1 |
| XP.391.070 | Reposition Forceps, 290mm | 1 |
| XP.391.075 | Depth Gauge, 60mm | 1 |
| XP.391.080 | Tap 4.0 Cancellous, T-Handle 140mm Long | 1 |
| XP.391.085 | Tap 3.5 Cotical, T-Handle 140mm long | 1 |
| XP.391.090 | Template, Straight | 1 |
| XP.391.095 | Template, Curved | 1 |
| XP.391.100 | Screw Clamp Forceps – 215mm | 1 |
| XP.391.105 | Small Bone Hook | 1 |
| XP.391.110 | Push Rod | 2 |
| XP.391.115 | Reposition Forceps, 410mm | 1 |
| XP.391.120 | Hohmann Retractor For Distraction & Reduction | 1 |
| XP.391.125 | Reposition forceps for Acetabulum | 1 |
| XP.391.130 | T Retractor | 1 |
| XP.391.135 | Plate Bend Forceps – 275mm | 1 |
| XP.391.116 | Pelvic Reduction Forceps, Long with Three Pointed Ball Tips – 410mm | 1 |
| XP.400.106 | Graphic Aluminium Instruments Box For Pelvic Reconstruction Plate | 1 |
A pelvic locking plate system is an orthopedic trauma fixation system designed for the stabilization and fixation of pelvic and acetabular fractures. These systems include low profile pelvic plates, suprapectineal plates, infrapectineal plates, acetabular spring plates, and compatible locking screws.
Pelvic implants are used for internal fixation of pelvic ring injuries, acetabular fractures, and complex pelvic trauma cases. They help restore anatomical alignment and provide stable fixation during bone healing.
A low profile pelvic plate is specially designed with a thinner anatomical structure to minimize soft tissue irritation while maintaining strong fixation stability in pelvic fracture surgeries.
Suprapectineal plates are commonly used for anterior column fixation, while infrapectineal plates are designed for quadrilateral surface and medial wall stabilization in acetabular fracture fixation procedures.
Yes, OEM and private labeling services are available for distributors, orthopedic brands, and medical device companies looking for customized pelvic locking plate systems.
Many manufacturers, like us (Siora Surgicals Pvt. Ltd.), offer customized pelvic plates, including modifications in plate length, hole configuration, material, surface finishing, and branding according to client requirements.
Certain low profile pelvic plates are designed to support minimally invasive surgical approaches, depending on fracture type and surgeon preference.
Distributors should evaluate:
If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
