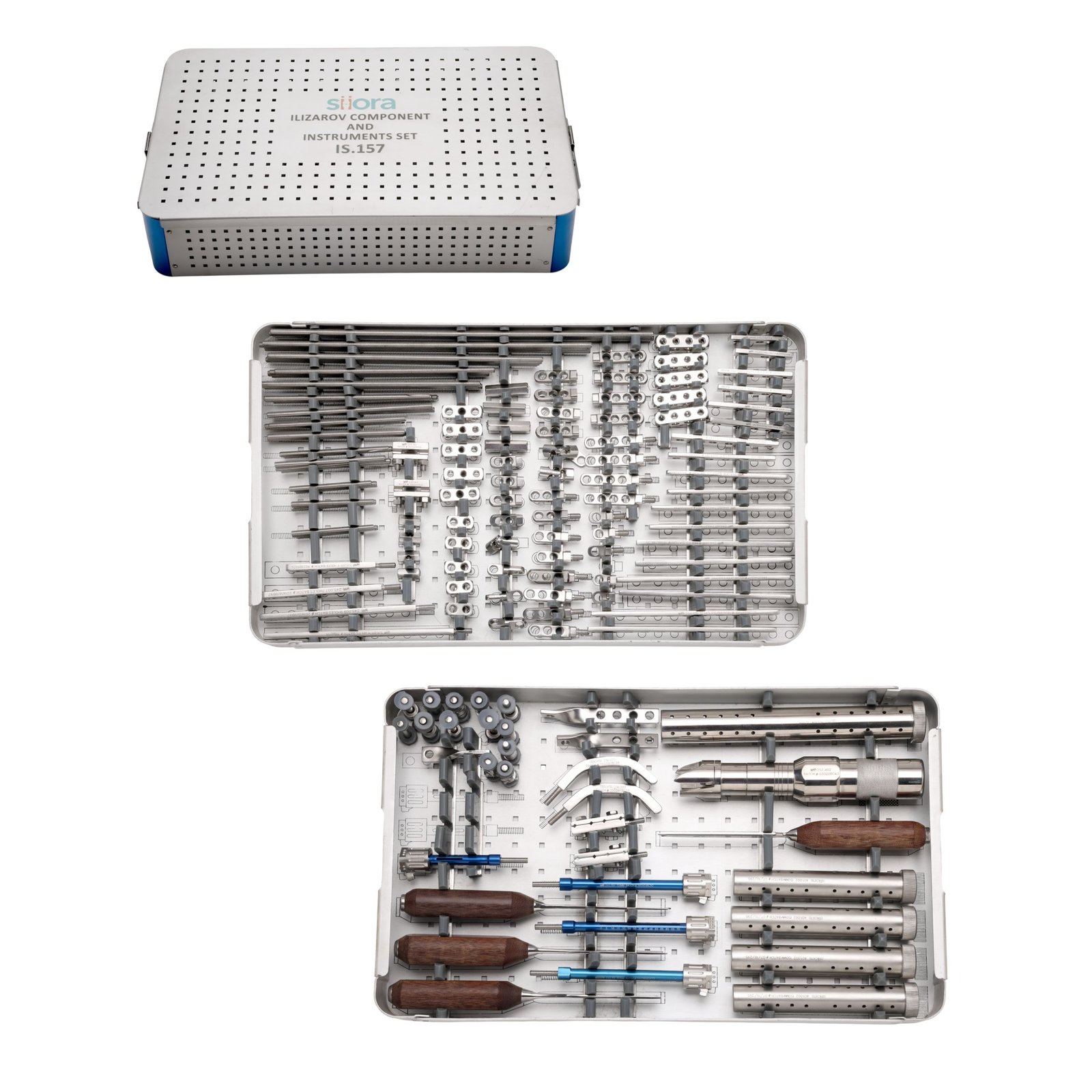

Illizarove Component & Instruments Set

Description

Cat No. IS.157 Description Units
234.000 Multipin Fixation Clamp 2
235.000 Single Pin Fixation Bolt 5
236.000 Oblique Support with Thread 2
237.002 Threaded Rod 75mm Length 8
237.004 Threaded Rod 100mm Length 4
237.006 Threaded Rod 125mm Length 4
237.008 Threaded Rod 150mm Length 4
237.010 Threaded Rod 200mm Length 8
237.012 Threaded Rod 250mm Length 4
237.014 Threaded Rod 300mm Length 4
237.016 Threaded Rod 350mm Length 4
238.002 Threaded Rod – Slotted 75mm Length 2
238.004 Threaded Rod – Slotted 100mm Length 2
238.006 Threaded Rod – Slotted 125mm Length 2
238.008 Threaded Rod – Slotted 150mm Length 2
240.100 Graduated Telescopic Rod 100mm Length 3
240.150 Graduated Telescopic Rod 150mm Length 3
241.002 Post Female 2 Holes 4
241.003 Post Female 3 Holes 4
241.004 Post Female 4 Holes 4
242.002 Post Male 2 Holes 4
242.003 Post Male 3 Holes 4
242.004 Post Male 4 Holes 4
243.010 Hinge – Female 3
243.020 Hinge – Male 3
243.030 Hinge – 90 Deg. 3
244.002 Short Connection Plate-S.S. 2 Holes 2
244.003 Short Connection Plate-S.S. 3 Holes 2
244.004 Short Connection Plate-S.S. 4 Holes 2
244.005 Short Connection Plate-S.S. 5 Holes 2
244.006 Short Connection Plate-S.S. 6 Holes 2
244.007 Short Connection Plate 7 Holes-S.S. 2
244.008 Short Connection Plate-S.S. 8 Holes 2
244.009 Short Connection Plate-S.S. 9 Holes 2
244.010 Short Connection Plate-S.S. 10 Holes 2
245.005 Connection Plate with Threaded End 5 Holes 1
245.007 Connection Plate with Threaded End 7 Holes 1
245.009 Connection Plate with Threaded End 9 Holes 1
245.011 Connection Plate with Threaded End 11 HolesT 1
246.002 wisted Plate 2 Holes 1
246.003 Twisted Plate 3 Holes 1
246.004 Twisted Plate 4 Holes 1
246.210 Bushing 2
247.002 Threaded Socket 20mm 4
247.004 Threaded Socket 40mm 4
249.101 Wire Fixation Bolt – Cannulated 15
249.102 Wire Fixation Bolt – Slotted 15
249.104 Wire Buckle 2
249.106 Connection Bolt 16mm 20
249.107 Nut – 10mm 100
249.109 Nylon Insert Nut 5
249.110 Flat Sided Washer 5
249.111 Slotted Washer 5
249.112 Spacing Washer 2.0mm 5
249.130 Connecting Bolt 10mm 10
249.131 Connecting Bolt 20mm 10
249.213 Spacing Washer 3.0mm 5
249.231 Wrencho Cube- Female 1 Holes 5
249.232 Wrencho Cube- Female 2 Holes 5
249.233 Wrencho Cube- Female 3 Holes 5
249.234 Wrencho Cube- Female 4 Holes 5
249.315 SQUARE NUT 5
249.320 CONICAL WASHER COUPLE 10
249.325 HINGE JOINT 3
251.305 Corticotome Size : 5mm 1
251.307 Corticotome Size : 7mm 1
251.310 Corticotome Size : 10mm 1
251.315 Corticotome Size : 15mm 1
252.402 Wire Tensioner – Dynamometer 1
401.002 Sterilization Tubes for Wires, Nails, Pins & Drill Bits Length 150mm 4
401.004 Sterilization Tubes for Wires, Nails, Pins & Drill Bits Length 225mm 1
400.140 Graphic Box For Illizarov Component & Instruments 1
