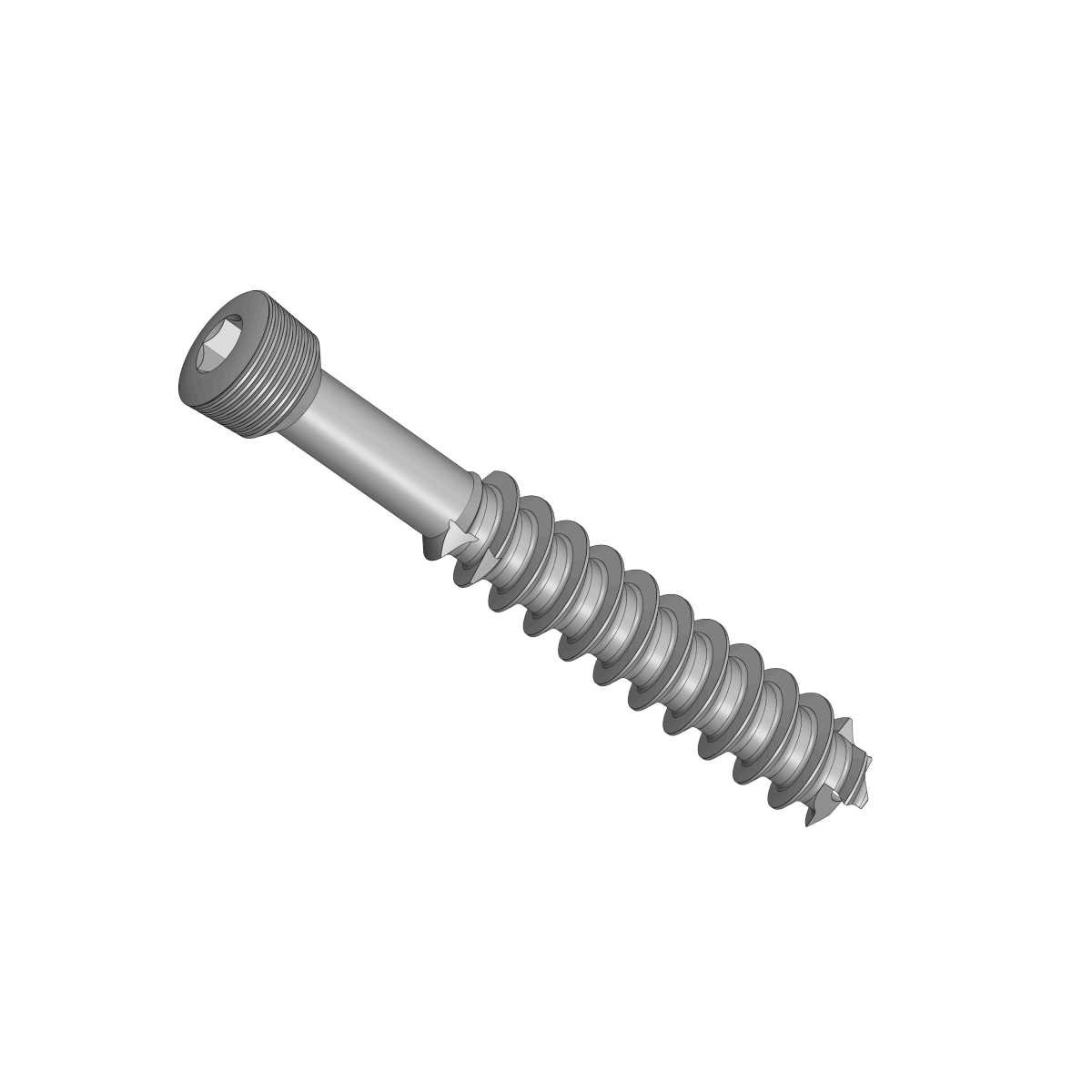

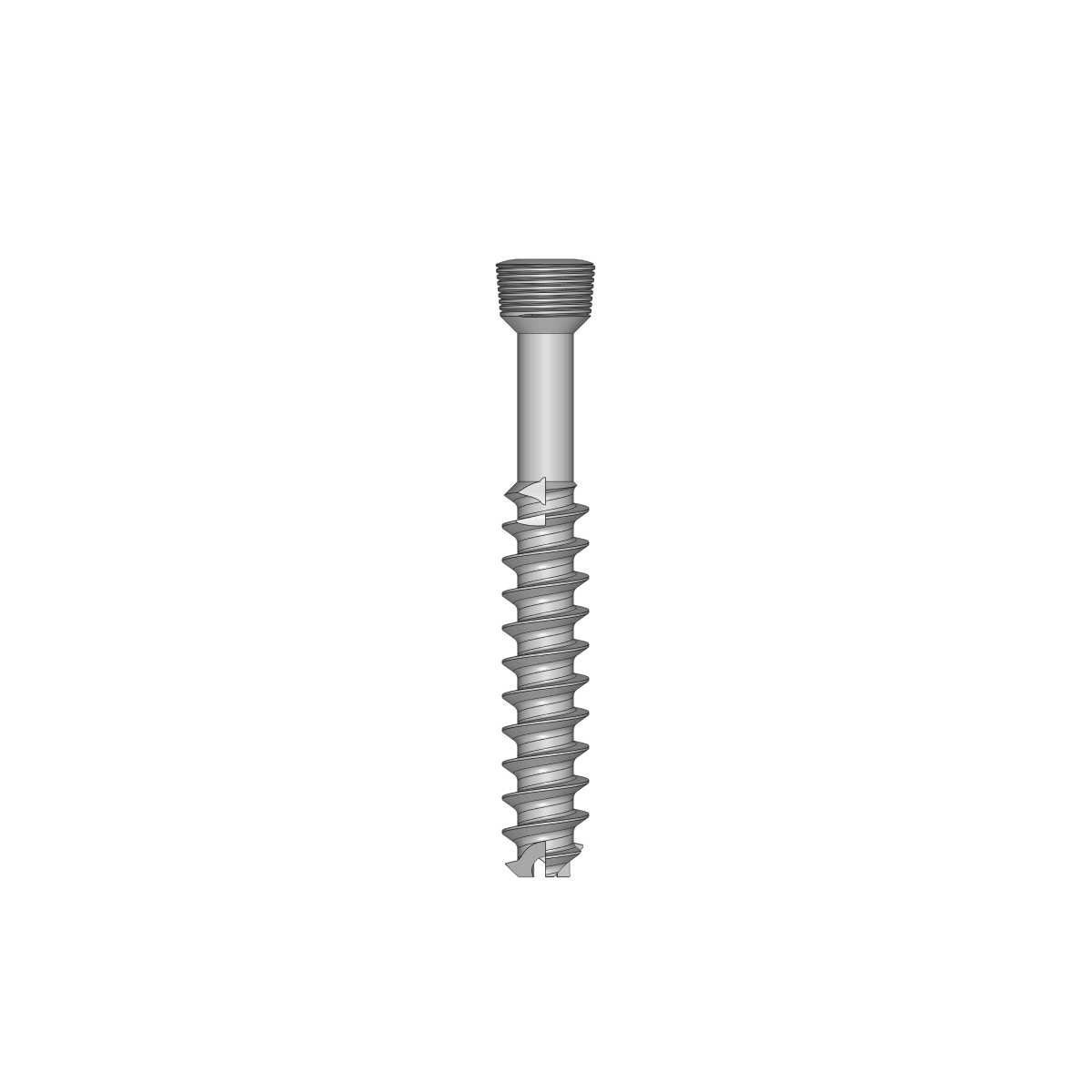

Locking 7.0mm Cannulated Cancellous Screw 32mm Thread (Use with Locking Proximal Femur Plate)
Following Corresponding Instruments to be Use with above Locking Screw:
Cat. No. | Product Description |
---|---|
703.010 | Cannulated Drill Bit 4.5mm |
703.011 | Cannulated Tap with T – Handle 7.0mm |
803.111 | LCP Drill Sleeve 7.0 MM For 4.5mm Drill Bit (Use with Proximal femur Plate) |
703.015 | Threaded Guide Wire Dia 2.0mm, Length 230mm |
703.016 | Large Cannulated Hexagonal Screw Driver 3.5 MM Tip – Silicon Handle |
804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
804.170 | Hexagonal Screw Driver Q.C end Shaft – 3.5mm Tip (for Torque Handle 4.0Nm) |
Description
Cat. No. | Length | Cat. No. |
---|---|---|
Stainless Steel | Titanium | |
– | 50 MM | Ti.112.150 |
– | 55 MM | Ti.112.155 |
112.160 | 60 MM | Ti.112.160 |
112.165 | 65 MM | Ti.112.165 |
112.170 | 70 MM | Ti.112.170 |
112.175 | 75 MM | Ti.112.175 |
112.180 | 80 MM | Ti.112.180 |
112.185 | 85 MM | Ti.112.185 |
112.190 | 90 MM | Ti.112.190 |
112.195 | 95 MM | Ti.112.195 |
112.200 | 100 MM | Ti.112.200 |
112.205 | 105 MM | Ti.112.205 |
112.210 | 110 MM | Ti.112.210 |
