What are Orthopedic Implants?

Orthopedic implants are medical devices designed to provide support to a fractured bone while ensuring its stability and proper anatomical position. Orthopedic implants are available for both temporary and permanent use and are chosen based on the seriousness of the injury. The recovery time after the application of implants will completely depend upon the patient and his/her medical history. The most commonly used implants are Orthopedic Implants Plates, Locking Plates, Bone Screws, Variable Angle Locking Plates, Bone Plates, Interlocking Nails, Wires & Pins, and Hip Prosthesis, etc. Orthopaedic Trauma Implants are manufactured using Titanium alloy and Stainless-Steel material because of their biochemical compatibility and inertness.

Orthopedic Implants Manufacturers in India

The quality of orthopedic implants is critical in defining the effectiveness and recovery after the surgery. Thus, it is always better to get implants that are certified with international standards and for that, we are here at your service. Siora Surgicals Private Limited is one of the top orthopedic implant companies in the world. With more than 30 years of experience, the company has strengthened its roots in the industry and that has helped Siora maintain fruitful relationships with hundreds of global clients. We specialize in manufacturing and export of international standard quality Orthopaedic devices and Surgical Instruments to our clientele base situated in different countries. Amongst numerous manufacturers of orthopedic implants in India, we enjoy excellent market acceptance. We have a comprehensive portfolio of an extensive range of orthopedic devices and instruments. The company works under an advanced & quality system that conforms to ISO 13485:2016 standards and CE Certification. In a growing and competitive worldwide market of trauma implants, Siora Surgicals Pvt. Ltd. is cementing its roots as one of the Top Orthopedic Medical Device Companies, that are committed to supplying good quality and safe products consistently.

Orthopedic Implants Company in India

Being one of the most reliable trauma implant companies in India, Siora Surgicals is always admired to produce world-class products. The Orthopedic Implant & Instruments that Siora Surgicals manufactures are fabricated using medical standard titanium and stainless steel as per ISO standards. Plus, we are also known to provide OEM orthopedic implant services around the world. We have a huge product portfolio that includes implants required for the treatment of both long and short bone fractures. Being a trustworthy and experienced Orthopaedic Products Manufacturer, we always ensure the true quality of all our latest and existing products. Siora Surgicals is also praised for maintaining its position as a trustworthy supplier of an extensive range of trauma implants. We are also known to keep enough stock of implants to ensure timely delivery.

The packaging is processed in class 10,000 cleanrooms on special demand by our clients for ‘Ready to Use’ implants. Orthopedic Implants provided by Siora Surgicals are pre-sterilized with Gamma Irradiation. Our products have excellent market compliance. Our company structure has an industrial complex with an area of around 20,000 square meters that is present in Sonipat, Haryana, near Delhi, the Capital of India. Siora Surgicals is undoubtedly one of the best Orthopedic Supply Companies in Delhi, India.

Modern Machines & Facilities

As a quality-oriented orthopedic company, we manufacture all types of orthopaedic implants using advanced machines that include Sliding Head Turning Center, Multiple Axis VMC, CNC Wire Cutting, CNC deep Hole Drilling, and Mechanized Sharpening & Surface Finishing. We also have an ISO class 7 (10,000) cleanroom for packaging of products plus a microbiology laboratory for monitoring environmental conditions and bio-burden of finished orthopedic implants. SIORA’s trauma implants and instruments are praised globally by orthopedists for being of high quality and ensuring structural accuracy & effectiveness. This has crowned Siora Surgicals Pvt. Ltd. as one of the trusted orthopedic medical device companies in the world.

Locking RE – Construction Plate 3.5mm – Straight (Thickness – 3.5mm)

Send Enquiry
Return to Sub Category
Return to Main Category

This Plate is to be use in Pelvic Bone.
Indications: Fractures of Pelvic, Clavicle, Scapula & Distal Humerus Bones.

Categories: Helix Locking Plate System, Small Fragment Locking Plates & Screws

Description

Description

Following Screws are to be use with Above Plates:

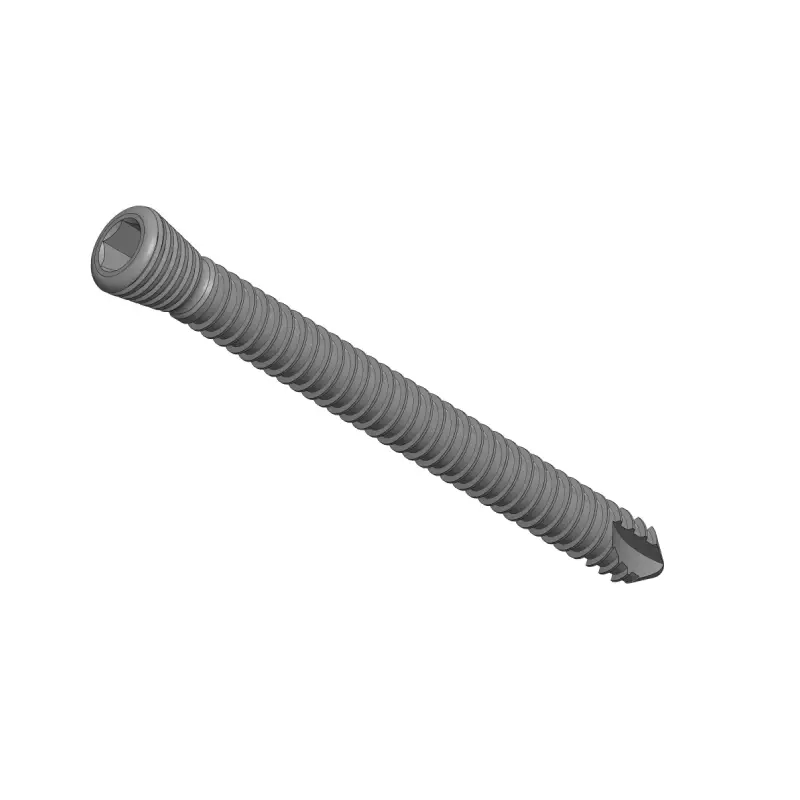

A) 3.5mm Locking Head Screw – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
102.310 to 102.380	10mm to 80mm	Ti.102.310 to Ti.102.380

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
102.410 to 102.480	10mm to 80mm	Ti.102.410 to Ti.102.480

B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
105.512 to 105.580	12mm to 80mm	Ti.105.512 to Ti.105.580

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
105.612 to 105.680	12mm to 80mm	Ti.105.612 to Ti.105.680

C) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
102.210 to 102.296	10mm to 100mm	Ti.102.210 to Ti.102.300

D) Cancellous Screw 4.0mm Dia. Short Thread

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
104.010 to 104.085	10mm to 85mm	Ti.104.010 to Ti.104.085

E) Cancellous Screw 4.0mm Dia. Full Thread

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
105.010 to 105.085	10mm to 85mm	Ti.105.010 to Ti.105.085

Following Instruments to be use with above Plate:

Cat No.	Description
260.281	Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110	LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121	Tap for 3.5mm Locking Head Screws
804.163	Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168	Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250	Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025	Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm
260.270	Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037	Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.040	Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.026	Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws)
301.025	Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws)
303.010	Small Depth Gauge
803.120	LCP Bending Iron for Re-Construction Plate (Use in Paris) for 3.5 & 4.5 LCP Plate
XP.301.081	Star Drive Screw Driver – 2.5mm Tip/T-15

Following Size of Locking RE – Construction Plate 3.5mm – Straight (Thickness – 3.5mm) are available in Stainless Steel & Titanium Material.

Cat No. (Stainless Steel)	Holes	Cat No. (Titanium)
144.405	5 Holes	Ti.144.405
144.406	6 Holes	Ti.144.406
144.407	7 Holes	Ti.144.407
144.408	8 Holes	Ti.144.408
144.409	9 Holes	Ti.144.409
144.410	10 Holes	Ti.144.410
144.412	12 Holes	Ti.144.412
144.414	14 Holes	Ti.144.414
144.416	16 Holes	Ti.144.416
144.418	18 Holes	Ti.144.418
144.420	20 Holes	Ti.144.420
144.422	22 Holes	Ti.144.422

Locking RE – Construction Plate 3.5mm – Straight (Thickness – 3.5mm)

This Plate is to be use in Pelvic Bone.

Indications: Fractures of Pelvic, Clavicle, Scapula & Distal Humerus Bones.

Description
