A Pedicle Screw System is a specialized spinal fixation implant used in fusion procedures to stabilize the vertebral column. Pedicle screws are inserted into the vertebral pedicles and connected with rods to provide rigid fixation. This construct helps restore spinal alignment, correct deformities, and promote solid bony fusion between adjacent vertebrae.
Pedicle screw systems are often used in combination with interbody cages (such as PLIF or TLIF cages) to provide immediate mechanical stability and support long-term fusion success. They are available in various diameters and lengths, with options for polyaxial, monoaxial, and reduction screws, offering versatility to accommodate different surgical requirements.
The PEDILUX™ R-LINE Pedicle Screw Fixation System by Siora Surgicals Pvt. Ltd. is a precision-engineered spinal fixation solution designed to stabilize the thoracic and lumbar spine in various spinal fusion procedures.
Manufactured from high-quality, biocompatible Titanium (Ti-6Al-4V ELI), the PEDILUX™ R-LINE system combines strength, durability, and excellent imaging compatibility. Its low-profile design (16 mm height, 9.6 mm width, and 13.5 mm round bar profile) minimizing soft tissue irritation while ensuring optimal implant performance.
The pedicle screws are available in diameters of 4.5 mm, 5.5 mm, 6.5 mm, and 7.5 mm, with lengths ranging from 25 mm to 120 mm in 5 mm increments. The system offers self-tapping screws, enabling efficient insertion and secure fixation within the vertebral pedicles, allowing surgeons to select the optimal construct for each patient’s anatomy and surgical requirements.
The R-LINE system also includes a comprehensive range of spinal fixation components such as cross-link connectors, iliac screws, lateral connectors, parallel connectors, domino connectors, lamina hooks, pedicle hooks, and staples. Rod options include 5.5 mm Titanium rods and CoCr rods, as well as tapered rods, providing enhanced construct stability and versatility across different surgical indications.
Designed for ease of application and reliable fixation, the PEDILUX™ R-LINE Pedicle Screw Fixation System helps restore spinal alignment, correct deformities, and promote solid bony fusion. Backed by stringent manufacturing standards, Siora Surgicals ensures consistent quality, dependable performance, and reliable clinical outcomes.

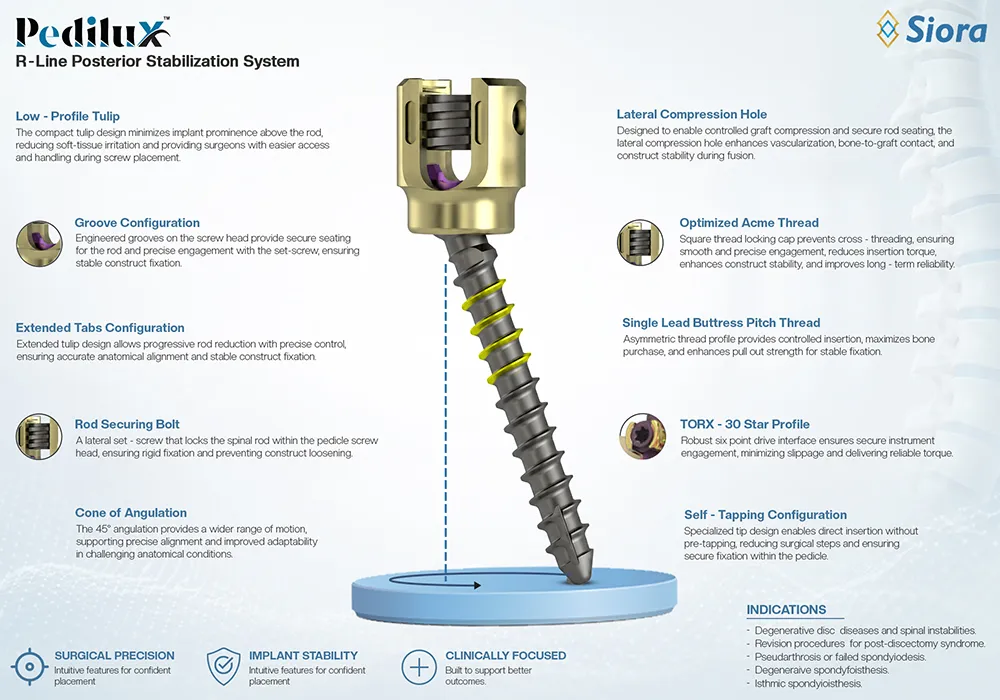

Core Features
1. Optimized Rod Seating & Fixation
2. Advanced Locking & Drive Interface
3. Self-Tapping Insertion Design
4. Wide Angulation Capability
R-LINE System-Specific Features
1. Low-Profile & Extended Tulip Design
2. Single-Lead Buttress Thread Design
3. Controlled Compression & Stability
The PEDILUX™ R-LINE Pedicle Screw Fixation System is indicated for stabilization of the thoracic and lumbar spine in various spinal fusion procedures, including:
1. Degenerative Lumbar Conditions (e.g., Degenerative Disc Disease, Spondylolisthesis)
2. Spinal Trauma (Thoracic and Lumbar Fractures)
3. Spinal Deformities (e.g., Scoliosis, Kyphosis)
4. Revision Procedures and Failed Previous Surgery
5. Pseudarthrosis or Tumor- and Infection-Related Instability

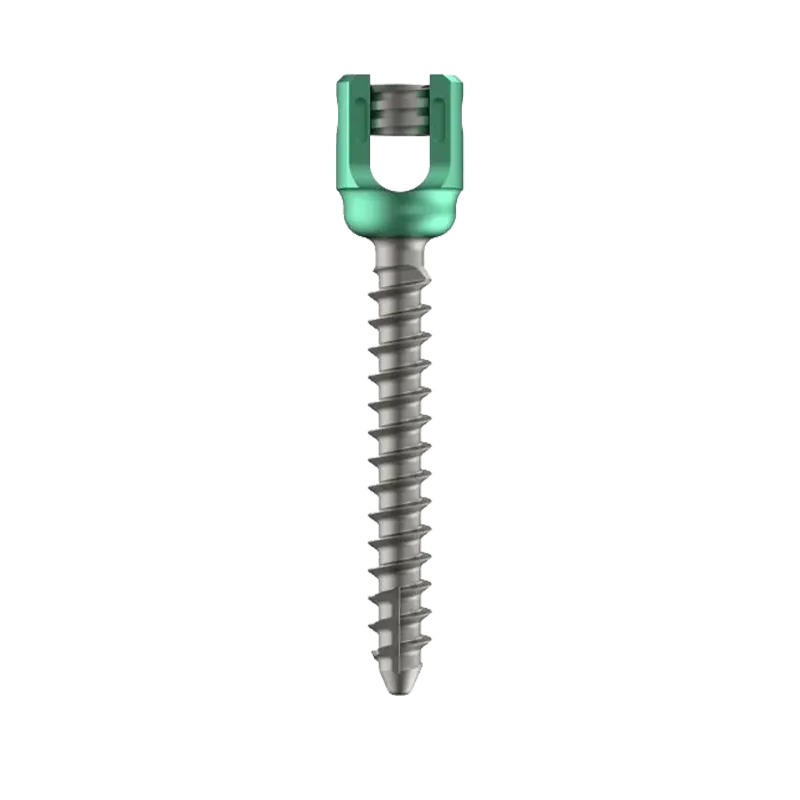

| Cat No. (Titanium) | Dia (mm) | Length (mm) |
| Ti.606.45.30 – Ti.606.45.50 | 4.5 | 30 -50 |
| Ti.606.55.30 – Ti.606.55.50 | 5.5 | 30 -50 |
| Ti.606.65.30 – Ti.606.65.50 | 6.5 | 30 -50 |
| Ti.606.75.30 – Ti.606.75.50 | 7.5 | 30 -50 |
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
| Ti.610.55.30 – Ti.610.55.50 | 5.5 | 30 -50 |
| Ti.610.65.30 – Ti.610.65.50 | 6.5 | 30 -50 |
| Ti.610.75.30 – Ti.610.75.50 | 7.5 | 30 -50 |
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
| Ti.607.45.30 – Ti.607.45.50 | 4.5 | 30 -50 |
| Ti.607.55.30 – Ti.607.55.50 | 5.5 | 30 -50 |
| Ti.607.65.30 – Ti.607.65.50 | 6.5 | 30 -50 |
| Ti.607.75.30 – Ti.607.75.50 | 7.5 | 30 -50 |
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
| Ti.640.55.30 – Ti.640.55.50 | 5.5 | 30 -50 |
| Ti.640.65.30 – Ti.640.65.50 | 6.5 | 30 -50 |
| Ti.640.75.30 – Ti.640.75.50 | 7.5 | 30 -50 |
The PEDILUX™ R‑LINE system is used to stabilize the thoracic and lumbar spine in spinal fusion procedures, helping restore spinal alignment, correct deformities, and promote solid bony fusion.
The system is manufactured from high‑quality, biocompatible Titanium (Ti‑6Al‑4V ELI) alloy, ensuring strength, durability, and excellent imaging compatibility. It is sterilized using gamma radiation (ISO 11137), ensuring residue‑free sterility in sealed packaging.
Pedicle screws are available in diameters of 4.5 mm to 7.5 mm and lengths from 25 mm to 120 mm in 5 mm increments. Rod options include 5.5 mm Titanium rods, CoCr rods, and tapered rods, providing versatility across different surgical indications.
Yes. Siora Surgicals offers OEM/ODM services, supports global distribution, and partners with distributors worldwide for spinal fixation solutions.
Siora Surgicals offers complete export support, including sterile processing, documentation, packaging, and reliable logistics coordination to ensure timely global delivery.
Siora provides technical support, product training, and clinical guidance to ensure proper usage and optimal outcomes.
