Acetabular Plate (Non Locking) - S.S.
Siora designs veterinary Non-Locking Plates to provide reliable fracture stabilization in small and large animals. Manufactured from high-quality implant-grade stainless steel, these plates support effective bone healing by enabling controlled compression between the plate and bone surface. Their low-profile design helps minimize soft tissue irritation while ensuring optimal anatomical fit. Available in multiple sizes and configurations, these non-locking veterinary bone plates are commonly used to fix long bone fractures, perform osteotomies, and support reconstructive orthopedic procedures. Precision-engineered for strength and durability, these implants help veterinarians achieve stable fixation and favorable clinical outcomes across a wide range of veterinary applications.

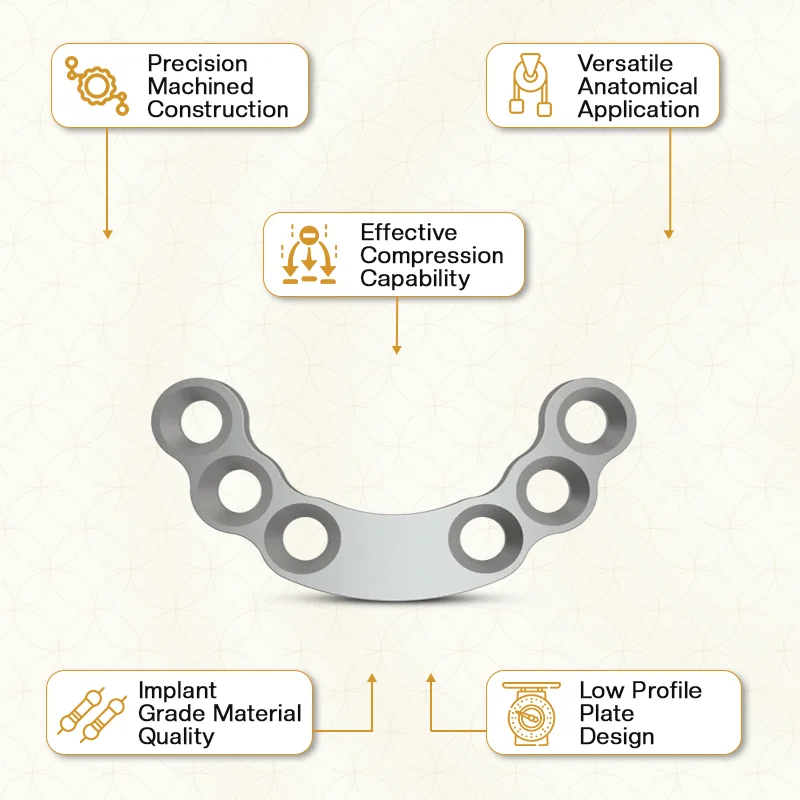

Manufactured with high dimensional accuracy to ensure consistent performance and dependable fracture fixation in veterinary orthopedic procedures.
Made from high-quality stainless steel that offers excellent mechanical strength, corrosion resistance, and long-term durability.
Designed to minimize soft tissue irritation while providing stable support to fractured bones during the healing process.
Works with conventional cortical screws to create compression between the plate and bone, promoting fracture stability and bone union.
Available in multiple sizes and configurations to address a wide range of fracture patterns in both small and large animals.
Used for the fixation of fractures involving the femur, tibia, humerus, radius, and ulna in companion animals and larger veterinary patients, providing stable support throughout the healing process.
Indicated for orthopedic osteotomies performed to correct limb deformities, angular limb discrepancies, or malalignment, helping maintain the desired bone position post-surgery.
Suitable for transverse, short oblique, and select simple fracture patterns where compression and rigid fixation are required to promote primary bone healing.
Utilized in reconstructive orthopedic procedures after traumatic injuries involving bone loss, instability, or structural compromise, restoring anatomical alignment and function.
Designed for use across a wide range of veterinary species, including dogs, cats, and selected large animals, offering dependable fixation for various orthopedic applications.
Explore our precisely engineered and internationally compliant range of non-locking veterinary plates for a wide range of species.

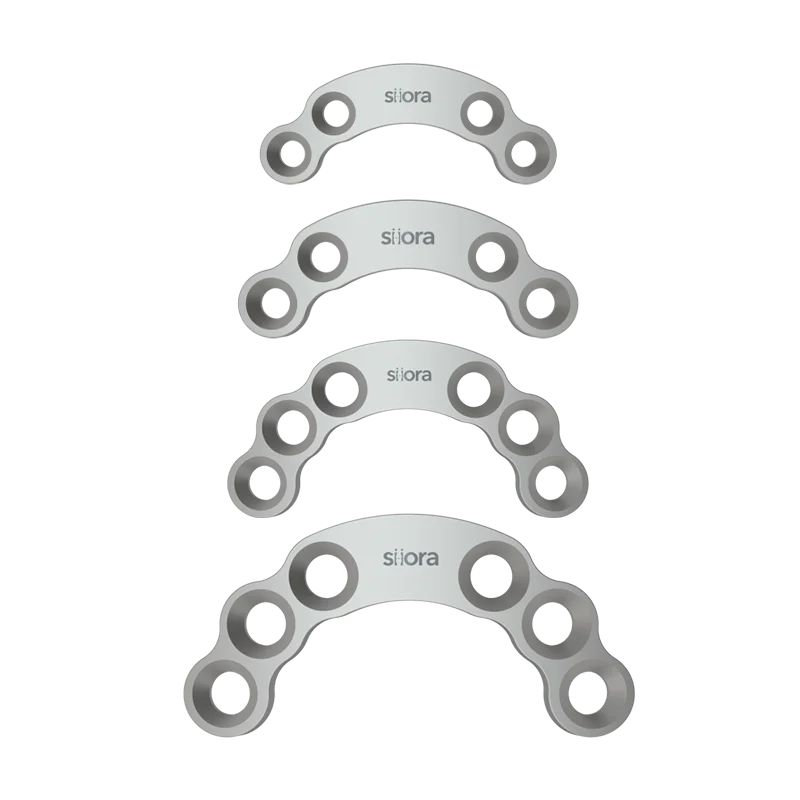

Designed for acetabular fracture fixation in small animals, this stainless steel plate offers anatomical contouring, stable support, and precise reconstruction of the hip joint structure.
| Cat No. (Stainless Steel) | Screw | Holes | Size |
| 136.502 – 136.504 | 2mm | 4 | 0 – 1 |
| 136.512 – 136.514 | 2.7mm | 6 | 2 – 3 |
| 136.520 – 136.522 | 3.5mm | 6 | 4 – 5 |

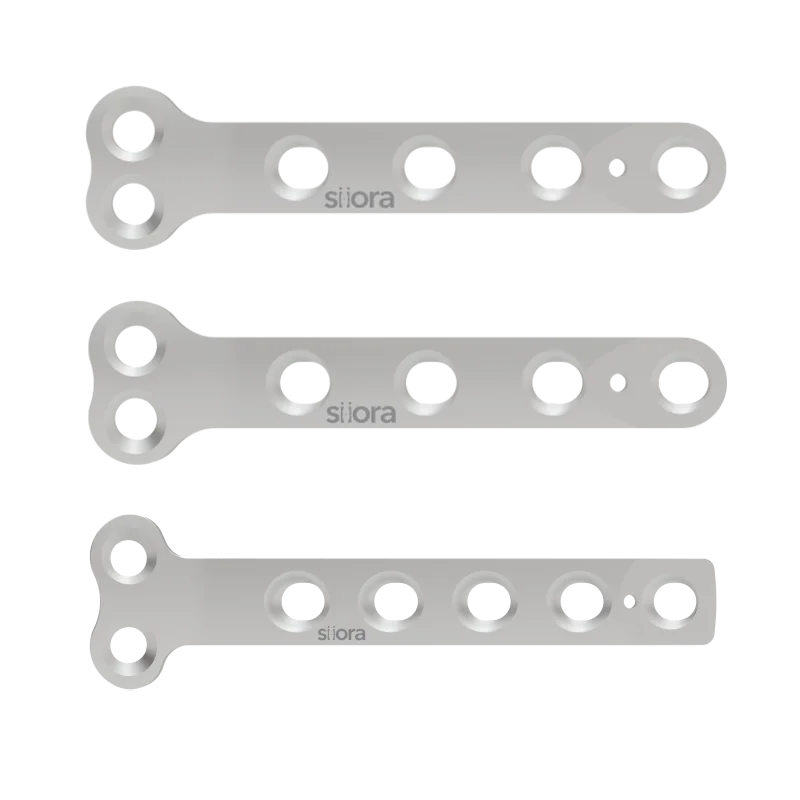

Engineered for partial carpal joint fusion procedures, this non-locking plate provides reliable stabilization, promotes proper alignment, and supports long-term functional limb recovery.
| Cat No. (Stainless Steel) | Screw | Length |
| 136.602 | 1.5/2.0mm | 35mm |
| 136.604 | 2.7/3.5mm | 65mm |
| 136.610 | 2.0/2.4/2.7mm | 50mm |

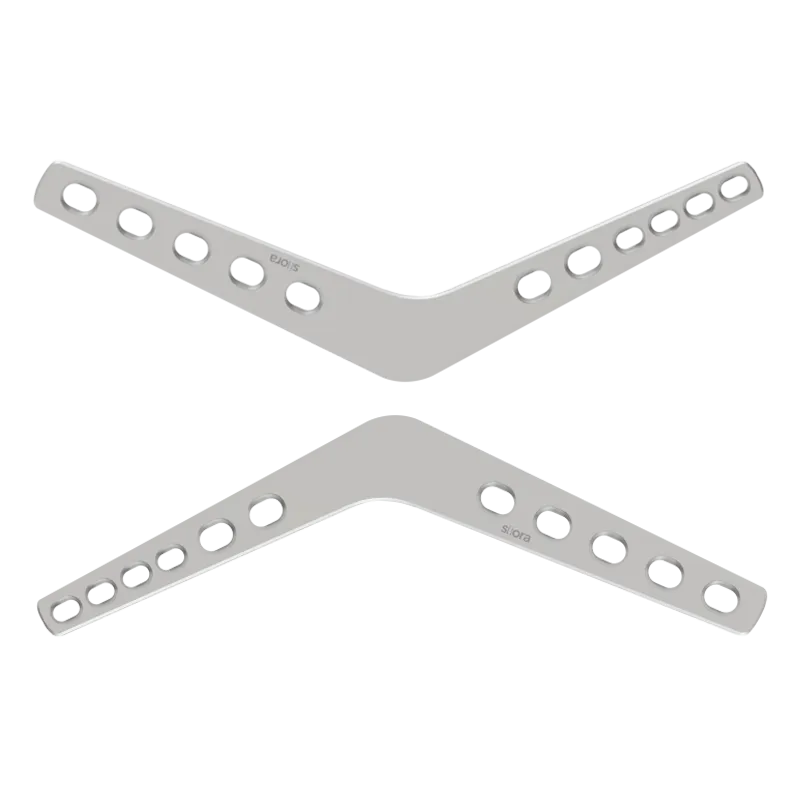

Specially developed for elbow arthrodesis, it maintains optimal joint positioning, delivers rigid fixation, and encourages successful fusion in complex cases.
| Cat No. (Left) | Screw | Cat No. (Right) |
| 136.702 | 2.7/3.5mm | 136.704 |

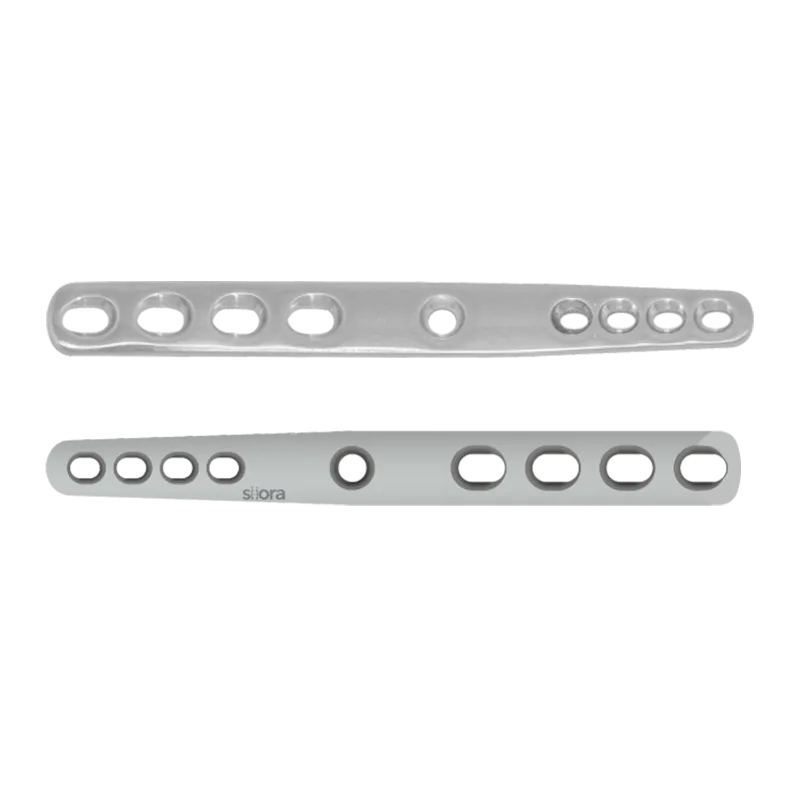

Featuring dynamic compression principles, the DCP plate stabilizes carpal arthrodesis procedures while supporting compression, alignment, and enhanced healing outcomes in veterinary patients.
| Cat No. (Stainless Steel) | Screw | Length |
| 136.802 | 2.0/2.0 mm | 53mm |
| 136.810 | 2.0/2.7 mm | 75mm Long |

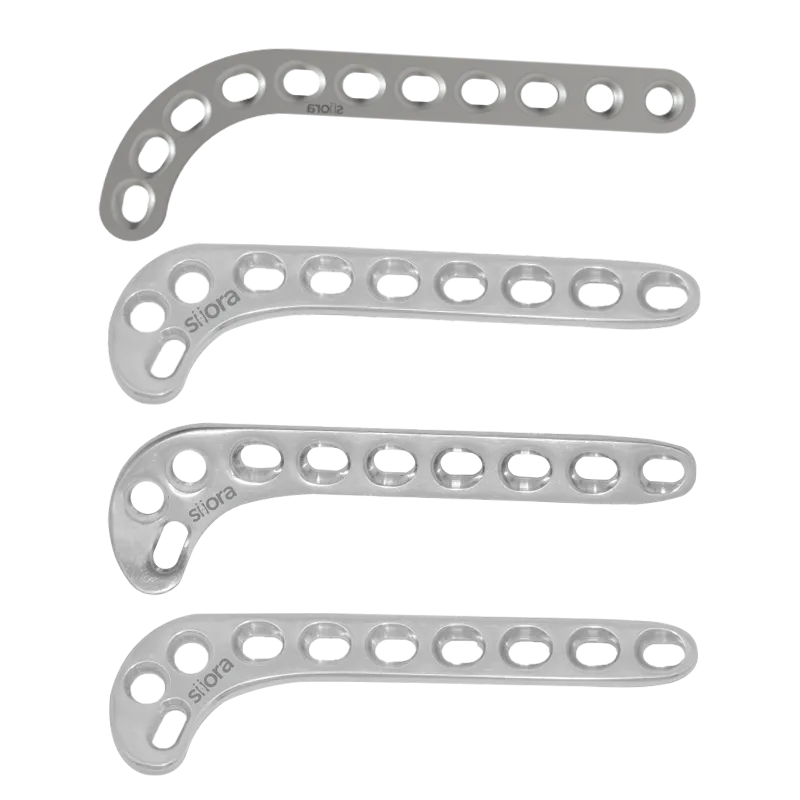

Designed for supracondylar fracture fixation, this plate offers dependable stabilization, anatomical conformity, and secure support for fractures near the distal bone segment.
| Cat No. (Right) | Screw | Length | Cat No. (Left) |
| 136.902 | 2.0mm | 50mm | 136.904 |
| 136.923 | 2.4mm | 62mm | 136.924 |
| 136.925 | 2.4mm | 76mm | 136.926 |
| 136.934 | 2.7mm | 69mm | 136.936 |

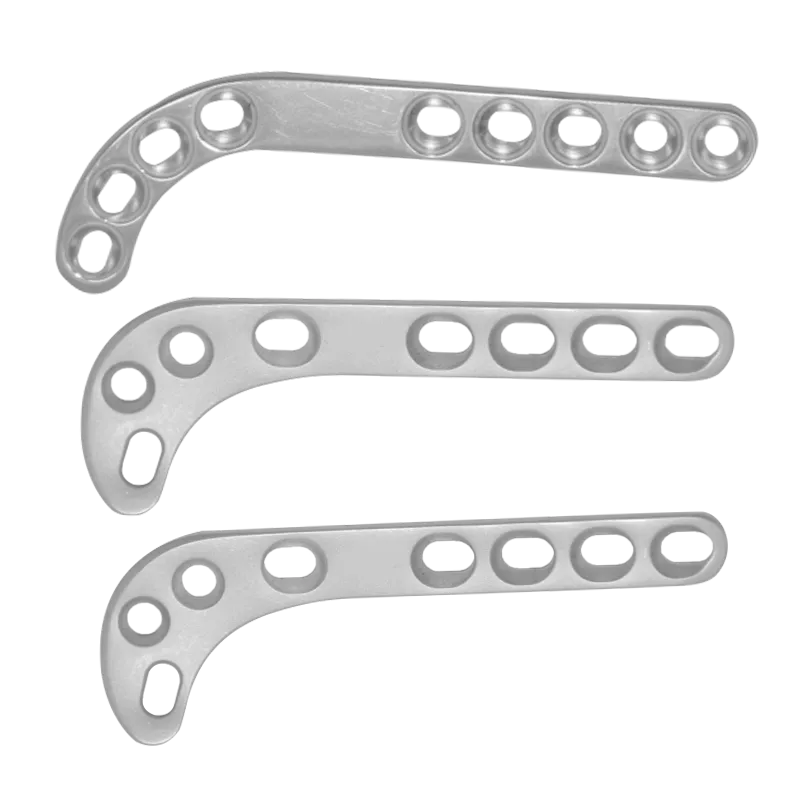

Ideal for corrective supracondylar osteotomy procedures, this veterinary osteotomy plate helps maintain surgical alignment, supports fixation stability, and promotes predictable bone healing.
| Cat No. (Right) | Screw | Length | Cat No. (Left) |
| 136.906 | 2.0mm | 50mm | 136.908 |
| 136.920 | 2.4mm | 55mm | 136.922 |
| 136.930 | 2.7mm | 60mm | 136.932 |

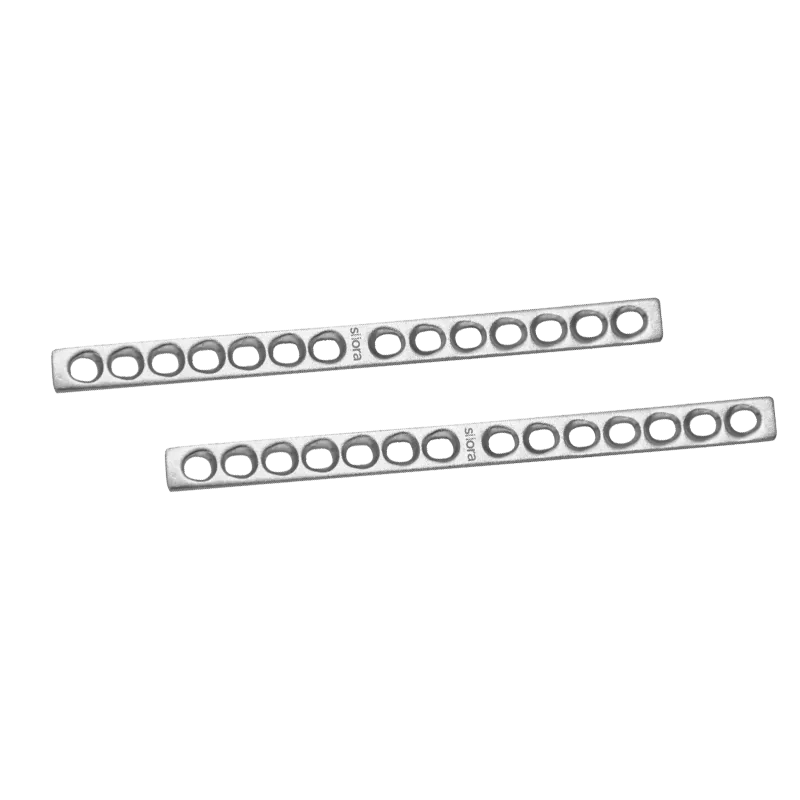

A versatile dynamic compression plate manufactured from stainless steel, designed to stabilize various fracture types while facilitating compression and encouraging efficient bone union.
| Cat No. (S.S.) | Screw | Holes |
| 121.014 | 1.5mm | 14 |
| 121.214 | 2.0mm | 14 |
Yes, Siora manufactures a complete range of Veterinary Non-Locking Plates, including Acetabular Plates, Arthrodesis Plates, DCP Plates, and Supracondylar Plates.
Yes, mixed-model bulk orders are available for distributors managing multiple veterinary orthopedic product categories.
Yes, both standard product ranges and customization support are available depending on distributor and market requirements.
Yes, our manufacturing process is designed to support consistent large-volume production and long-term distributor partnerships.
We provide export-ready packaging, product labeling, and customized packaging formats according to distributor requirements.
Yes, OEM branding and private-label manufacturing support are available for veterinary implant distributors and orthopedic brands.
Yes, distributors can request catalogs, technical specifications, and product details before placing orders. Contact us now!
